REMOVING/REFITTING (to '97 versions)

REMOVING/REFITTING (to '97 versions)

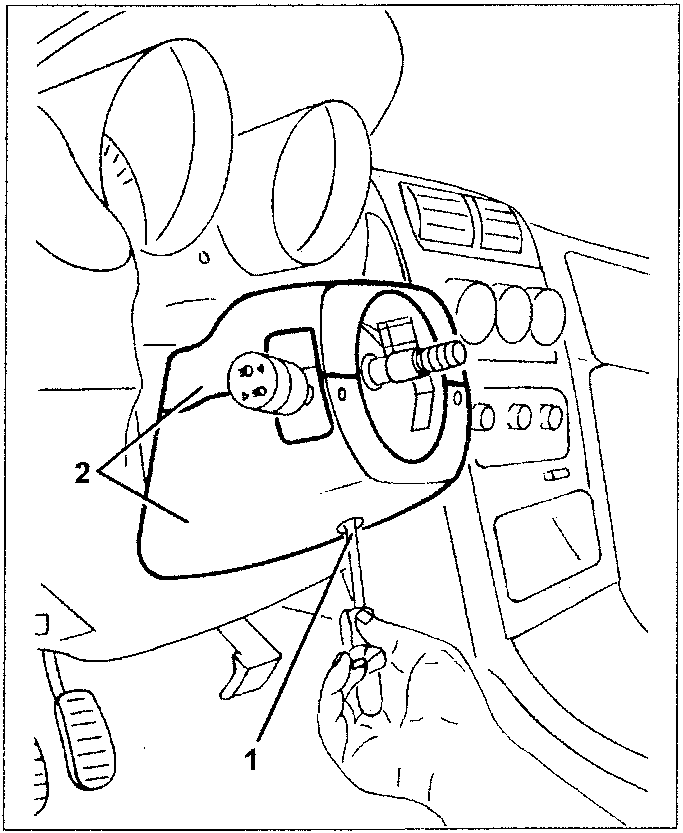

– Remove the steering wheel (see specific paragraph).

1. Slacken from below the screws fastening the steering column cover halves.
2. Remove the steering column cover halves.

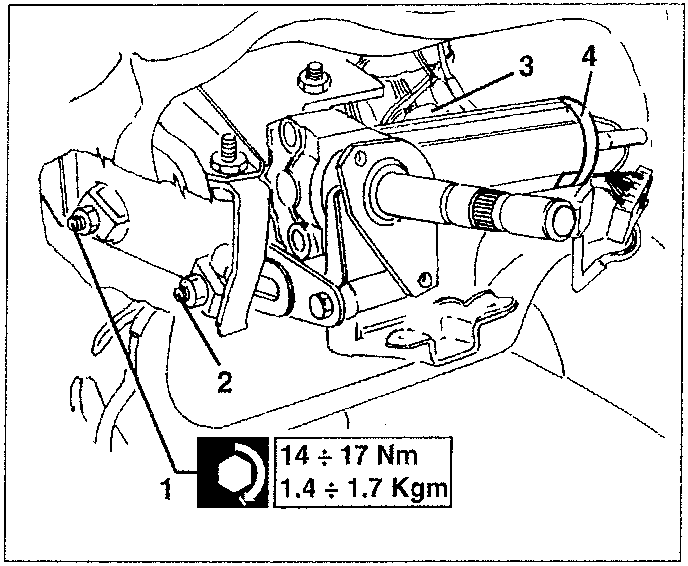

1. Remove the steering column lever unit (see GROUP 55).
2. Remove the fusebox cover from the dashboard lower panel (see GROUP 70).
3. Slacken and remove the bolt of the lower slotted bracket for axial steering column adjustment.
4. Slacken the nut of the upper bracket.
5. Disconnect the connection of the ignition switch.
6. Withdraw the aerial of the "ALFA ROMEO CODE" system.

14 ÷ 17 Nm
1.4 ÷ 1.7 Kgm

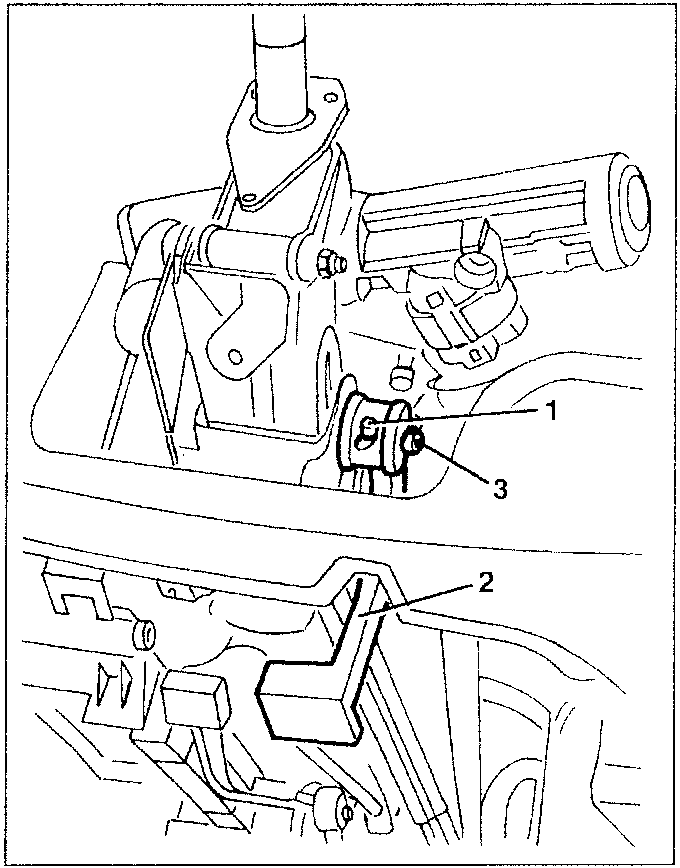

1. Withdraw the retainer pin.
2. Withdraw the steering wheel adjustment lever.
3. Remove the pin from the upper slotted bracket.

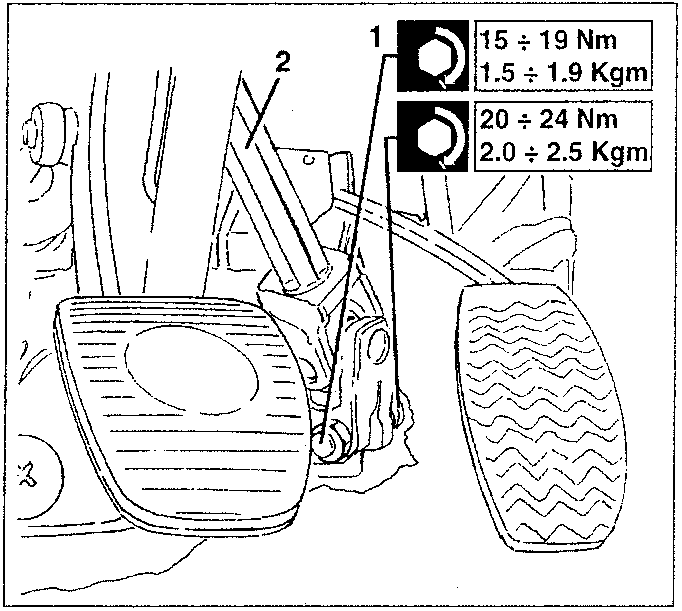

1. Slacken the bolt fastening the lower cardan joint to the steering box shaft.
2. Remove the complete steering column.

15 ÷ 19 Nm
1.5 ÷ 1.9 Kgm

20 ÷ 24 Nm
2.0 ÷ 2.5 Kgm
