Steering lock

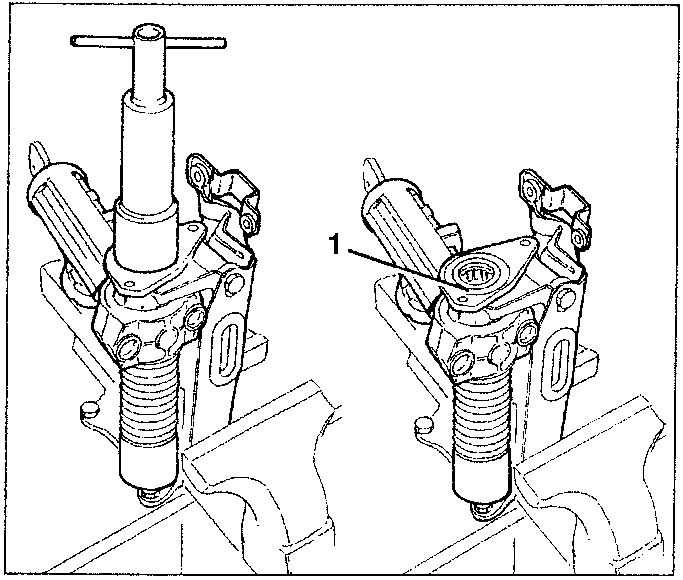

1. If necessary, using a suitable puller tool, remove the steering column upper bearing.

Re-assemble reversing the sequence followed for dis-assembly.

STEERING LOCK

REMOVING/REFITTING

• Insert the key in the ignition switch and check that the steering wheel is released.
• Move the steering wheel as near as possible to the driver and lock the steering column in this position.
• Disconnect the battery.

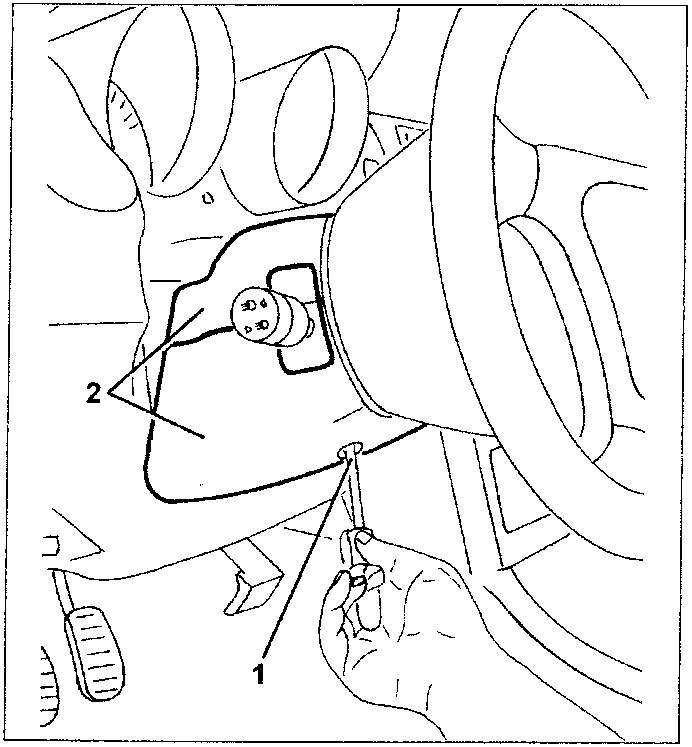

1. Slacken from below the screws fastening the steering column half covers.
2. Remove the cover halves.

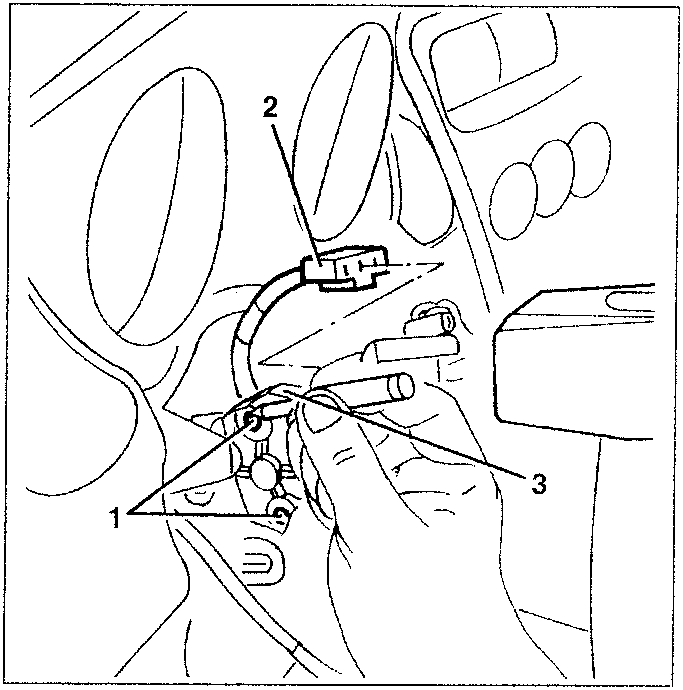

1. Using a punch, slacken the two safety screws and remove the collar.
2. Disconnect the steering lock electrical connection and remove the aerial of the "ALFA ROMEO CODE" system.
3. Remove the steering lock.

When refitting the steering lock, preverse the procedure followed for removal. Fasten the steering lock with the special safety screws supplied as spares, tightened until the head breaks.
