Alfa Romeo GTV and Spider (916) Factory Service Manual (1995-2000)09 · 41 Steering
09 · Steering & suspension

REMOVAL/REFITTING ('98 versions)

Make
Alfa Romeo
Model
GTV / Spider GTV and Spider (916) Factory Service Manual
Year
1995–2000
Section
Steering control › REMOVAL/REFITTING ('98 versions)
41 SteeringREMOVAL/REFITTING ('98 versions) · page 1 of 2
  1. If necessary, slacken the four bolts connecting the steering column support.
  2. Retrieve the steering column support.
  3. Slacken the lower nut and remove the reaction rod.

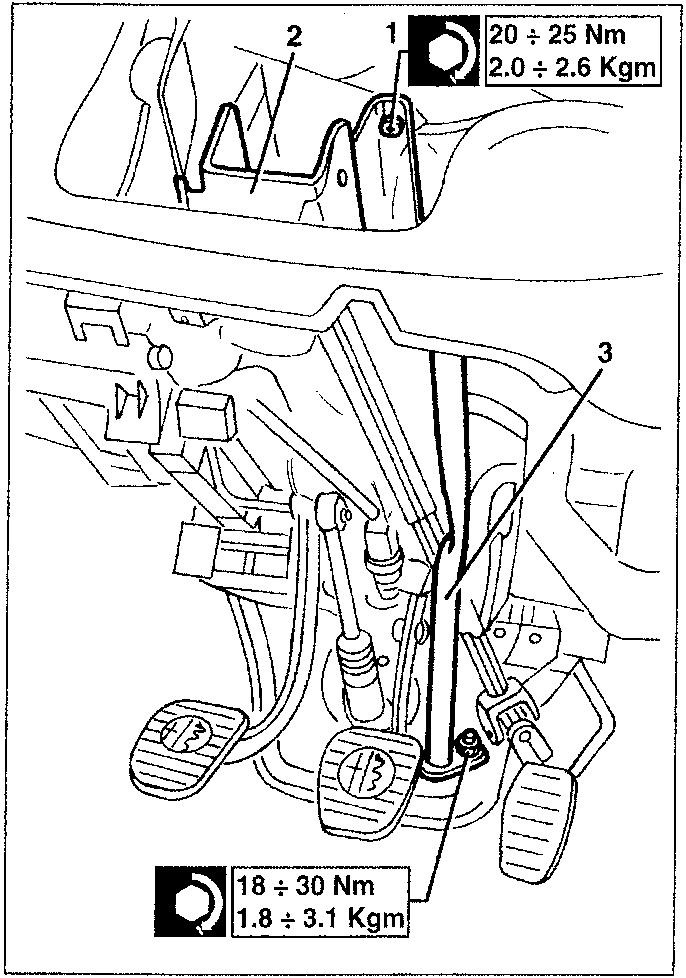

Steering column support removal diagram showing bolts 1 and 2, and reaction rod 3 with torque values 20÷25 Nm / 2.0÷2.6 Kgm and 18÷30 Nm / 1.8÷3.1 Kgm

20 ÷ 25 Nm
2.0 ÷ 2.6 kgm

Refit reversing the sequence followed for removal and observing the following instructions.

  • Check the steering wheel adjustment device as follows:
    1. Move the lever to the locked position.
    2. Screw the nut and tighten it to the specified torque.
    3. Move the lever to the release position.
    4. Check that steering column adjustment takes place correctly.
  • Move the lever back to the locked position.

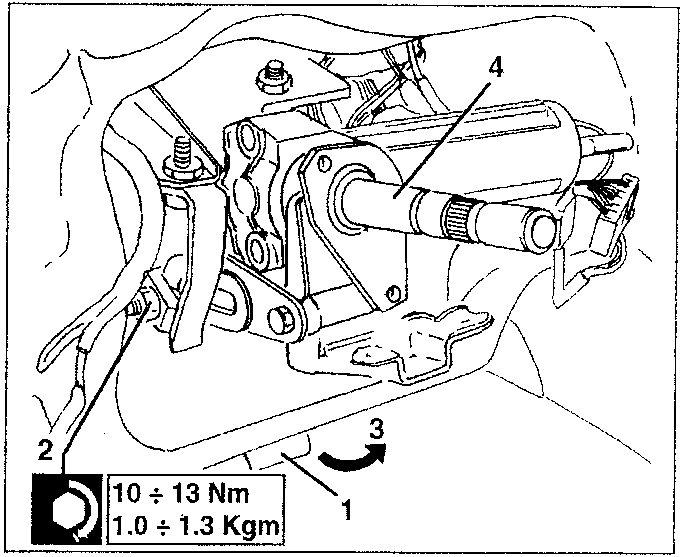

Steering control removal diagram showing components 1, 2, 3, and 4 with torque values 10÷13 Nm / 1.0÷1.3 Kgm

REMOVAL/REFITTING ('98 versions)

– Remove the steering wheel (see specific paragraph).

  1. Loosen the steering column half casings lower side fastening screws.
  2. Take the half casings.

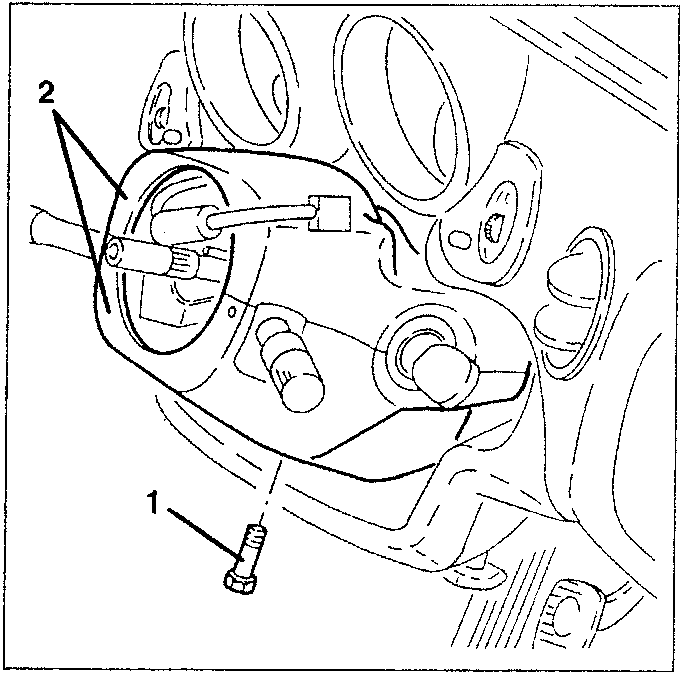

Steering column stalk assembly removal diagram showing components 1 and 2
  • Remove the steering column stalk assembly (see ASSEMBLY 55).
  • Remove the valve guard from the panel under the dashboard (see ASSEMBLY 70).
    1. Loosen the screws and remove the panel under the dashboard.
