Alfa Romeo GTV and Spider (916) Factory Service Manual (1995-2000)09 · 41 Steering
09 · Steering & suspension

REMOVAL/REFITTING ('98 versions) (page 2 of 2)

Make
Alfa Romeo
Model
GTV / Spider GTV and Spider (916) Factory Service Manual
Year
1995–2000
Section
Steering control
41 SteeringREMOVAL/REFITTING ('98 versions) · page 2 of 2

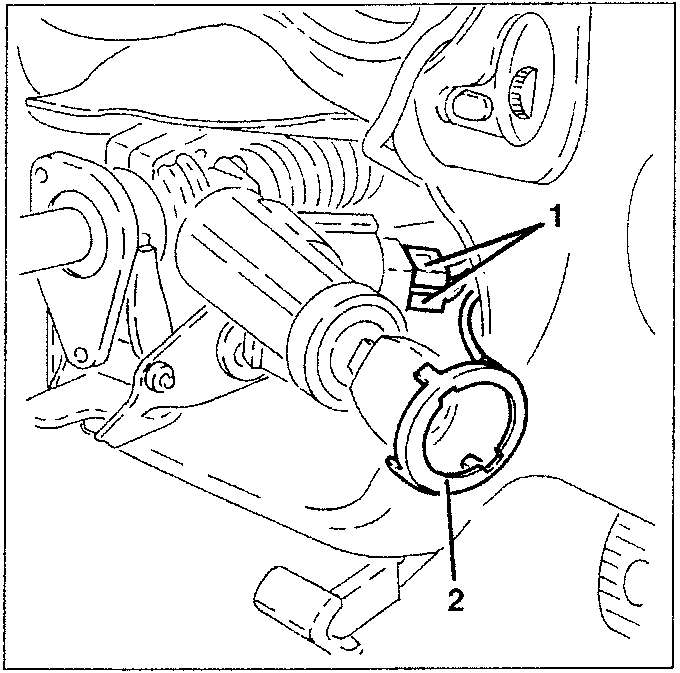

Steering column with ignition switch electrical connections and Alfa Romeo CODE system aerial
  1. Disconnect the ignition switch electrical connections.
  2. Remove the Alfa Romeo CODE system aerial.

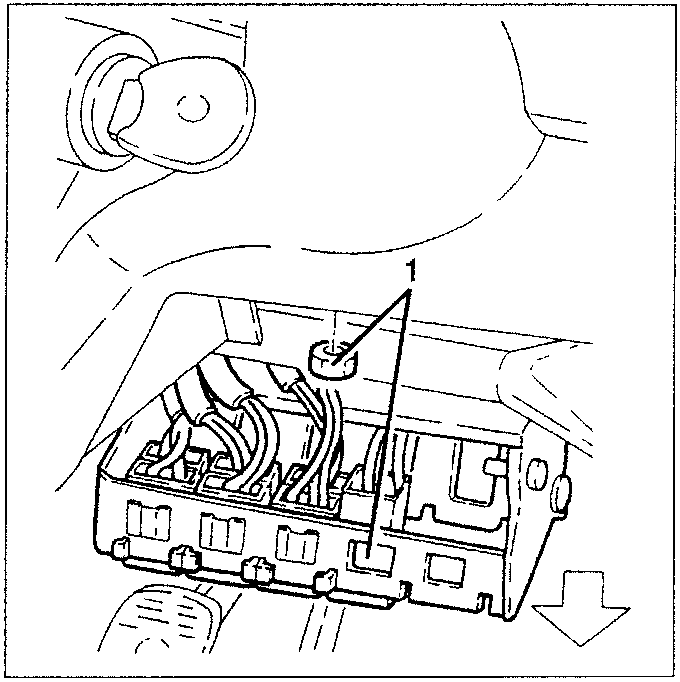

Fuse bracket with fastening nut and fuse bracket
  1. Loosen the fastening nut and lower the fuse bracket.
Steering wheel adjustment lever and pin removal
  1. Loosen the nut and remove the steering wheel adjustment lever and pin.
Steering column fastening bolt, lower CV joint bolt, and steering column extraction
  1. Loosen the steering column fastening bolt from the bracket.
  2. Loosen the bolt fastening the lower CV joint to the steering unit pinion.
  3. Extract the complete steering column.
