41 SteeringDis-assembly/reassembly

DIS-ASSEMBLY/REASSEMBLY

  1. Clamp the steering column in a vice.
  2. Using a resin hammer, remove the steering column shaft.

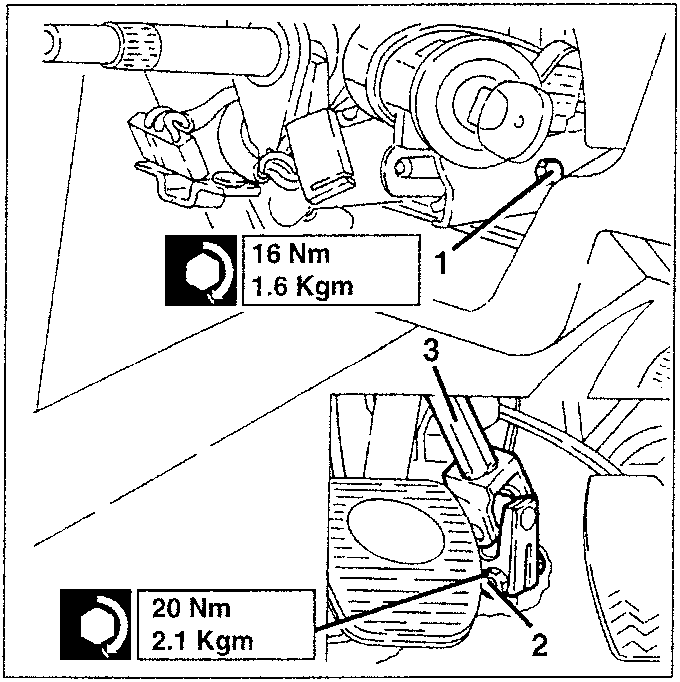

Steering column with torque specifications shown

16 Nm
1.6 Kgm

20 Nm
2.1 Kgm

  • Check the steering wheel adjustment device as follows:
  1. Move the lever to the locked position.
  2. Screw the nut and tighten it to the specified torque.
  3. Move the lever to the release position.
  4. Check that steering column adjustment takes place correctly.
  • Move the lever back to the locked position.

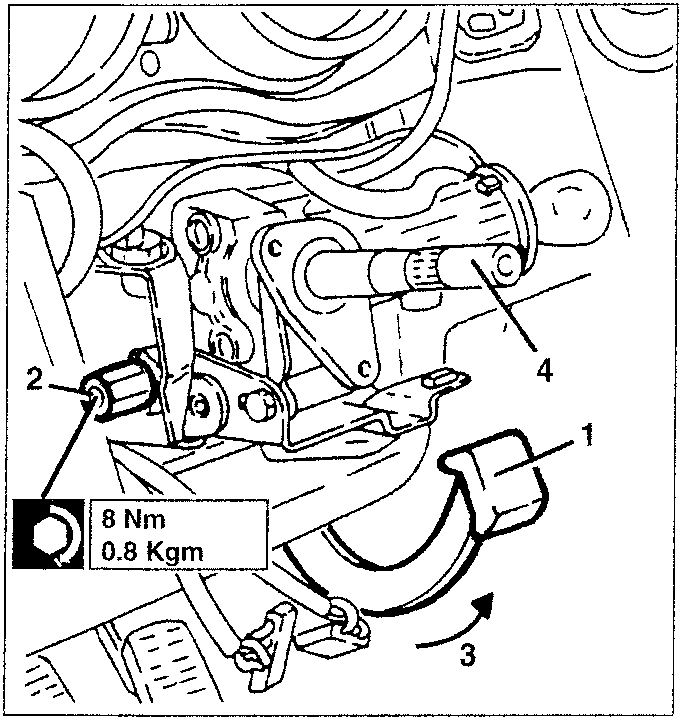

Steering column components with torque specifications shown

8 Nm
0.8 Kgm

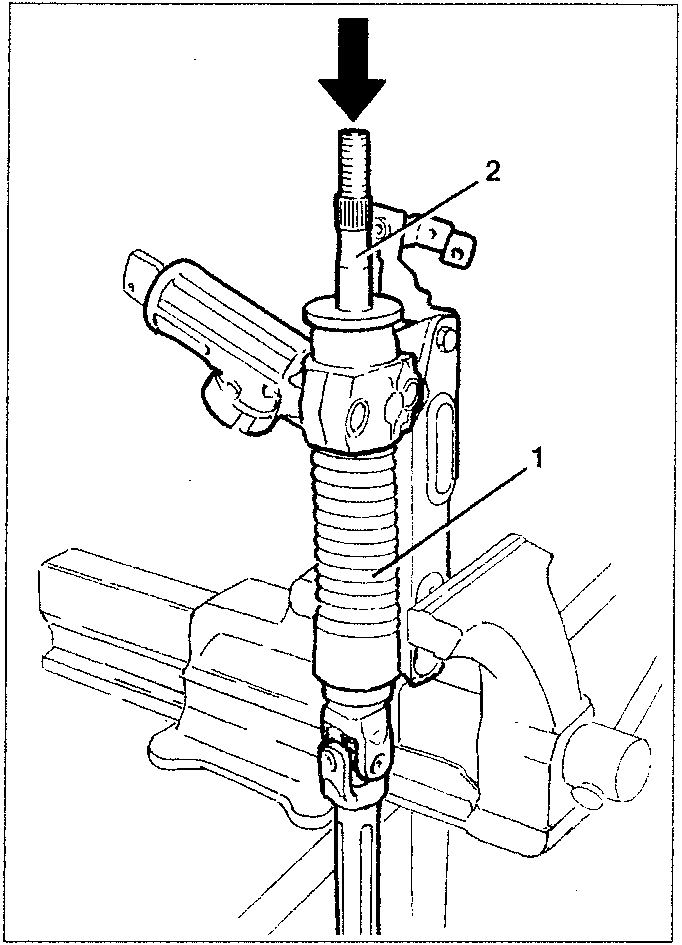

Steering column clamped in a vice with a resin hammer applied
