44 Suspension and wheelsDis-assembly

DIS-ASSEMBLY

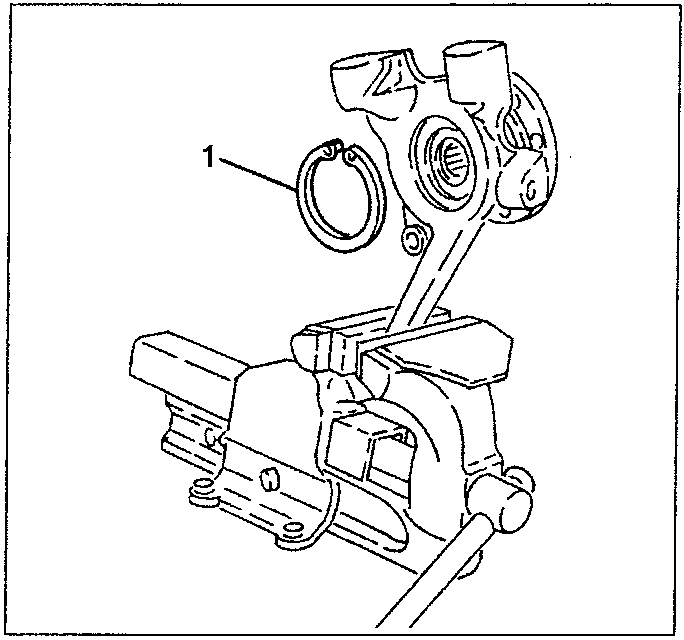

  1. Clamp the upright/wheel hub assembly in a vice and remove the flexible hub retainer ring.
Upright/wheel hub assembly clamped in a vice with flexible hub retainer ring removed

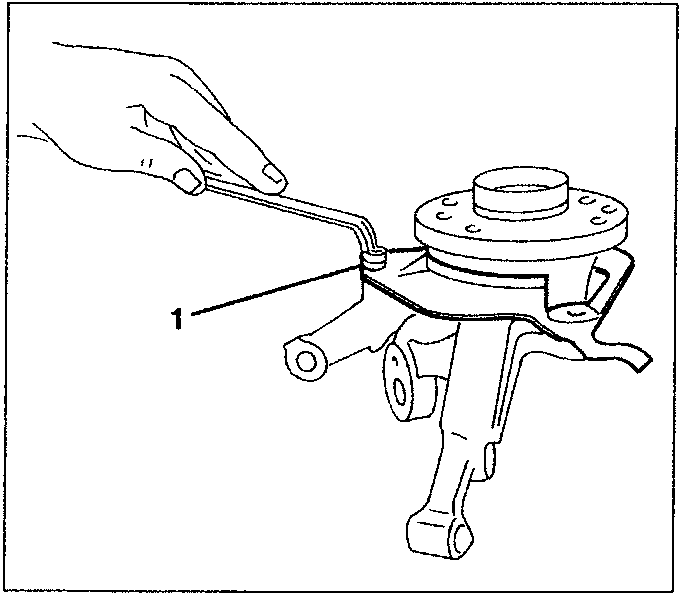

  1. Slacken the screw fastening the brake disk protection.
Hand slackening the screw fastening the brake disk protection

DIS-ASSEMBLY

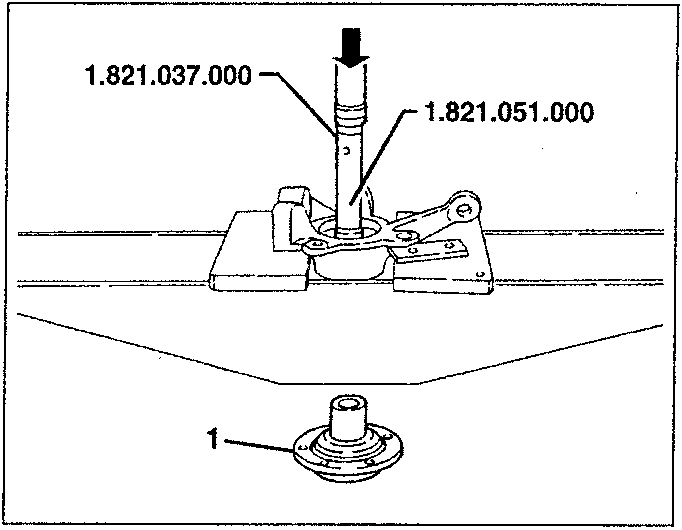

  1. Working under the press, withdraw the wheel hub from the upright using:
    • (for 4-cylinder only) puller tool no. 1.821.051.000
    • (only for 6-cylinder) puller tool no. 1.821.037.000
Wheel hub being withdrawn from the upright using puller tools 1.821.037.000 and 1.821.051.000

DIS-ASSEMBLY

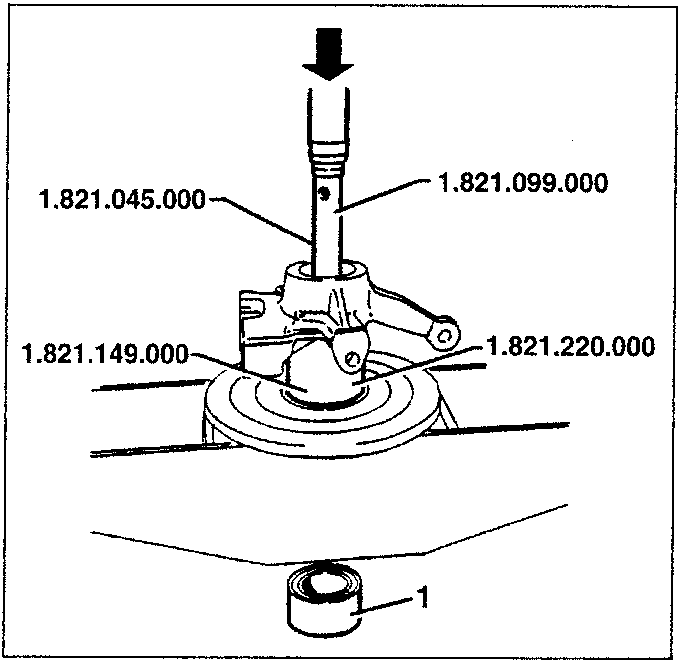

  1. Working under the press, remove the outer bearing ring from the upright using:
    • (for 4-cylinder only) support no. 1.821.149.000 and puller tool no. 1.821.045.000
    • (only for 6-cylinder) support 1.821.220.000 and puller tool no. 1.821.099.000.
Outer bearing ring being removed from the upright using support tools 1.821.149.000, 1.821.220.000 and puller tool 1.821.099.000
