44 Suspension and wheelsDismantling

DISMANTLING

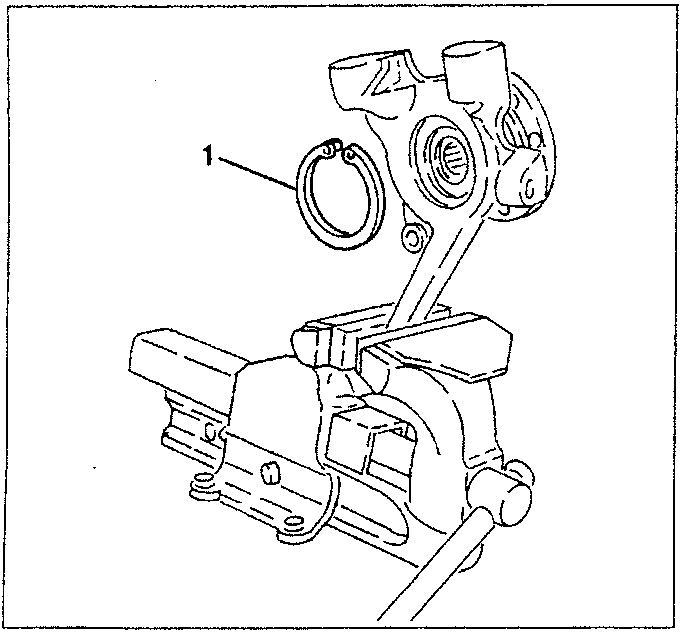

  1. Tighten the steering knuckle/wheel hub assembly in a vice and remove the hub retaining circlip.
Steering knuckle/hub assembly with retaining circlip

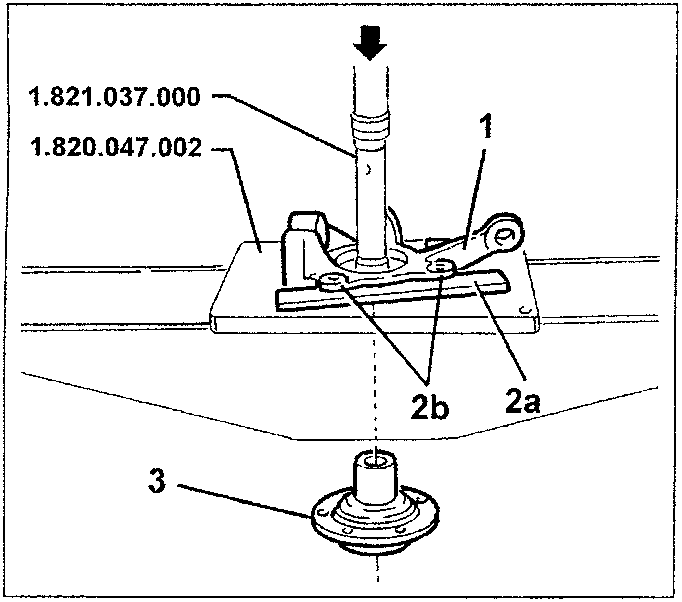

  1. Position the steering knuckle/hub assembly on the press using plate N° 1.820.047.002.
  2. Fit a suitable shim (2a), under the fixing tabs (2b), in order to ensure that the steering knuckle is in a flat position.
  3. Working on the press, remove the wheel hub from the steering knuckle using extractor N° 1.821.037.000.
Steering knuckle/hub assembly on press with shim and extractor

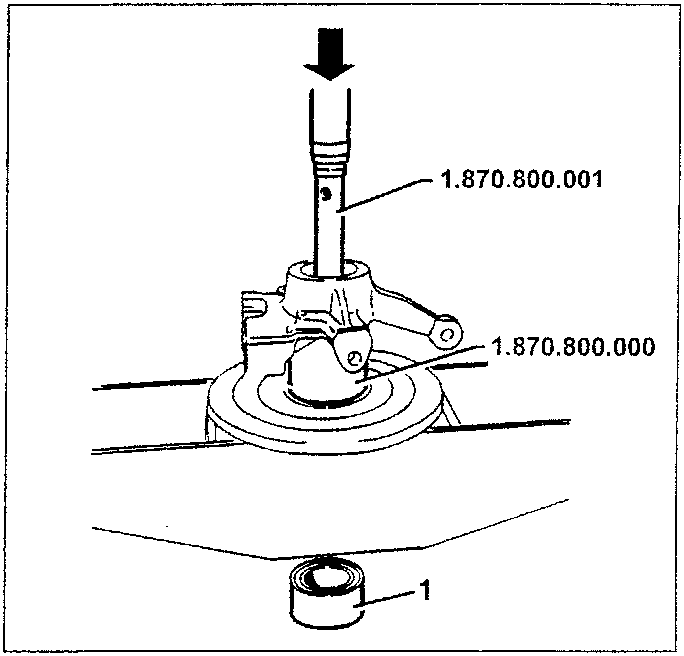

  1. Working on the press, extract the bearing outer race from the steering knuckle using support N° 1.870.800.000 and extractor N° 1.870.800.001.
Wheel hub with dust seal and extractor

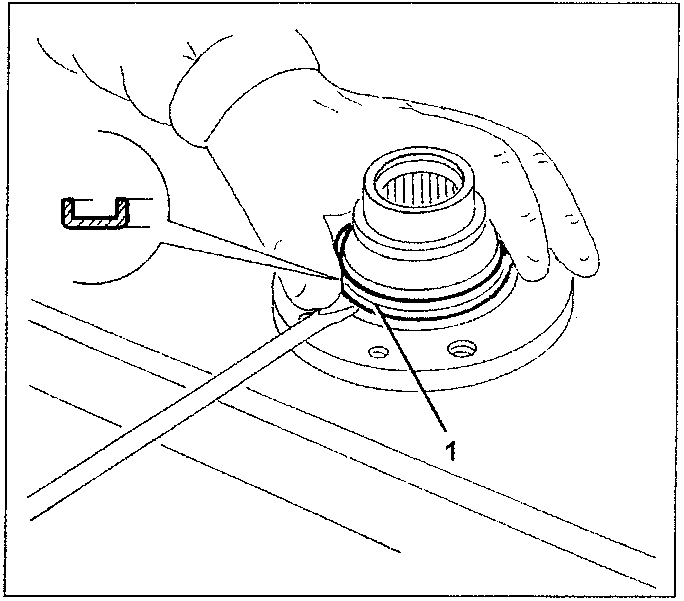

  1. Using a screwdriver, remove the dust seal from the wheel hub.
Hand using chisel to remove part from wheel hub

WARNING: suitable protective clothing (protective goggles) must be worn for the next operation involving the use of a chisel.
