44 Suspension and wheelsReassembly

REASSEMBLY

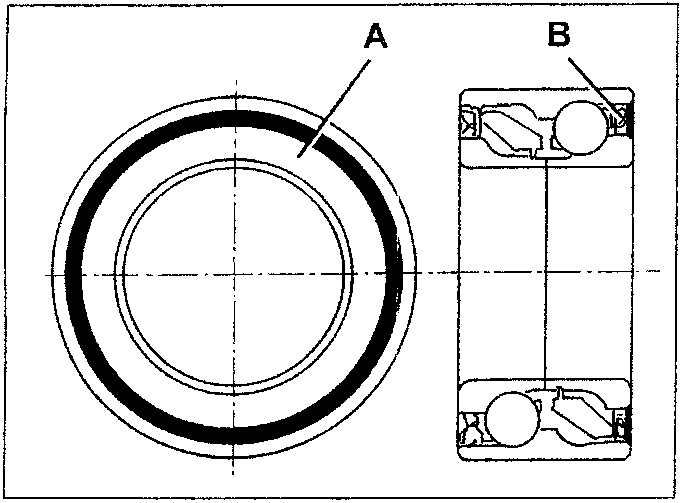

WARNING: For fitting bearing (A) with multi-pola magnetic codifier (B)

  • Remove the plastic protection for the magnetic codifier (B) (black) just before fitting the bearing.
  • The bearing should be fitted with the magnetic codifier facing towards the ABS sensor.
  • Avoid any impacts to the magnetic codifier.
  • Do not get the surface of the magnetic codifier dirty.
  • Avoid any contact between the magnetic codifier and magnetic sources.
  • At the end of the magnetic codifier fitting operations, check that it is clean, if not clean it with a clean cloth.
Diagram showing bearing (A) and magnetic codifier (B)

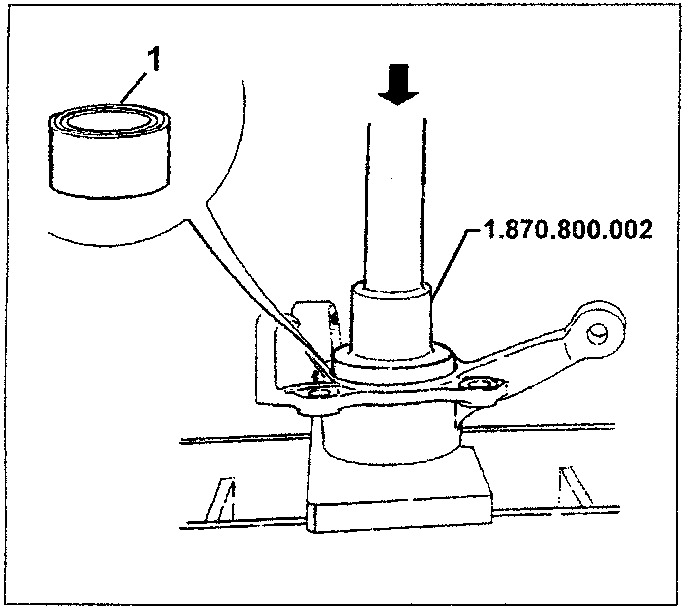

  1. Working on the press and using tool N° 1.870.800.002, fit the bearing on the steering knuckle.
Diagram showing tool 1.870.800.002 pressing bearing onto steering knuckle

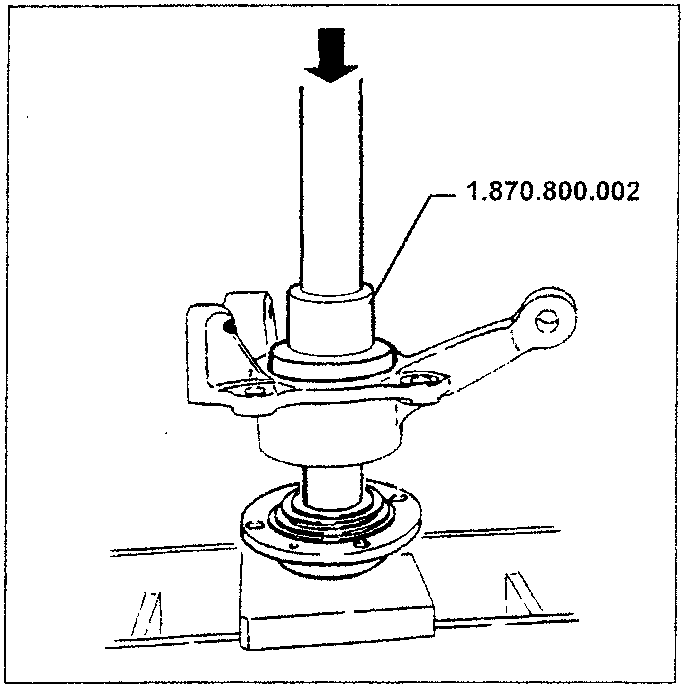

  1. Working on the press and using tool N° 1.870.800.002, fit the hub on the steering knuckle.
Diagram showing tool 1.870.800.002 pressing hub onto steering knuckle

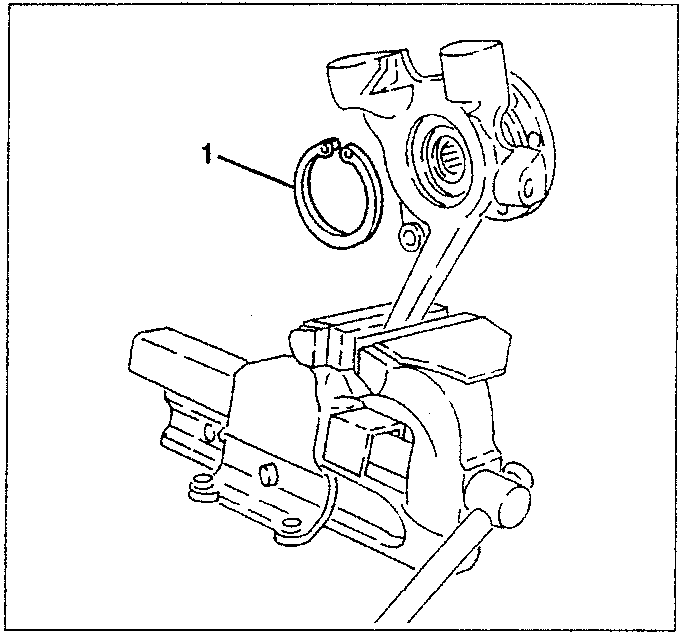

  1. Fit the bearing retaining circlip in the housing in the steering knuckle.
Diagram showing circlip 1 fitted into steering knuckle housing
