70 BodyworkBonnet closing device

BONNET CLOSING DEVICE

REMOVAL/REFITTING

There are two bonnet closing pins on the front of the bonnet itself.

One of the pins supports the safety device with release catch.

  1. Slacken the three screws
  2. Remove the complete bracket.

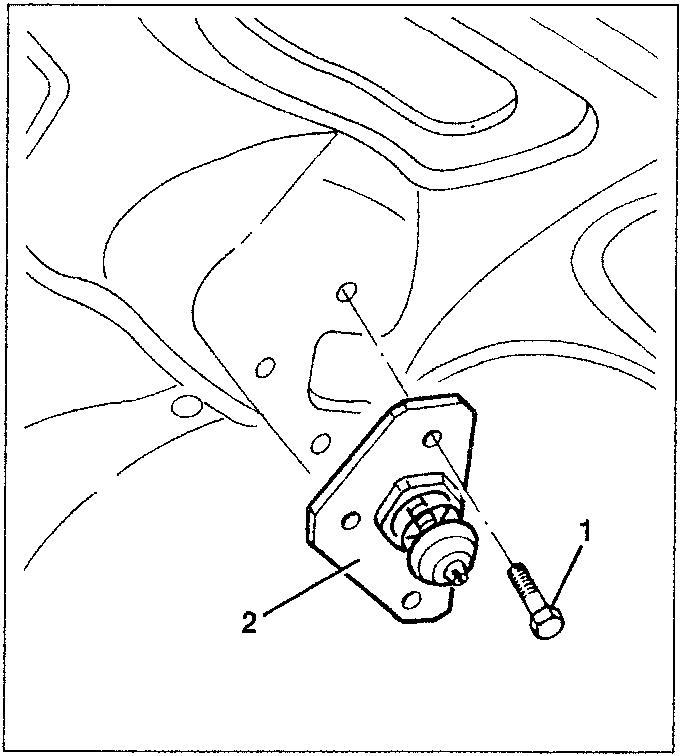

Bonnet closing device removal diagram showing a bracket with two pins and a screw.

Refit reversing the sequence followed for removal. Adjust the position of the bonnet (see specific paragraph).

BONNET INNER COVER

REMOVAL/REFITTING

  1. Using tool 1.823.015.000 remove the plastic nails fastening the inner cover.
  2. Remove the inner cover.

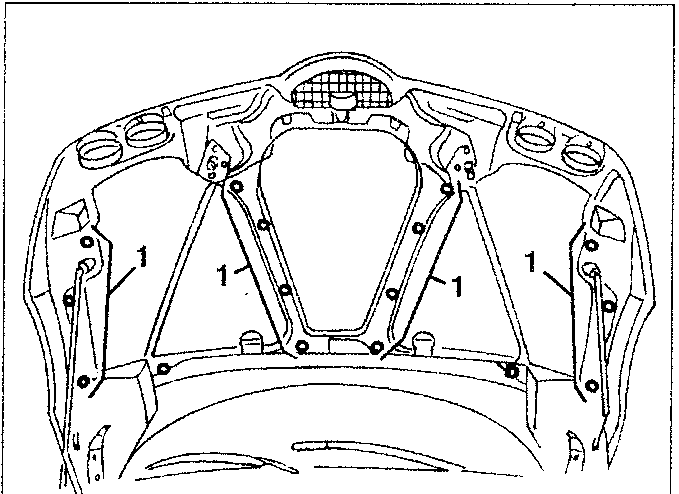

Bonnet inner cover showing plastic nails and mounting points.

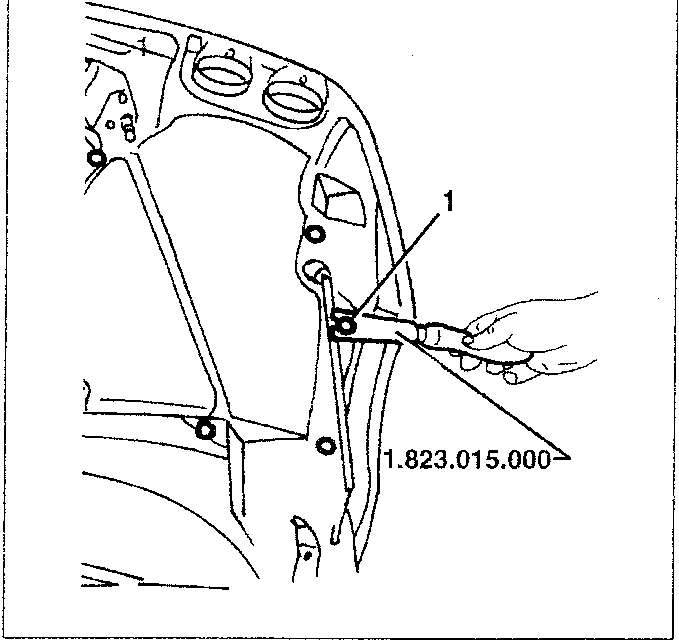

Hand using tool 1.823.015.000 to remove a plastic nail from the bonnet inner cover.

Refit the inner cover reversing the sequence followed for removal.
