70 BodyworkShield

SHIELD

REMOVAL/REFITTING

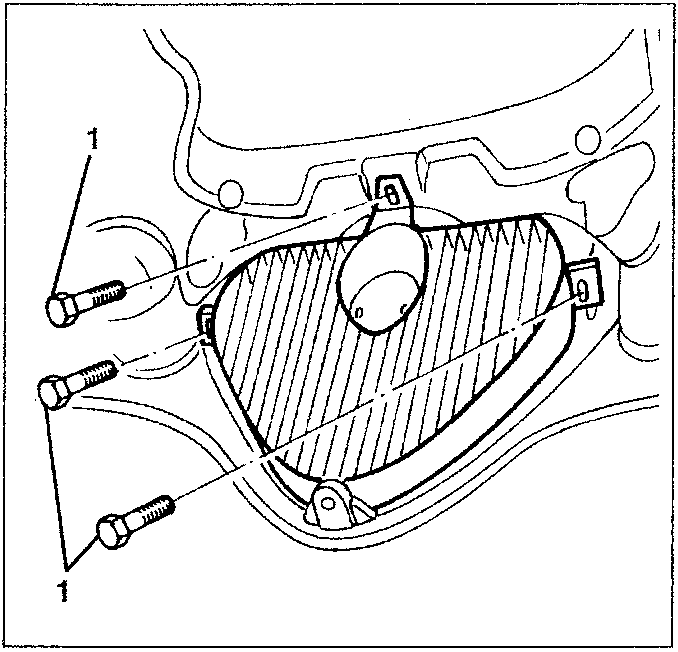

  1. Working from inside, slacken the three screws.
  2. Remove the shield, from the outside.
Diagram showing three screws (labeled 1) securing a shield to a car's front panel.

Refit reversing the sequence followed for removal.

FRONT TRADEMARK

REPLACEMENT

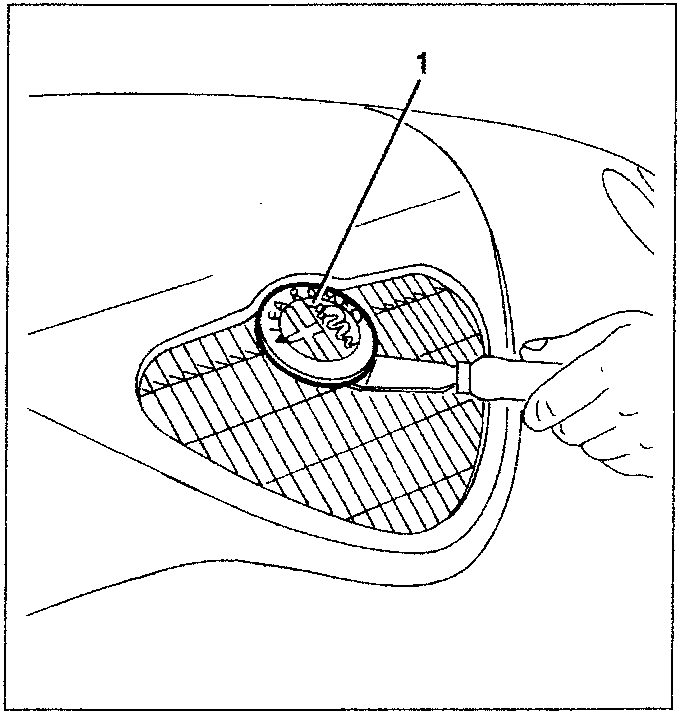

  1. Using tool 1.823.014.000 remove the trademark.
Diagram showing a hand using a tool (labeled 1) to remove a circular emblem from a car's front panel.

BONNET OPENING CONTROL CABLE

REPLACEMENT

  1. Working from the engine compartment, slacken the end bushing of the cable.
  2. Withdraw the cable from the eyelet of the locking lever.
Diagram showing a bonnet opening control cable (labeled 1) and its connection point (labeled 2) to a locking lever in the engine compartment.
