Alfa Romeo GTV and Spider (916) Factory Service Manual (1995-2000)15 · 70 Bodywork
15 · Body & interior

Adjustment

Make
Alfa Romeo
Model
GTV / Spider GTV and Spider (916) Factory Service Manual
Year
1995–2000
Section
Bonnet › Adjustment
70 BodyworkAdjustment

ADJUSTMENT

  1. Working from the engine compartment adjust the tension of the bonnet opening control cable working by hand on the special bushes. Check that the bonnet opens and shuts correctly.

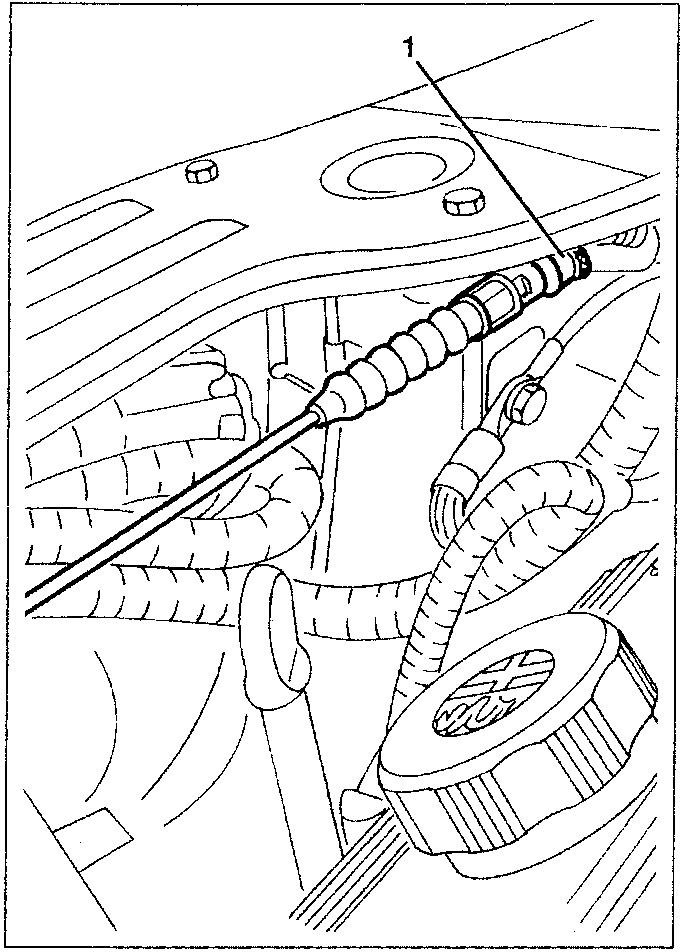

Bonnet opening control cable adjustment
  1. bonnet opening control cable

WHEEL ARCH LINER

REMOVAL/REFITTING

  • Open the bonnet.
  1. Remove the liner from the retainer pins.

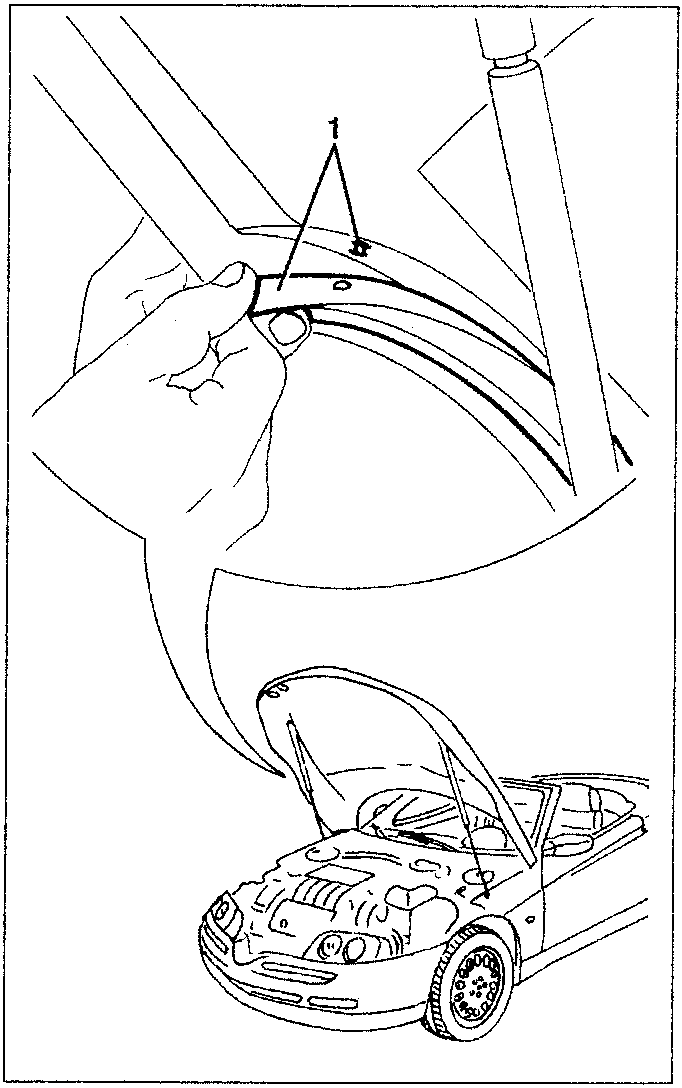

Removing wheel arch liner from retainer pins
