Alfa Romeo GTV and Spider (916) Factory Service Manual (1995-2000)15 · 70 Bodywork
15 · Body & interior

Adjustment

Make
Alfa Romeo
Model
GTV / Spider GTV and Spider (916) Factory Service Manual
Year
1995–2000
Section
Boot › Adjustment
70 BodyworkAdjustment

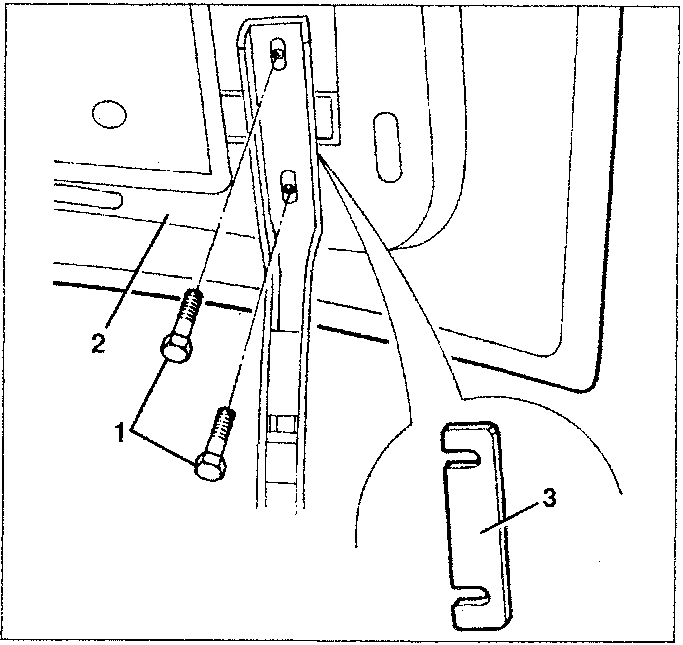

  1. Slacken the two screws fastening the bonnet to the hinges at each side.
  2. Remove the bonnet lid.
  3. Retrieve any shims.
Diagram showing bonnet hinge area with screws and shims labeled 1, 2, and 3.

Refit the bonnet reversing the sequence followed for removal. Adjust the bonnet position.

ADJUSTMENT

Check the correct mating between the boot lid and the body and, if necessary, proceed as follows.

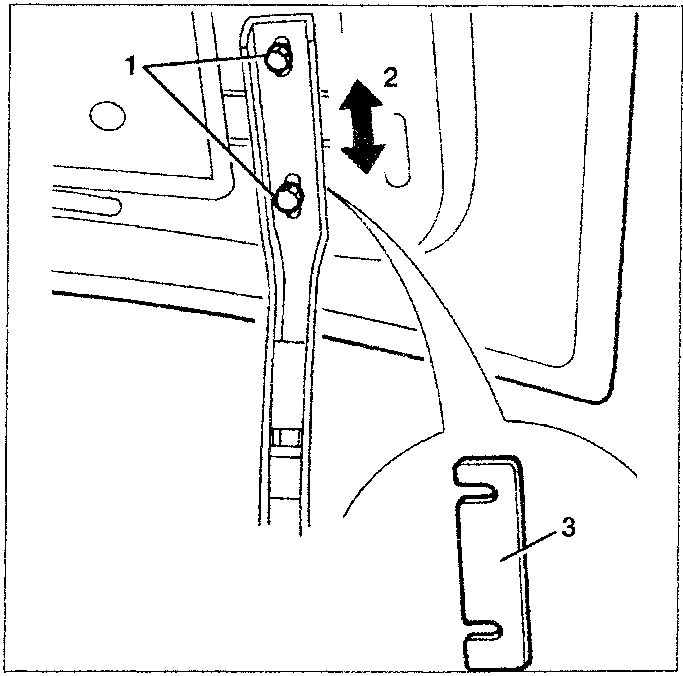

  1. Loosen the screws fastening the boot lid to the hinges.
  2. Adjust the longitudinal position of the boot lid.
  3. If necessary, increase or reduce the shims for adjusting the boot lid in height in the hinges area.
  4. Tighten the screws.
Diagram showing adjustment of boot lid hinge with arrows indicating movement and labeled parts 1, 2, and 3.

COMPLETE SPIDER BOOT LID REMOVAL/REFITTING

WARNING: During removal (or refitting) avoid damaging the paintwork.

  • Open the boot and the battery.

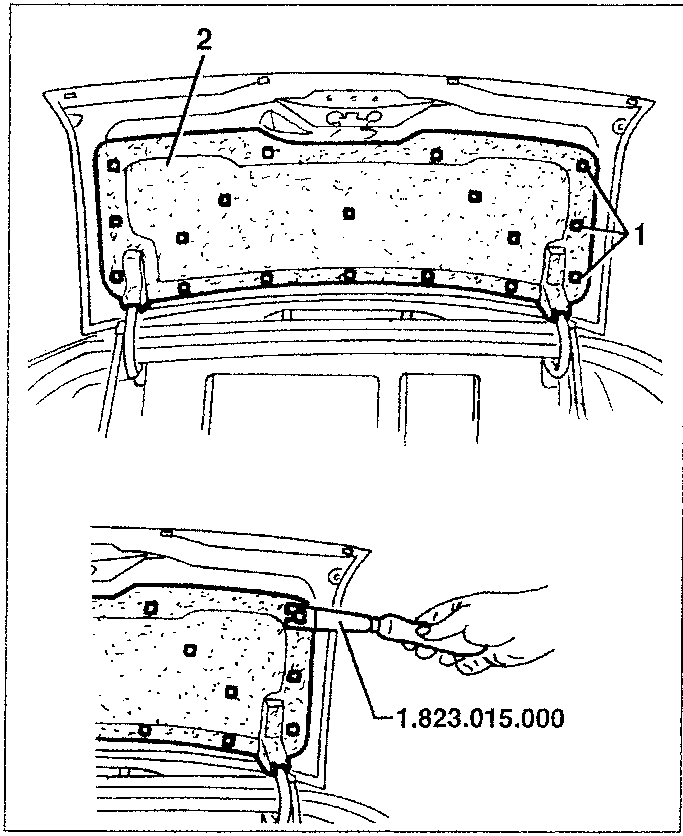

  1. Using tool 1.823.015.000 remove the plastic buttons fastening the inner trim.
  2. Remove the inner trim.
Diagram showing inner trim with plastic buttons and tool 1.823.015.000 being used to remove them.

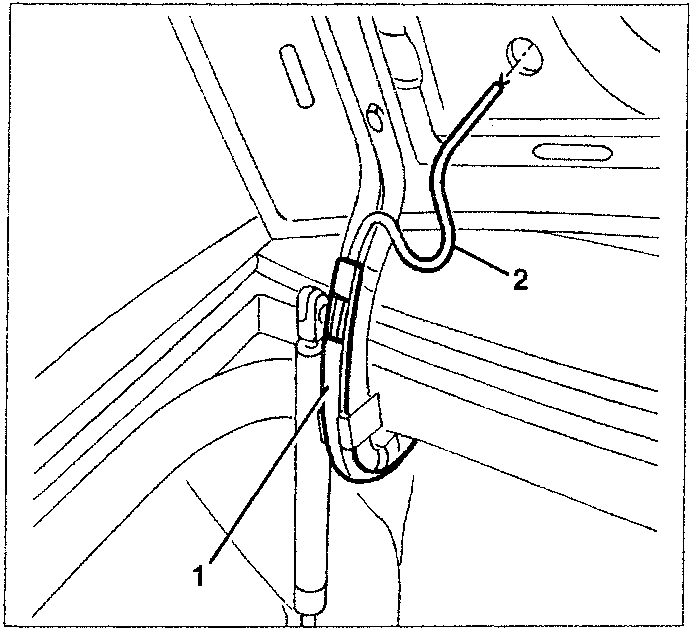

  1. Remove the cable container channels.
  2. Disconnect the wiring from the lock unit and release it from the bonnet.
Diagram showing wiring disconnected from lock unit labeled 2 and bonnet hinge area labeled 1.
