70 BodyworkGtv complete boot lid removal/refitting

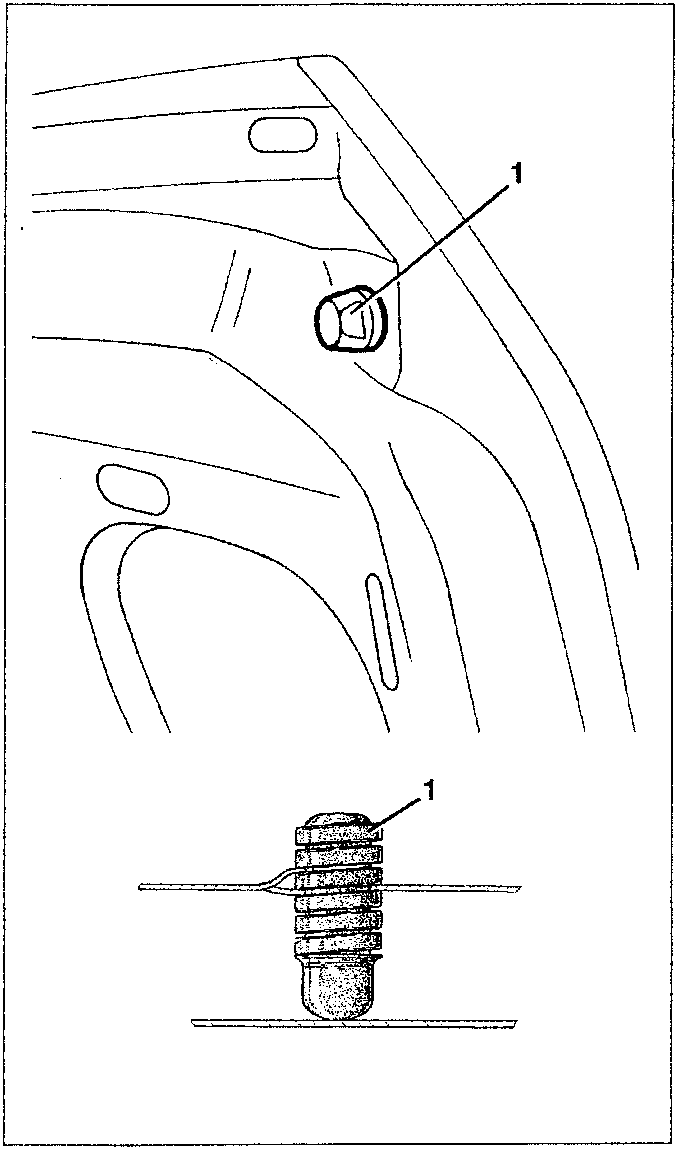

  1. Loosen or tighten the buffers by hand, depending on necessity, to adjust the height of the boot lid in the rear area
Diagram showing buffer adjustment and a close-up of a buffer component labeled 1.

If necessary, adjust the lock striker (see specific paragraph).

GTV COMPLETE BOOT LID REMOVAL/REFITTING

WARNING: During removal (or refitting) avoid damaging the paintwork.

  • Disconnect the battery.

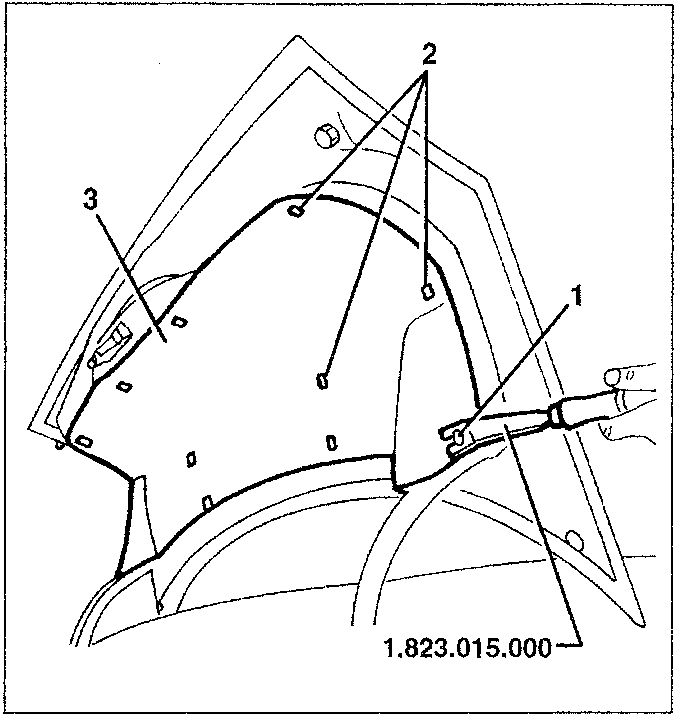

  1. Using tool 1.823.015.000 remove the two side platic nails fastening the inner trim.
  2. In the same way remove the plastic nails in the centre area of the trim.
  3. Remove the inner trim.
Diagram showing removal of inner trim with tool 1.823.015.000, labeled parts 1, 2, and 3.
  • Disconnect the wiring from the lock unit.

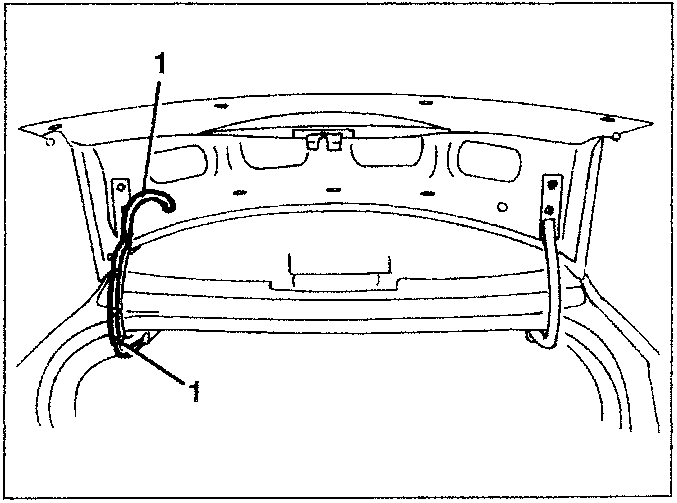

  1. Cut the clamps and release the wiring from the boot.
Diagram showing wiring disconnected from the boot lid, labeled part 1.
