Alfa Romeo GTV and Spider (916) Factory Service Manual (1995-2000)15 · 70 Bodywork
15 · Body & interior

Adjustment

Make
Alfa Romeo
Model
GTV / Spider GTV and Spider (916) Factory Service Manual
Year
1995–2000
Section
Boot › Adjustment
70 BodyworkAdjustment
  1. Slacken the two screws fastening the bonnet to the hinges on each side.
  2. Remove the boot lid.
  3. Retrieve any shims.

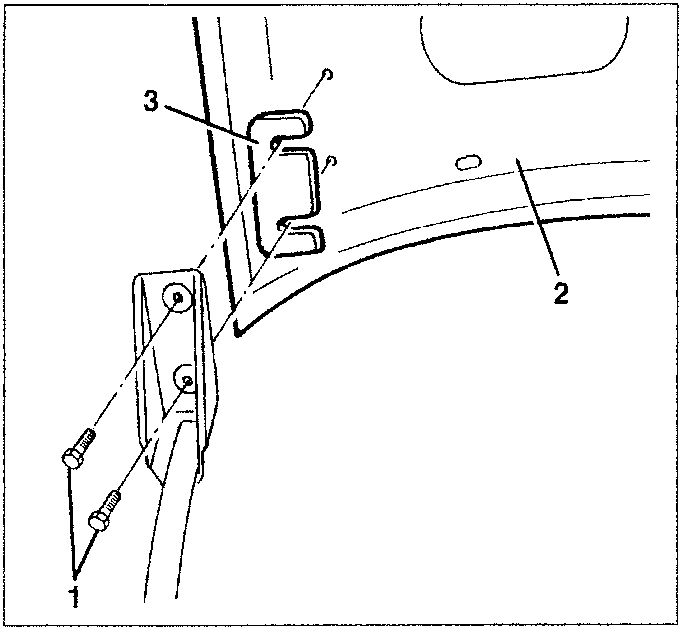

Diagram showing screws (1) and hinges (2, 3) for bonnet attachment

Refit the boot lid reversing the sequence followed for removal. Adjust the bonnet position.

ADJUSTMENT

Check the correct mating between the boot lid and the body and, if necessary, proceed as follows.

  1. Loosen the screws fastening the boot lid to the hinges.
  2. Adjust the longitudinal or transversal position of the boot lid.
  3. If necessary, increase or reduce the shims for adjusting the boot lid in height in the hinges area.

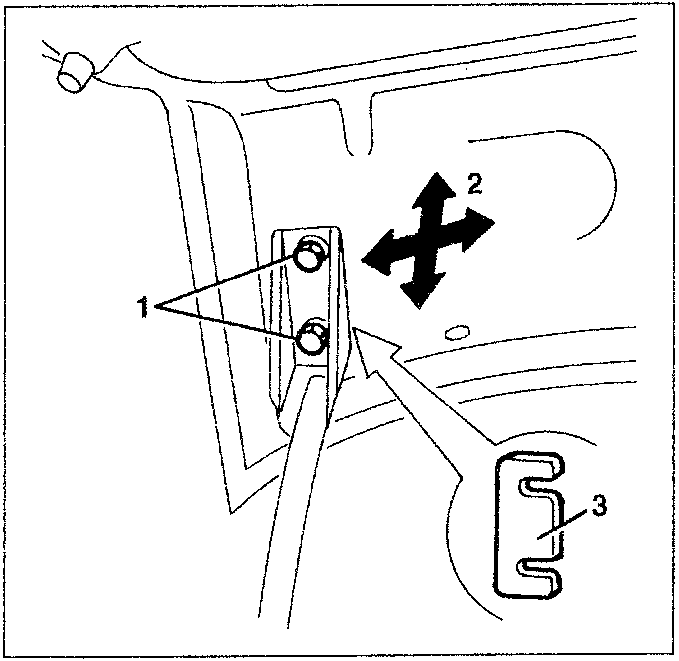

Diagram showing adjustment screws (1) and hinge (3) with directional arrows (2)
  1. Tighten or loosen the buffers by hand, according to necessity, to adjust the height of the boot lid in the rear area.

If necessary, adjust the lock striker (see specific paragraph).

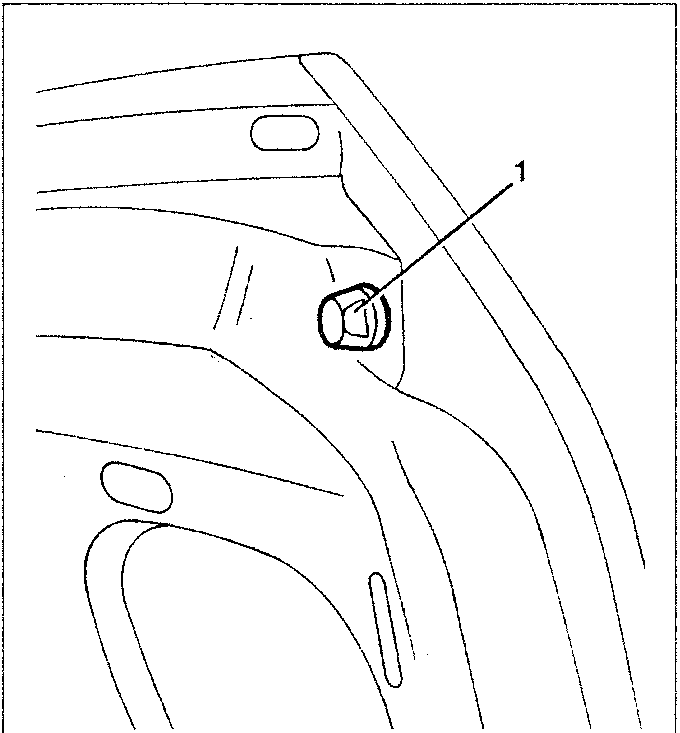

Diagram showing buffer (1) for boot lid adjustment

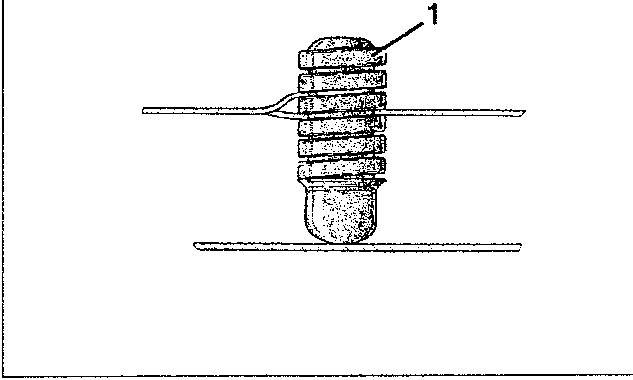

Diagram showing stacked shims (1) for height adjustment
