Starter motor (page 2 of 4)

Make

Alfa Romeo

Model

GTV / Spider GTV and Spider (916) Factory Service Manual

Year

1995–2000

Section

Starting

Electric system diagnosis – 1995-96 cars (incl. V6 Turbo and 24V)Starter motor · page 2 of 4

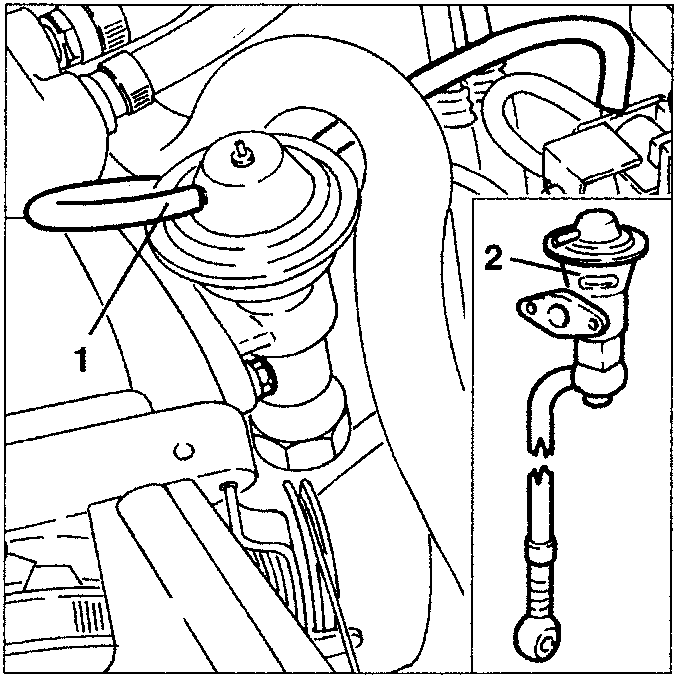

1. Lower the car, then disconnect the vacuum signal tube leading from the modulating solenoid valve from the E.G.R. valve.
2. Slacken the fastening screws and remove the E.G.R. valve complete with exhaust gas takeoff pipe.

1. part name
2. part name

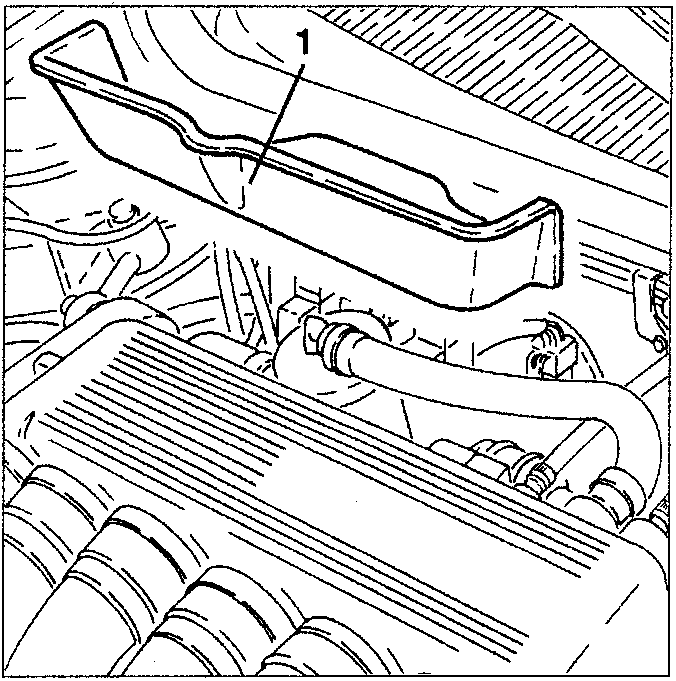

1. Slacken the fastenings and remove the heat guard.

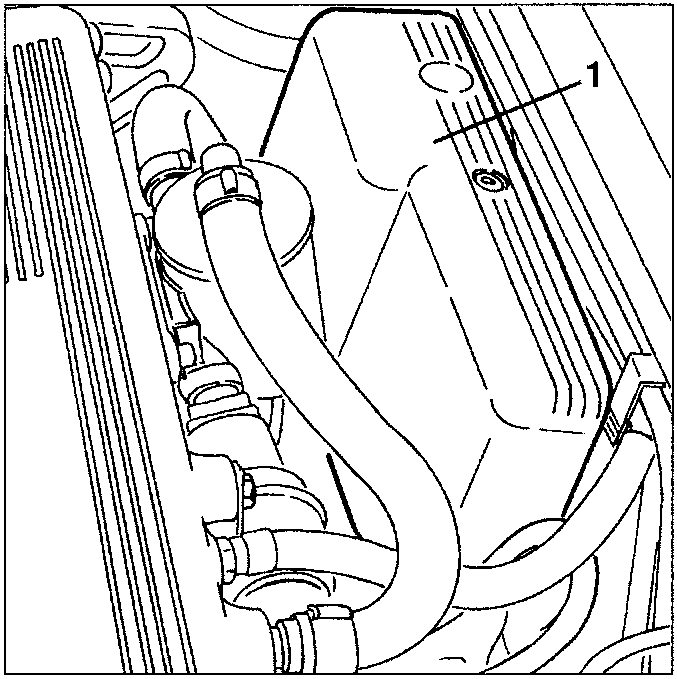

1. Remove the plastic cover protecting the relays, fuses and electrical connections.

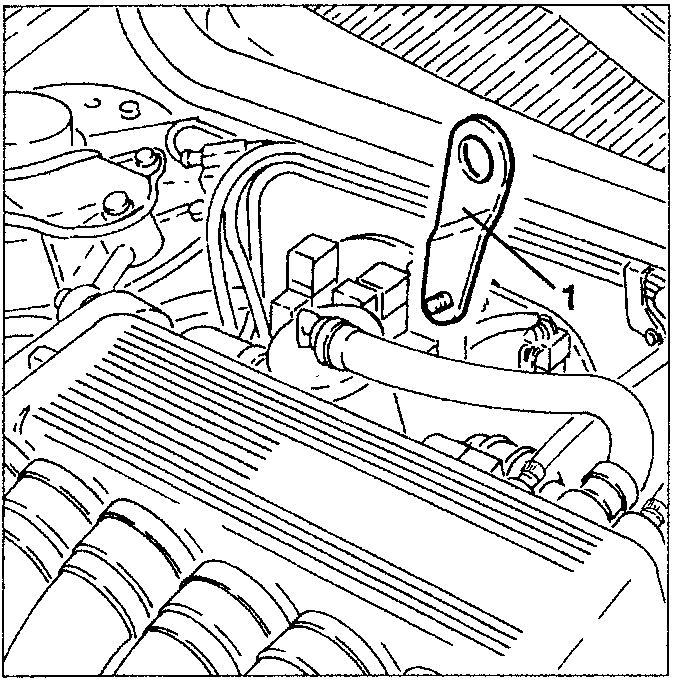

1. Install a special engine support bracket on the cylinder head.
