Starter motor (page 3 of 4)

• Working from the engine compartment slacken the nuts fastening the exhaust manifold to the right cylinder head.

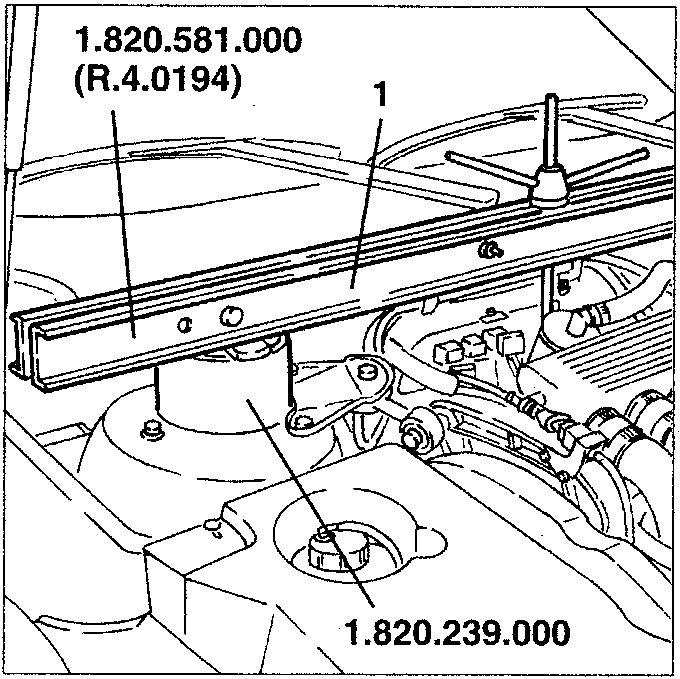

1. Install cross rail no.1.820.581.000 (R.4.0194) complete with supports no. 1.820.239.000 for supporting the power unit.

1. 1.820.581.000 (R.4.0194)
2. 1.820.239.000

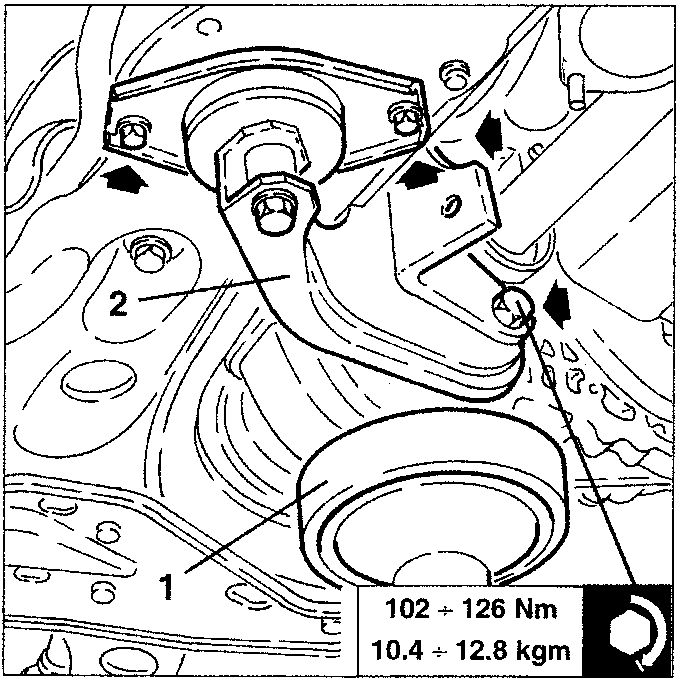

1. Position a hydraulic jack under the gearbox as illustrated.
2. Slacken the fastening screws and remove the rear power unit support.

102 ÷ 126 Nm
10.4 ÷ 12.8 kgm

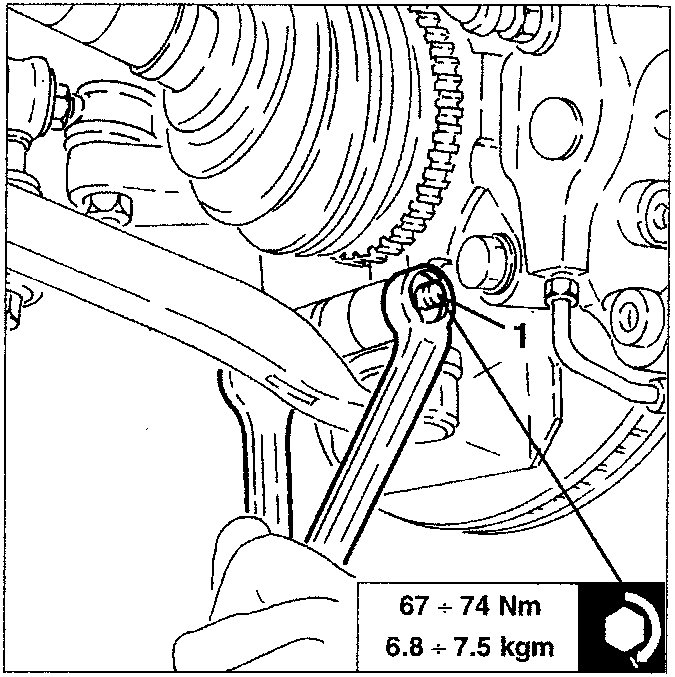

1. Raise the car and slacken the bolts fastening the wishbones to the wheel uprights.

67 ÷ 74 Nm
6.8 ÷ 7.5 kgm

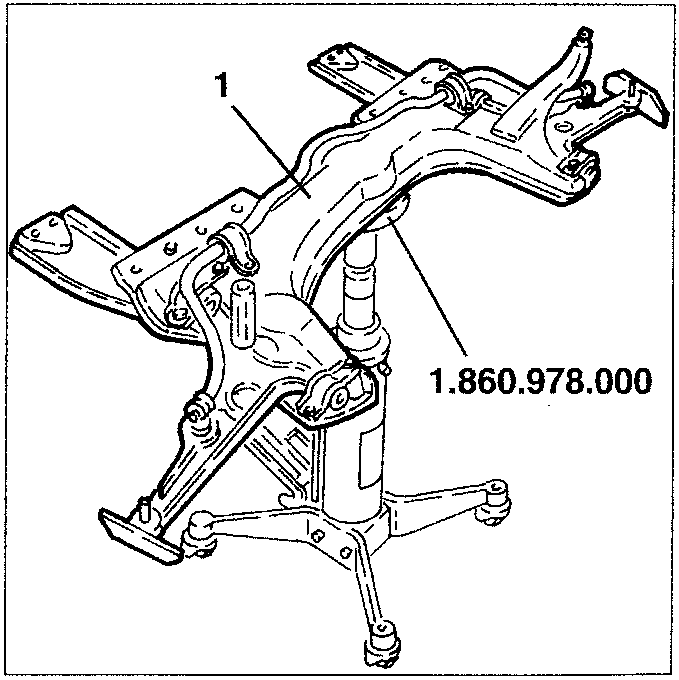

• Using a hydraulic jack support the cross rail using tool no. 1.860.978.000.

1. Slacken the cross rail fastening nuts and screws, then remove it complete with wishbones, stabiliser bar and reinforcements.

1. 1.860.978.000
