Starter motor (page 4 of 4)

Make

Alfa Romeo

Model

GTV / Spider GTV and Spider (916) Factory Service Manual

Year

1995–2000

Section

Starting

Electric system diagnosis – 1995-96 cars (incl. V6 Turbo and 24V)Starter motor · page 4 of 4

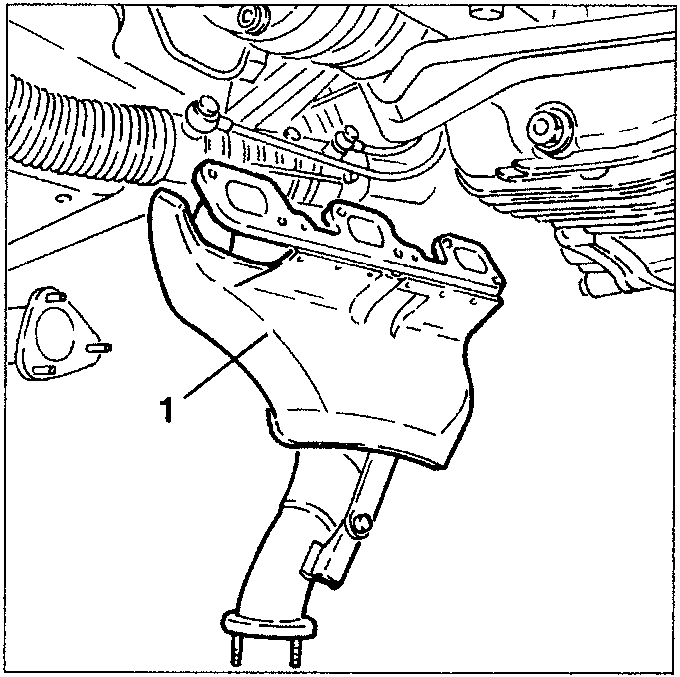

1. Recover the exhaust manifold from the right cylinder head complete with heat shields.

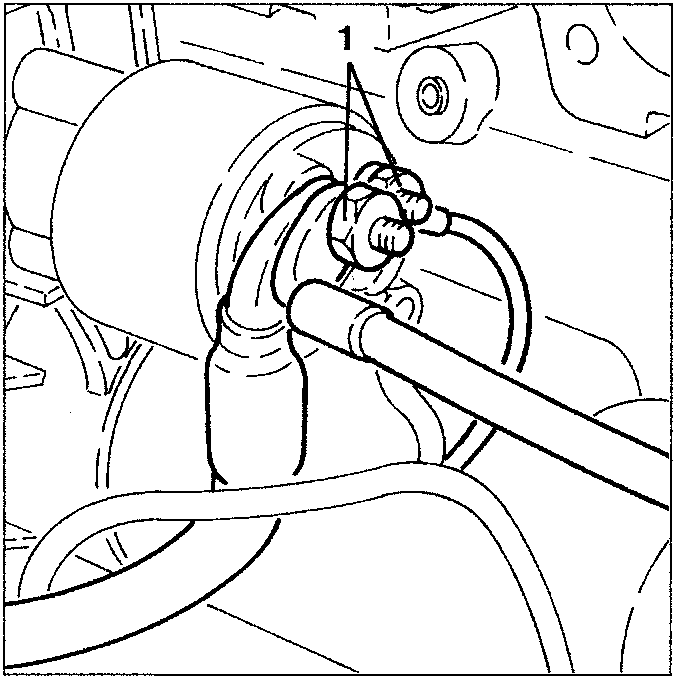

1. Disconnect the electrical connections from the starter motor.

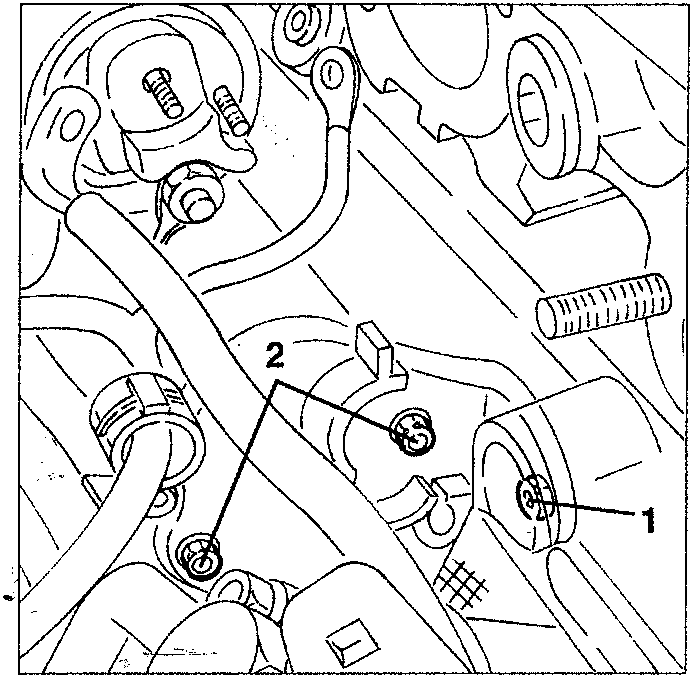

1. Slacken the nut fastening the rear starter motor bracket to the oil filter support.
2. Slacken the two nuts fastening the rear bracket to the starter motor.

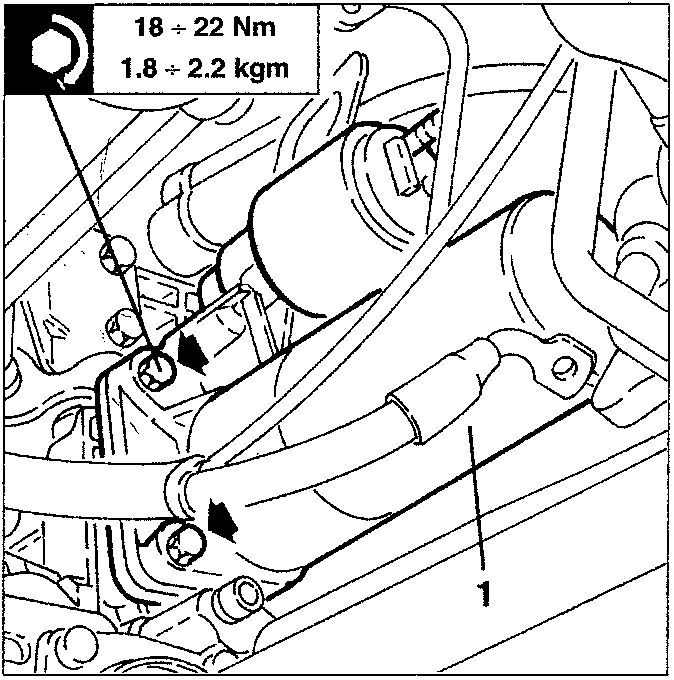

1. Slacken the fastening screws and remove the starter motor complete with rear bracket.

18 ÷ 22 Nm
1.8 ÷ 2.2 kgm

18 Diagnostics
