Alfa Romeo GTV and Spider (916) Factory Service Manual (1995-2000)21 · Right-hand drive variants
21 · General

Intake box (page 2 of 4)

Make
Alfa Romeo
Model
GTV / Spider GTV and Spider (916) Factory Service Manual
Year
1995–2000
Section
Air intake circuit
Right-hand drive variantsIntake box · page 2 of 4

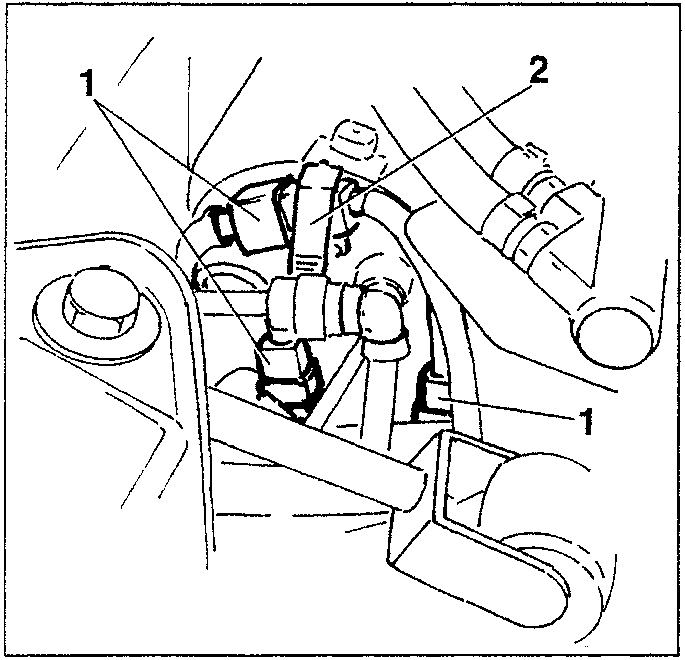

  1. Disconnect the three electrical connections.
  2. Prise off the connectors fastened to the intake box.
Diagram showing electrical connections and intake box connectors

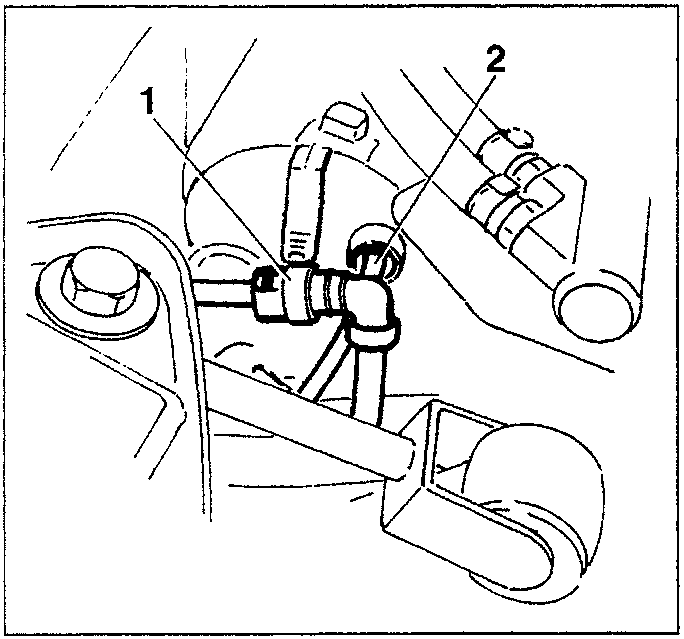

  1. Disconnect the servobrake vacuum pipe union (press the tabs on the union).
  2. Disconnect the fuel vapour recirculation pipe from the intake box.
Diagram showing servobrake vacuum pipe and fuel vapour recirculation pipe

– Raise the vehicle.

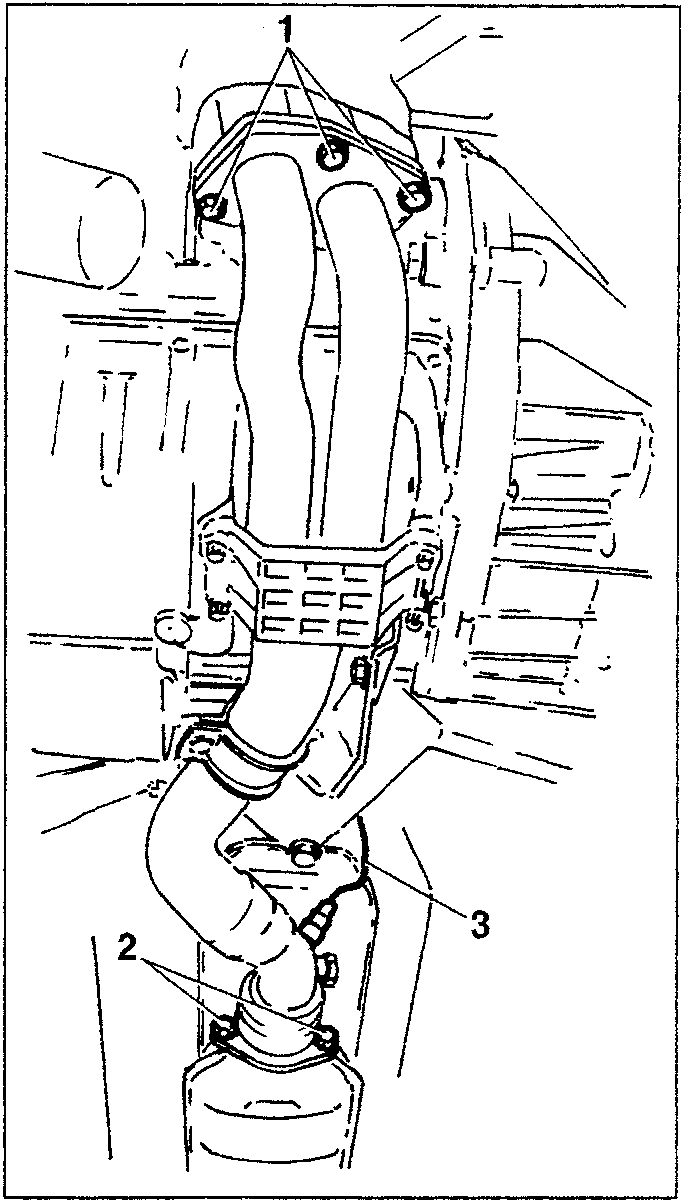

  1. Slacken the four screws of the front exhaust pipe.
  2. Slacken the two rear bolts.
  3. Withdraw the lambda probe cable.
Diagram showing exhaust pipe, rear bolts and lambda probe cable
