Right-hand drive variantsIntake box · page 4 of 4
  1. Slacken the fastening clamps and withdraw the complete intake box upwards.

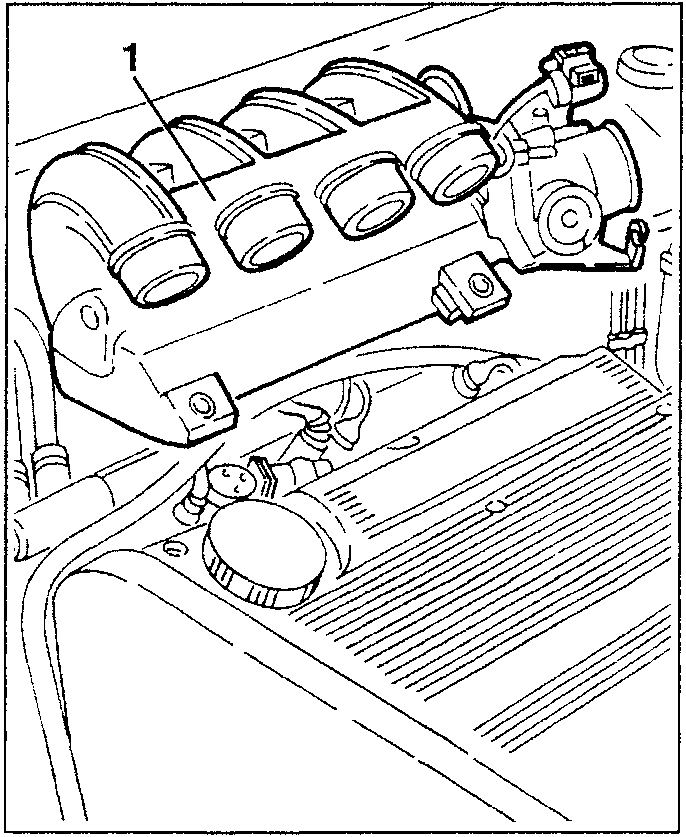

Engine air intake box with clamps and throttle body
  1. If necessary, slacken the four fastening screws and remove the throttle body.

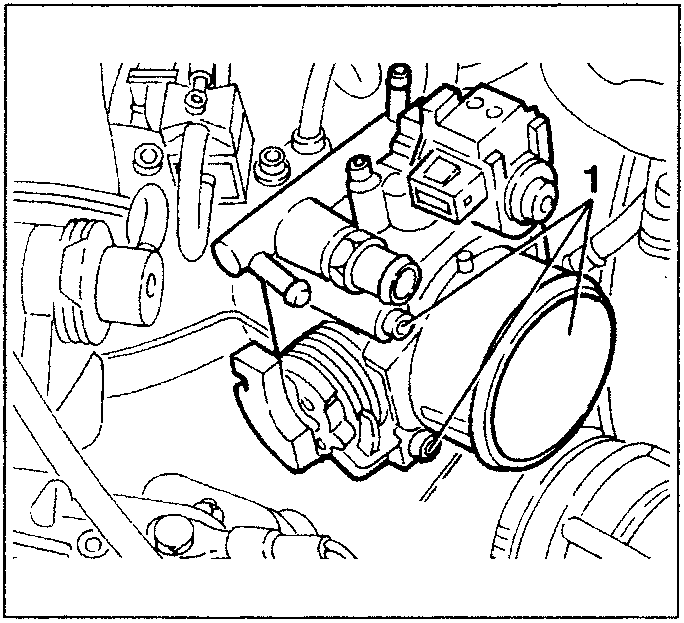

Throttle body with fastening screws
  1. If necessary, disconnect the E.G.R. modulating solenoid valve piping from the box.
  2. Slacken the two screws and remove the solenoid valve.

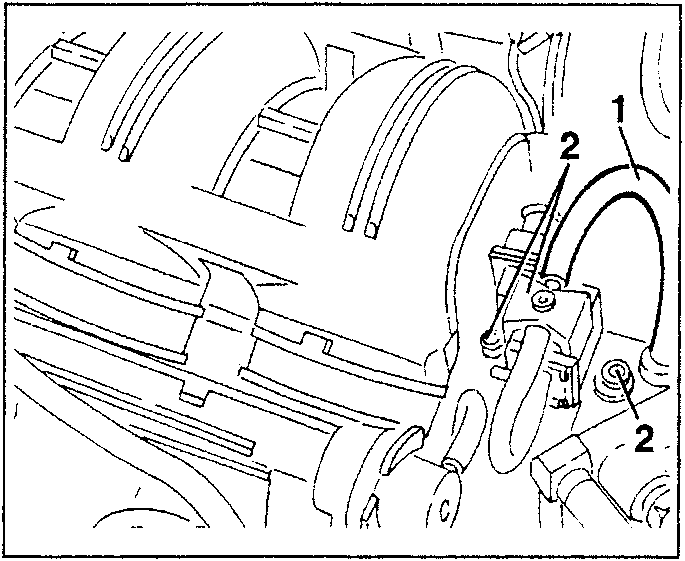

E.G.R. modulating solenoid valve with piping
