Alfa Romeo GTV and Spider (916) Factory Service Manual (1995-2000)21 · Right-hand drive variants
21 · General

Intake box (page 3 of 4)

Make
Alfa Romeo
Model
GTV / Spider GTV and Spider (916) Factory Service Manual
Year
1995–2000
Section
Air intake circuit
Right-hand drive variantsIntake box · page 3 of 4

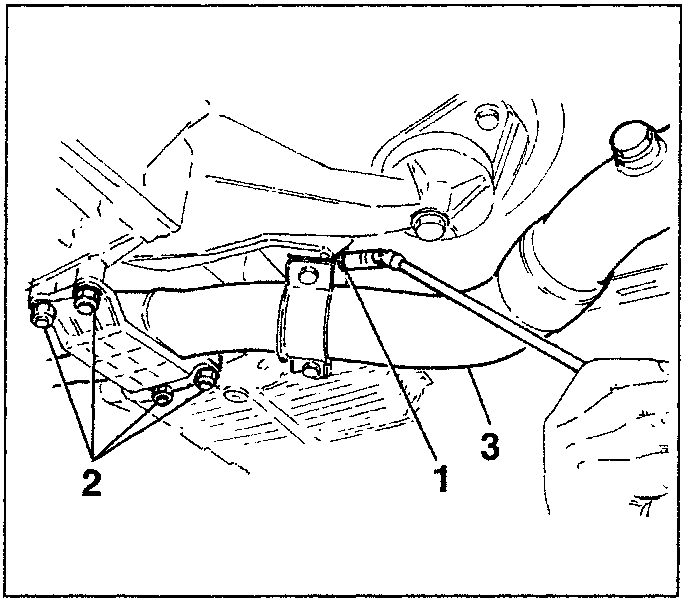

  1. Slacken the intermediate support bolt.
  2. Slacken the four nuts fastening the reinforcement bracket.
  3. Withdraw the exhaust pipe.
Diagram showing intermediate support bolt, reinforcement bracket, and exhaust pipe

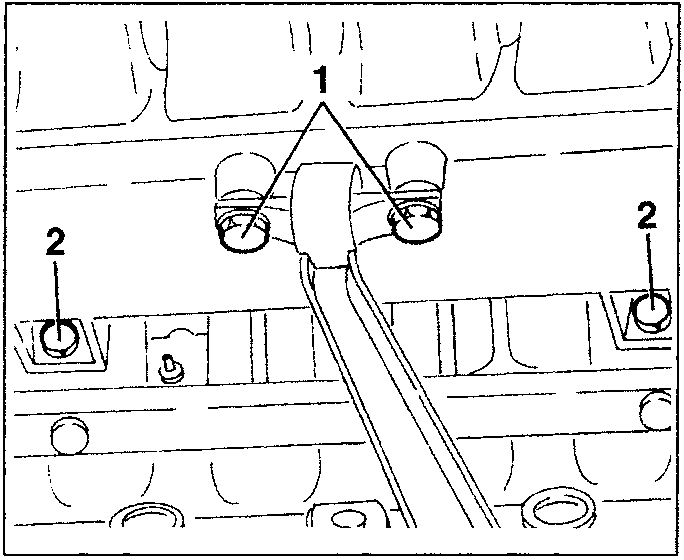

  1. Slacken the two screws fastening the support to the intake box.
  2. Slacken the two screws fastening the intake box to the cylinder head.
Diagram showing intake box and cylinder head with screws

– Lower the vehicle.

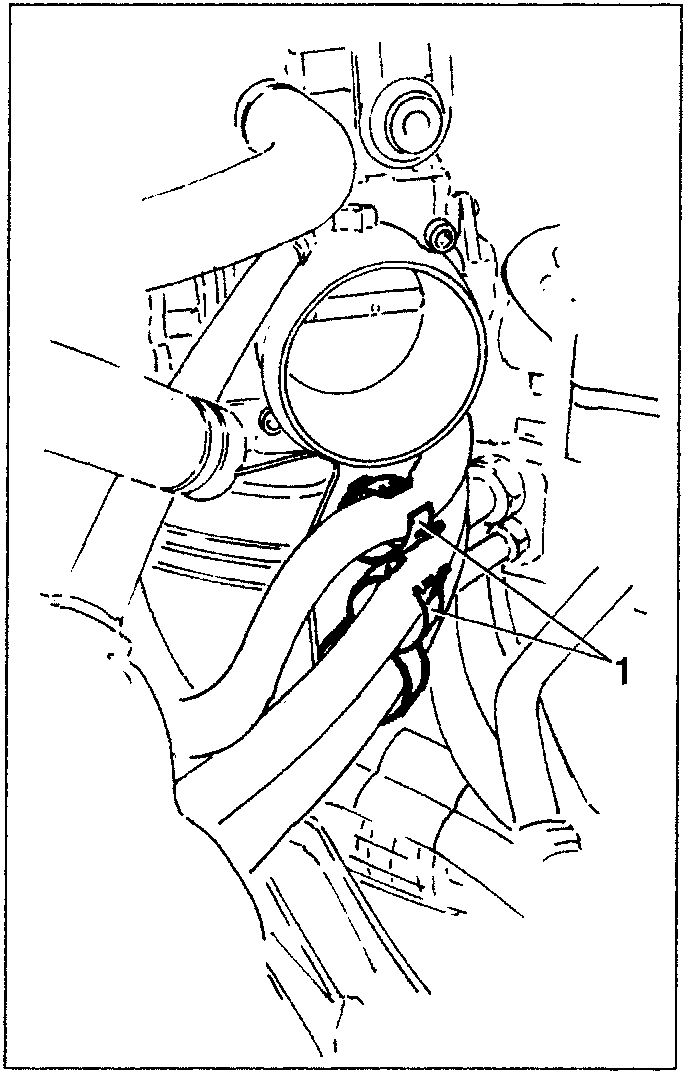

  1. Open the support brackets and free the pipes and cable.
Diagram showing support brackets, pipes, and cable
