Alfa Romeo GTV and Spider (916) Factory Service Manual (1995-2000)12 · Variants – 3.0 V6 24V
12 · General

Description

Make
Alfa Romeo
Model
GTV / Spider GTV and Spider (916) Factory Service Manual
Year
1995–2000
Section
External controls › Description
Variants – 3.0 V6 24VDescription

DESCRIPTION

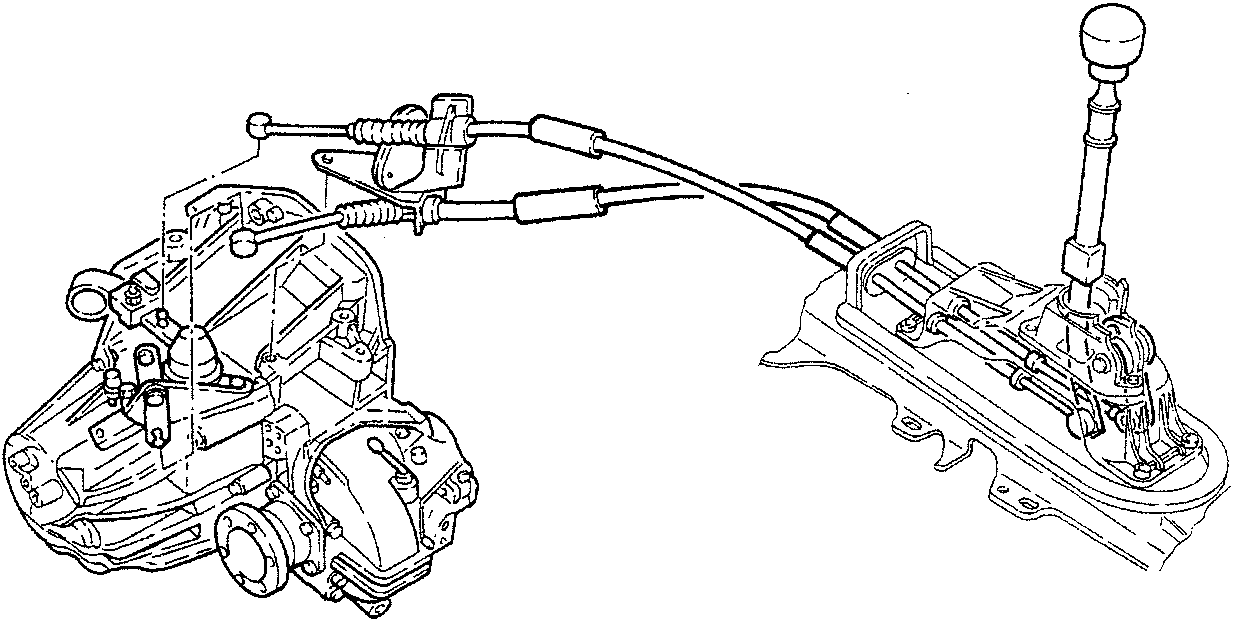

The double wire external control is made with high-feature plastic material (fatigue resistant, self-lubricating, low-weight). This type of control, combined with inertia distribution towards the gearbox, ensures:

  • high comfort, thanks to the vibration filtering action and light-weight external components
  • accurate manoeuvres and reduced coupling play.

The external control is equipped with a reverse engagement stroke inhibiting device which ensures additional safety in preventing involuntary manoeuvres.

Figure
