Variants – 3.0 V6 24VDisassembly/re-assembly · page 1 of 2

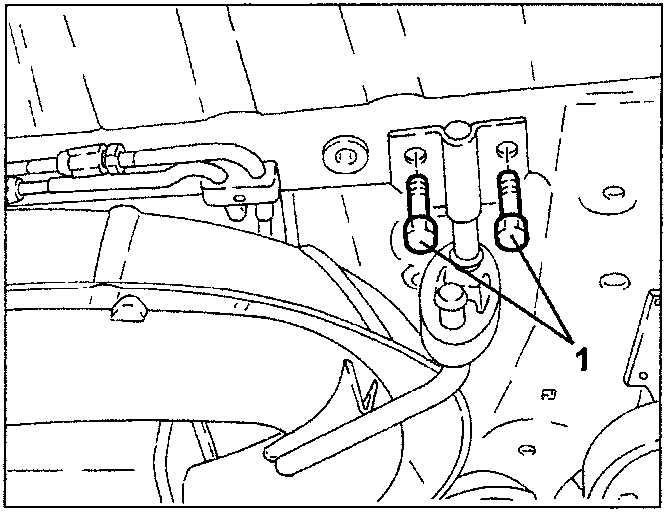

  1. Loosen the intermediate exhaust bracket fastening screws.
Diagram showing intermediate exhaust bracket fastening screws
  1. Lower the hydraulic jack and remove the gearbox and handbrake lever assembly.
Diagram showing gearbox and handbrake lever assembly being removed

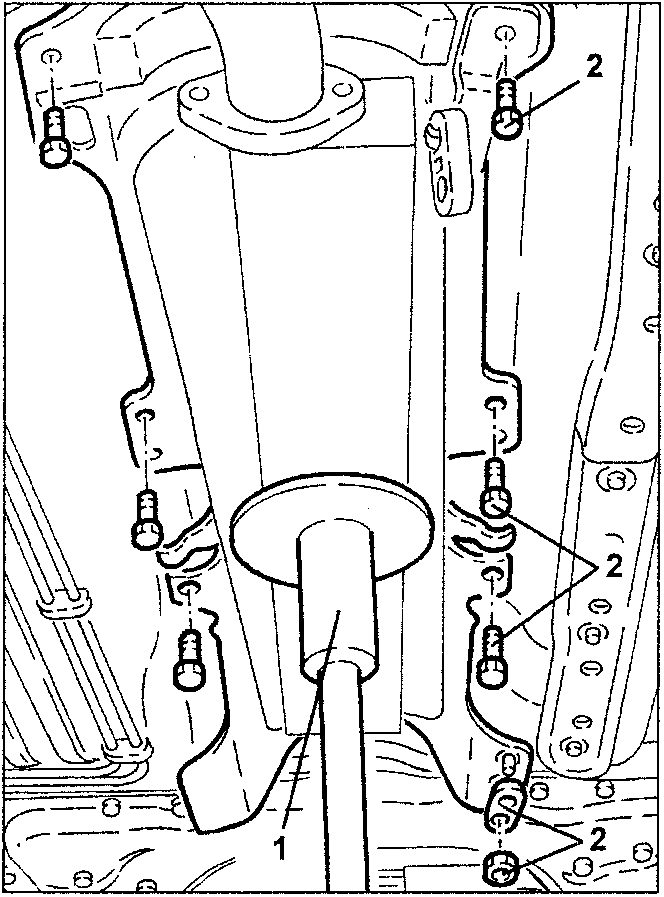

  1. Position a hydraulic jack under the handbrake lever bracket.
    2. Loosen the gearbox and handbrake levers fastening screws and nuts from the underbody.
Diagram showing hydraulic jack positioned under handbrake lever bracket and screws being loosened

DISASSEMBLY/RE-ASSEMBLY

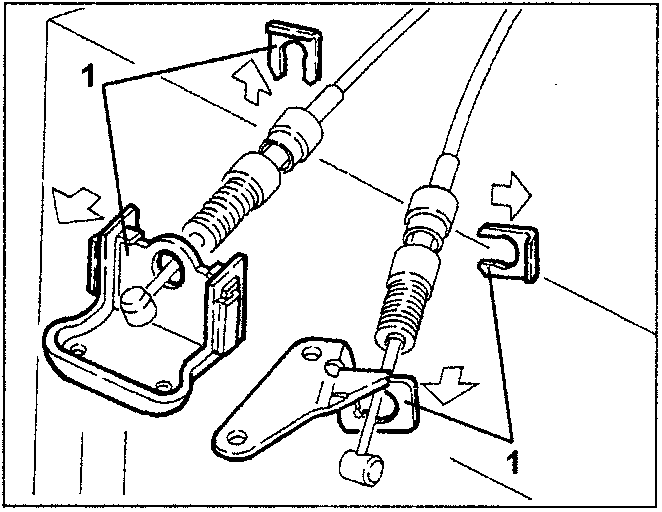

  1. Loosen the retainer plates and remove the gear selection/engagement brackets.
Diagram showing retainer plates and gear selection/engagement brackets being removed
