Variants – 3.0 V6 24VGear selection and engagement assembly
  • Complete refitting by reversing the removal sequence.

GEAR SELECTION AND ENGAGEMENT ASSEMBLY

REMOVAL/REFITTING

  1. Loosen the fastening clips and remove the corrugate sleeve.

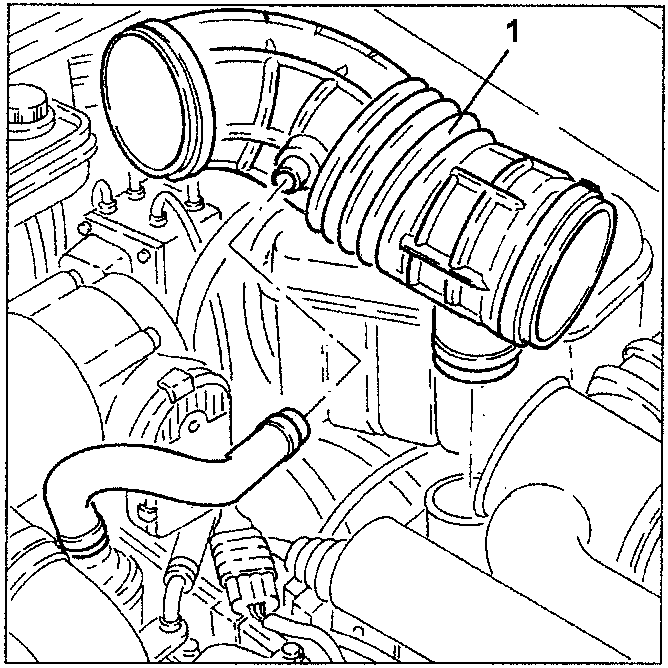

Gear selection and engagement assembly with corrugate sleeve
  1. Release the electrical wiring from the bracket fastening clips.
  2. Loosen the nut and remove the electrical wiring bracket.
  3. Disconnect the gear selection and engagement wires.

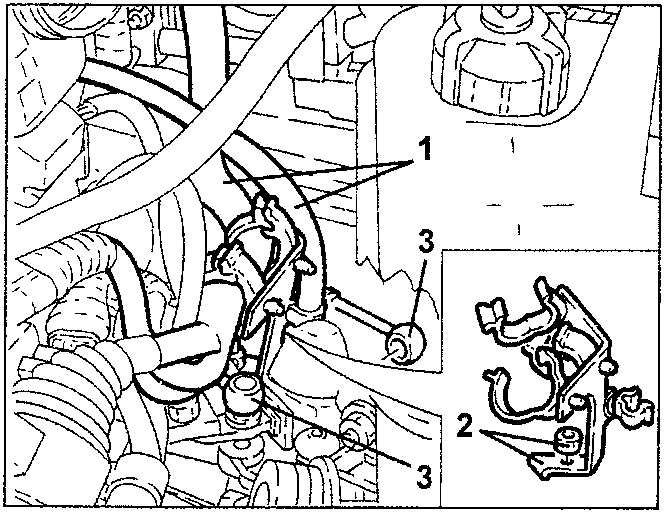

Electrical wiring bracket and wires

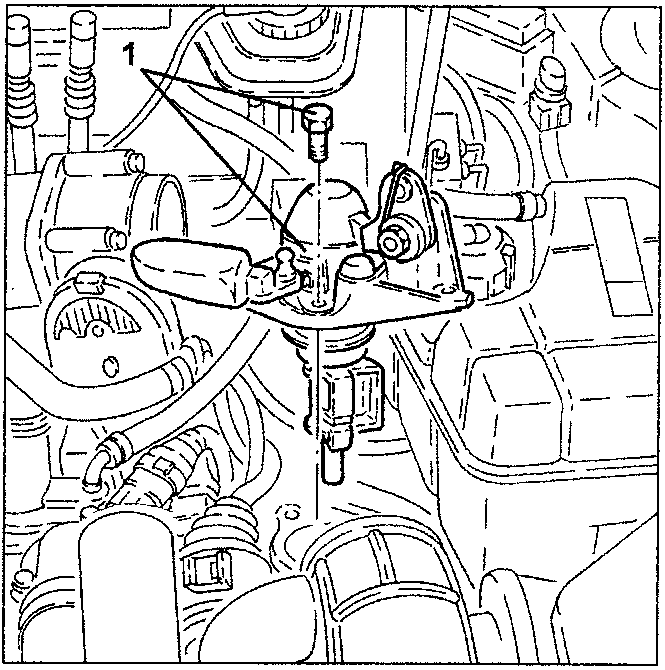

  1. Loosen the screws and remove the gear selection and engagement assembly.
Gear selection and engagement assembly with screws
  • Refit by reversing the removal sequence to the gear selection and engagement assembly fitting in its seat step.
  1. Fit tool no. 1.870.974.000 under the gear engagement wire ball coupling.
  2. Connect the gear selection wire.
  3. Loosen the gear selection/engagement assembly adjustment nut.
  • Torque the gear selection/engagement assembly adjustment nut after positioning the gear lever in neutral and shifting it all to the right.
  1. Connect the gear engagement wire.
  • Position the gear lever in reverse and remove tool no. 1.870.974.000.

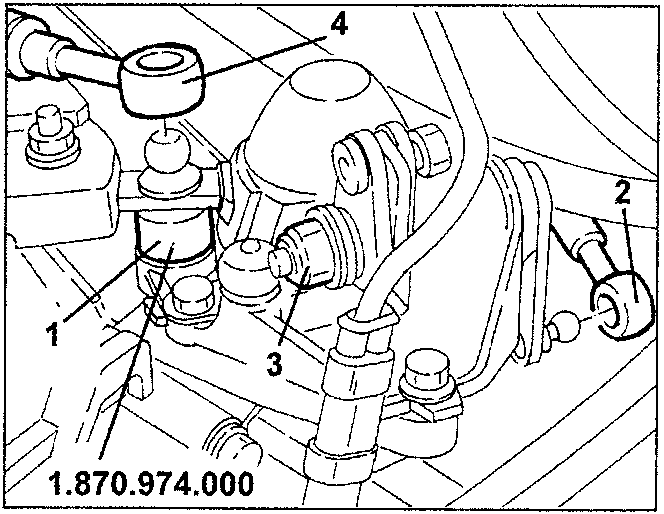

Gear engagement wire ball coupling with tool
  • Complete refitting by reversing the removal sequence.
