Disassembly/re-assembly (page 2 of 2)

Make

Alfa Romeo

Model

GTV / Spider GTV and Spider (916) Factory Service Manual

Year

1995–2000

Section

External controls

Variants – 3.0 V6 24VDisassembly/re-assembly · page 2 of 2

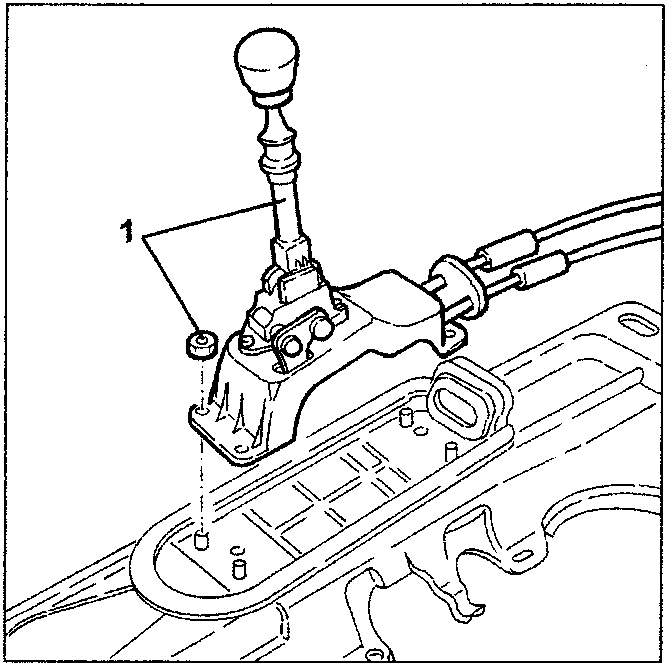

1. Loosen the fastening nuts and remove the gearbox lever bracket with gear selection/engagement wires.

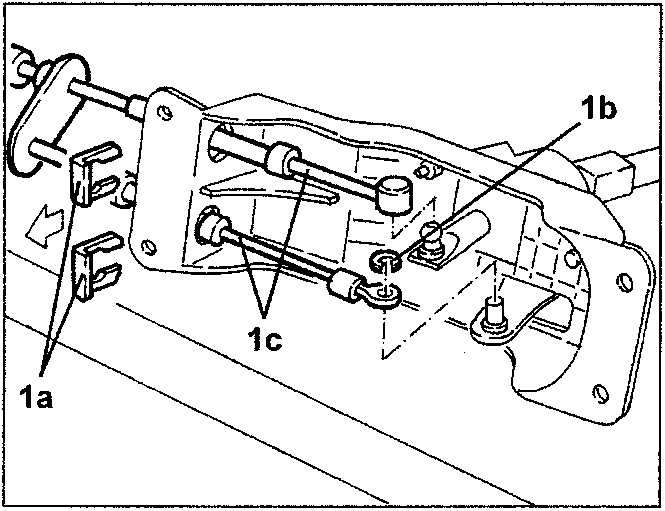

1. Remove the retainer plates (1a), washer (1b). Then disconnect and remove the gear selection/engagement wires (1c).

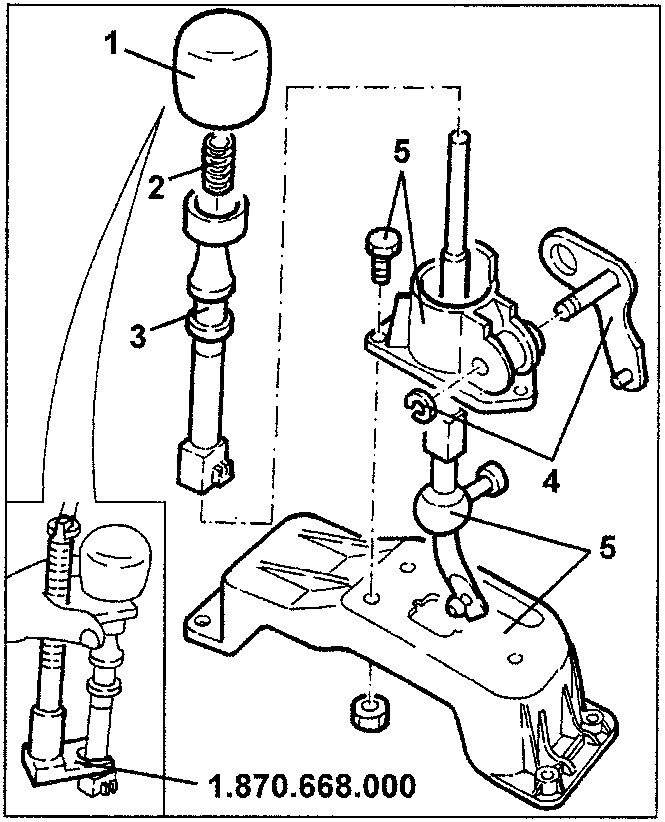

1. Remove the gear lever knob with tool no. 1.870.668.000.
   2. Remove the spring.
   3. Remove the reverse inhibitor.
   4. Remove the washer and remove the lever.
   5. Loosen the bolts and disassemble the gear rod from the respective brackets.

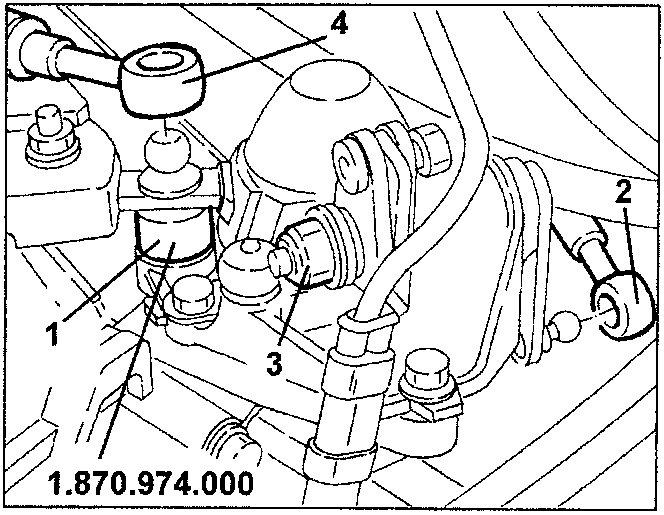

1. Fit tool no. 1.870.974.000 under the gear engagement wire ball coupling.
   2. Connect the gear selection wire.
   3. Loosen the gear selection/engagement assembly adjustment nut.
   - Torque the gear selection/engagement assembly adjustment nut after positioning the gear lever in neutral and shifting it all to the right.
   4. Connect the gear engagement wire.
   - Position the gear lever in reverse and remove tool no. 1.870.974.000.
