Gearbox lever and handbrake bracket

GEARBOX LEVER AND HANDBRAKE BRACKET

REMOVAL

• Position the vehicle on a shop jack.
  - Make sure the ignition key is at "STOP" and disconnect the (-) battery terminal.

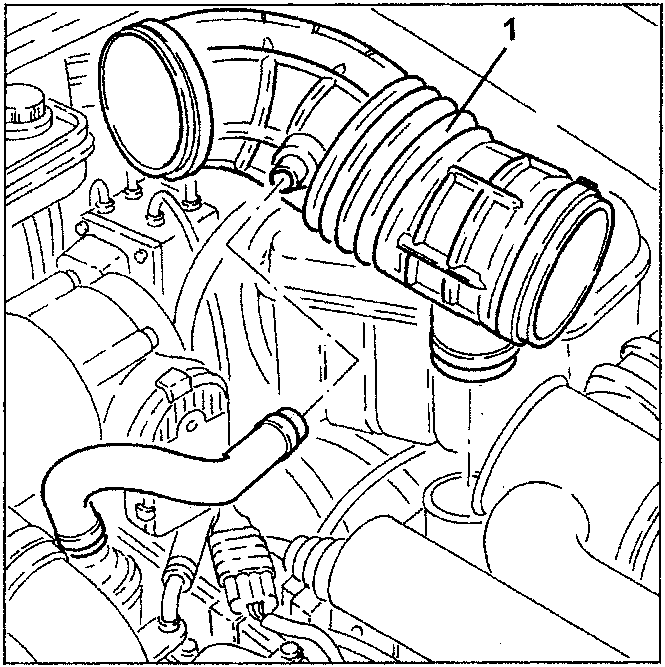

1. Loosen the fastening clips and remove the corrugated sleeve.

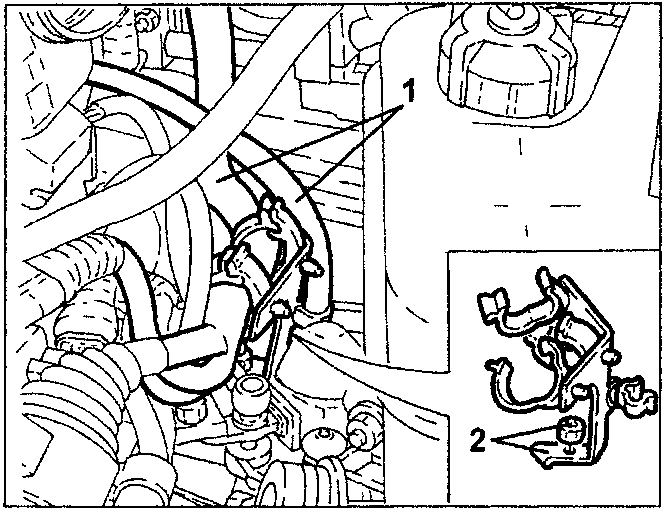

1. Release the electrical wiring from the bracket fastening clips.
   2. Loosen the nut and remove the electrical wiring bracket.

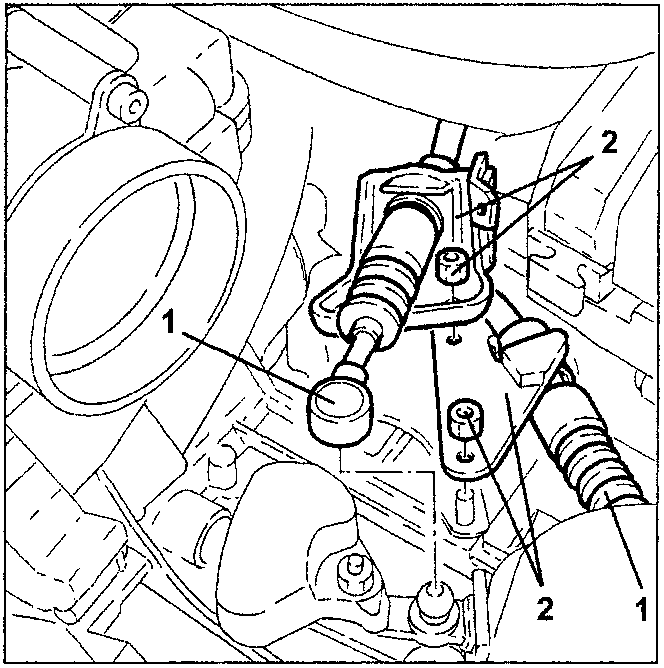

1. Disconnect the gear selection and engagement wires.
   2. Loosen the nuts and release the bracket and gear selection and engagement wires.

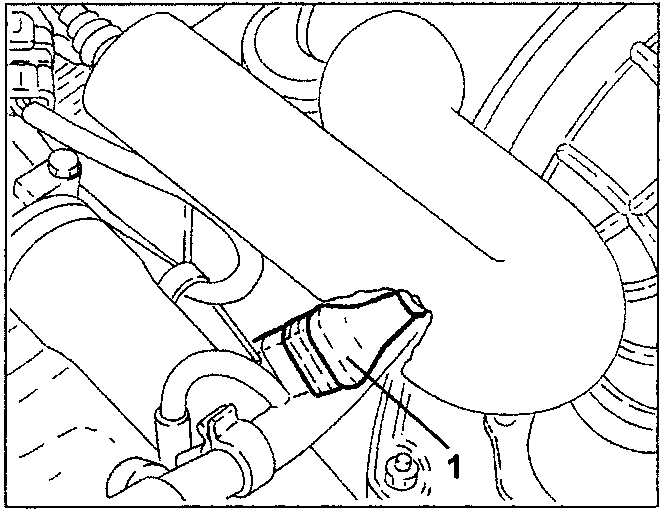

1. Disconnect the left-hand lambda sensor electrical connection.
