Variants – 3.0 V6 24VRefitting

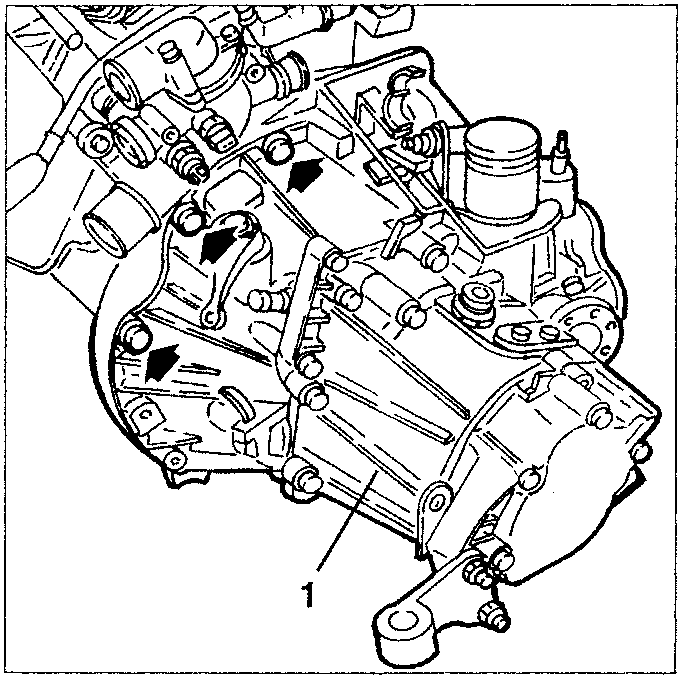

  1. Slacken the fastening screws and, using a hydraulic hoist, remove the gearbox - differential unit.
Gearbox-differential unit with fastening screws

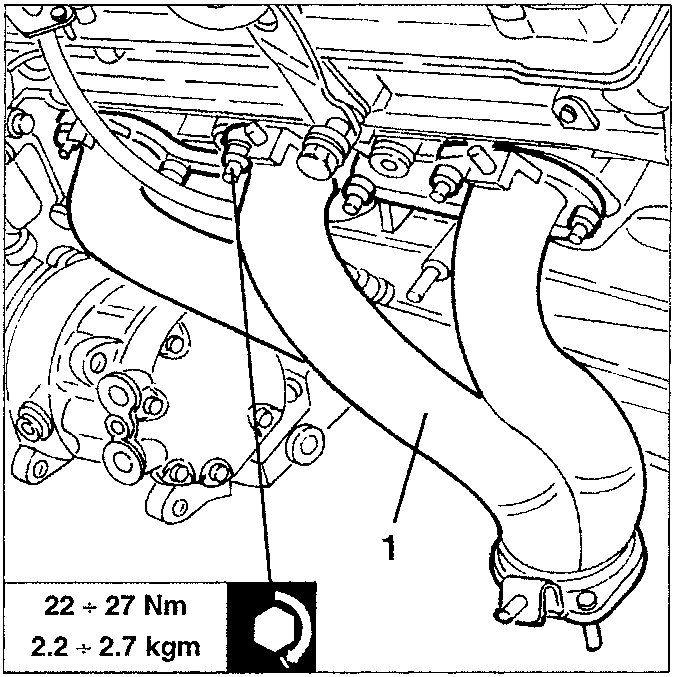

  1. Slacken the fastening nuts and remove the left exhaust manifold
  • Remove the seals.
Left exhaust manifold with nuts

22 ÷ 27 Nm
2.2 ÷ 2.7 kgm

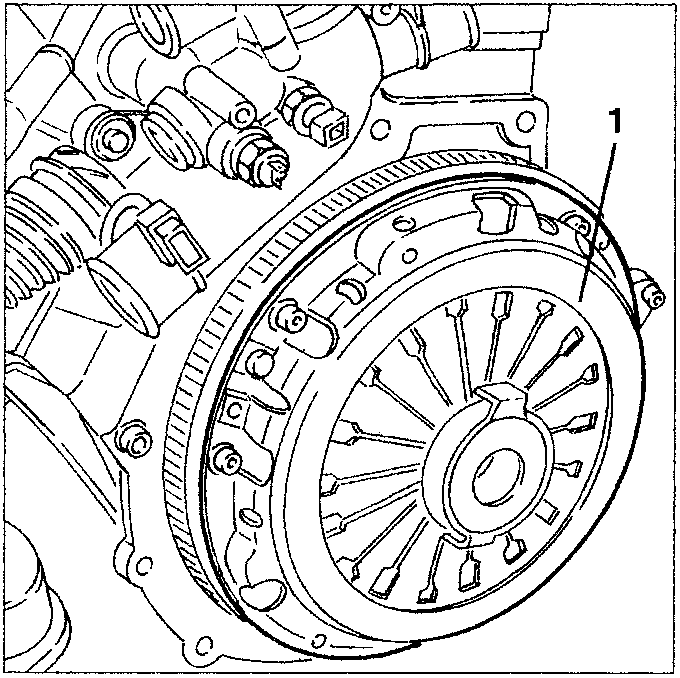

  1. Slacken the fastening screws and remove the pressure plate complete with thrust bearing and clutch plate.
Pressure plate with thrust bearing and clutch plate

REFITTING

Reverse the sequence followed for removal, keeping to the following instructions:

  • Prepare the engine compartment for inserting the power unit assembly, placing all the electric cables, pipes, etc. so that they do not interfere with reassembly operations.
  • Take due care when fitting the power unit to avoid damaging the single components.

WARNING: Make sure that the power unit support points have been fixed correctly.

  • After assembly, fill the various systems as specified (see Group 00).
  • Carry out all the necessary checks and operations (see Group 00).
