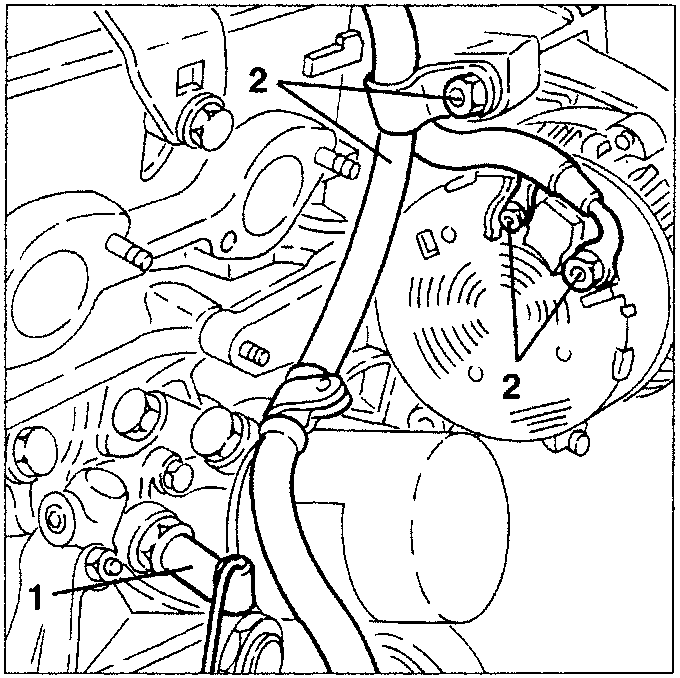

1. Disconnect the electrical connection from the engine oil minimum pressure sensor.
2. Disconnect the electrical connections from the alternator, then remove the wiring loom after releasing it from the fasteners.

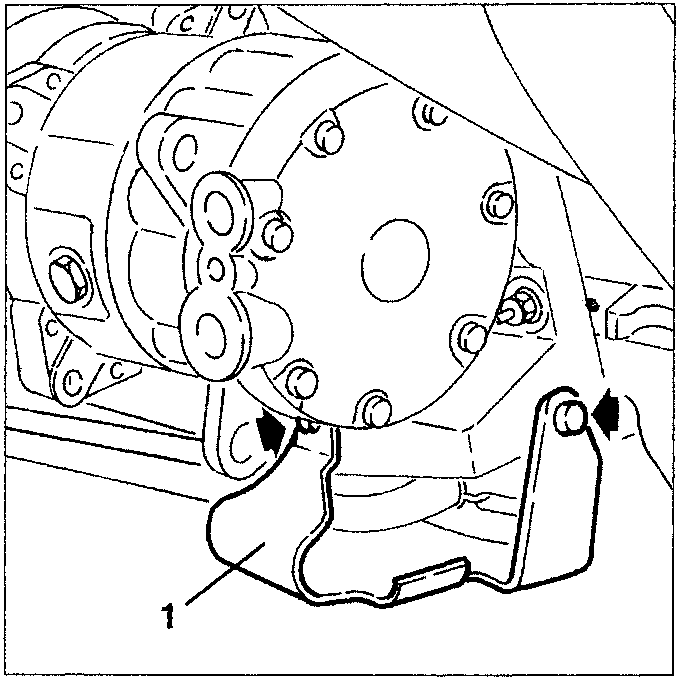

1. Slacken the fastening screws and remove the support bracket of the radiator engine oil delivery and return pipes.

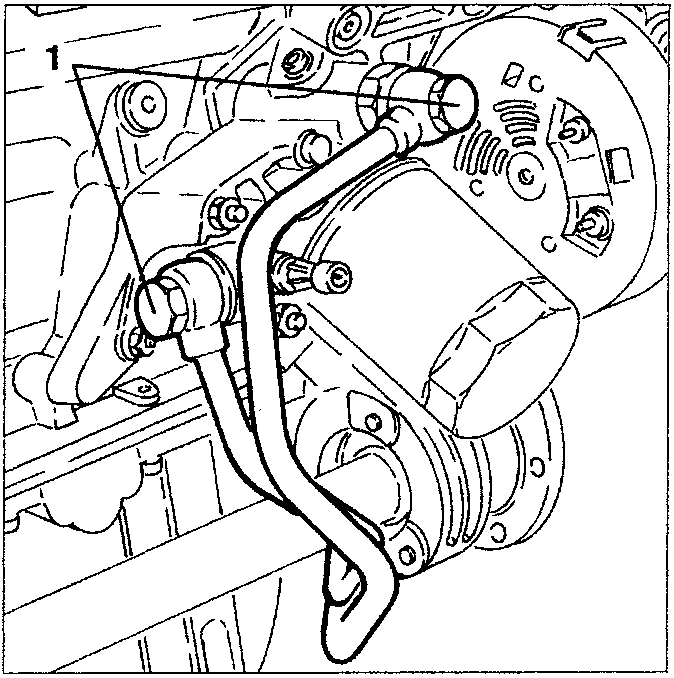

1. From the oil filter support bracket disconnect the unions of the radiator engine oil delivery and return pipes, then remove them complete with the radiator.

• Drain the gearbox - differential oil.

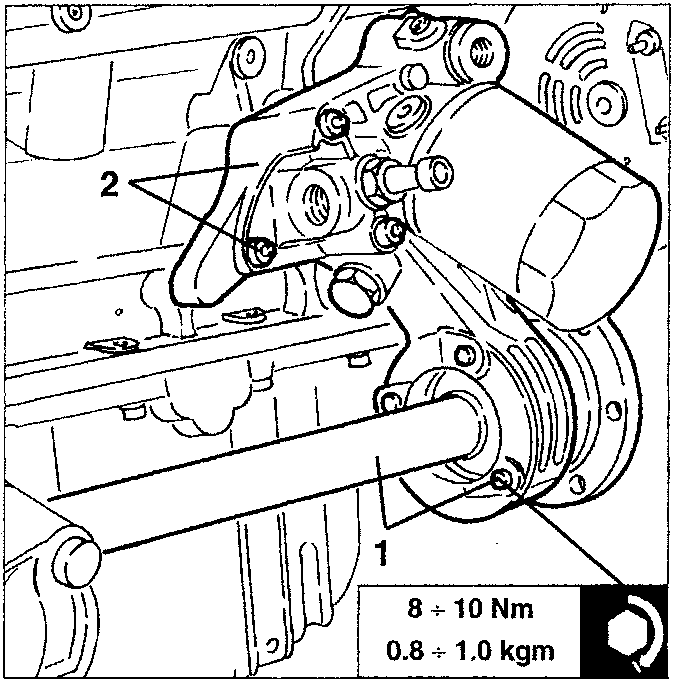

1. Slacken the fastening screws and withdraw the intermediate shaft.

• Remove the dust ring.

1. Slacken the fastening nuts and remove the oil filter support complete.

8 ÷ 10 Nm
0.8 ÷ 1.0 kgm
