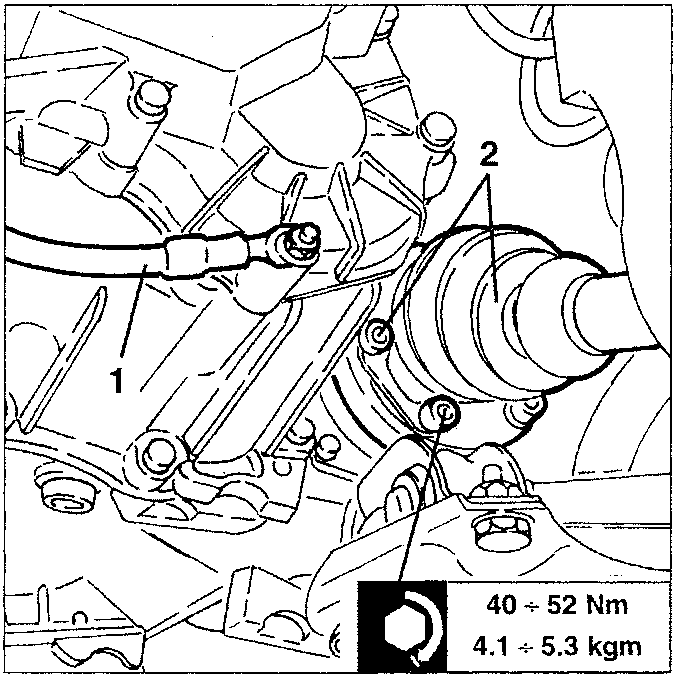

1. Disconnect the earth braid from the gearbox rear cover.
   2. Slacken the fastening bolts and disconnect the axle shafts.

1. earth braid
2. fastening bolt

40 ÷ 52 Nm
4.1 ÷ 5.3 kgm

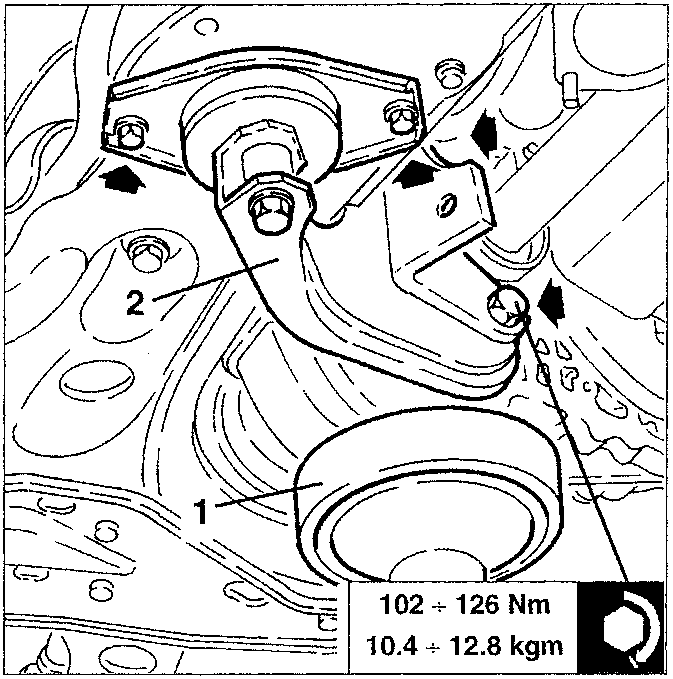

1. Position a hydraulic jack under the gearbox as illustrated.
   2. Slacken the fastening screws and remove the powerplant rear support.

1. powerplant rear support
2. fastening screw

102 ÷ 126 Nm
10.4 ÷ 12.8 kgm

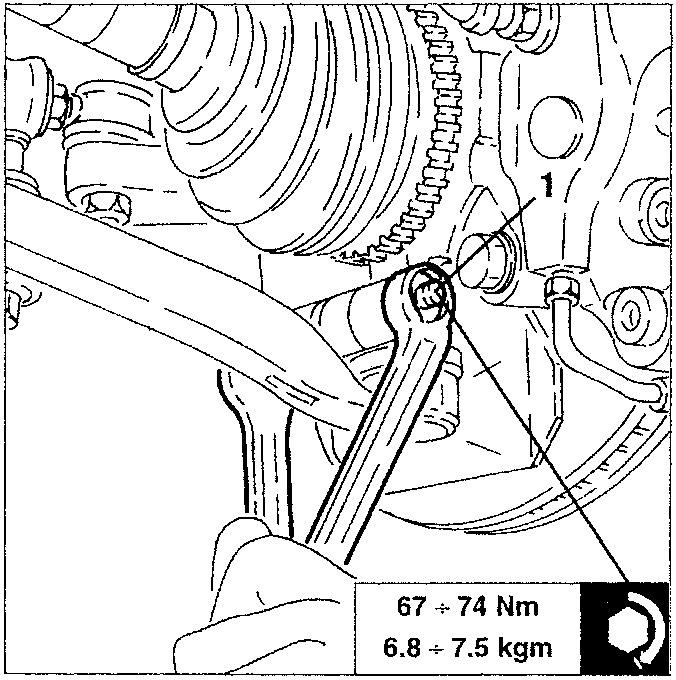

1. Slacken the bolts fastening the wishbones to the wheel uprights.

1. wishbone bolt

67 ÷ 74 Nm
6.8 ÷ 7.5 kgm

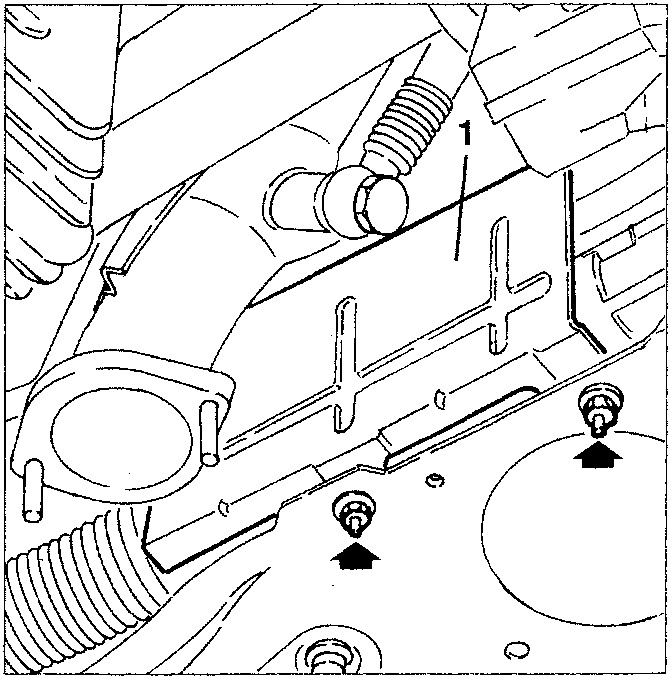

1. Slacken the fastenings and remove the heat shield from the power steering box.

1. heat shield
