Variants – 3.0 V6 24VDescription · page 3 of 16
  1. Slacken the fastening screws and remove the air cleaner container complete with support bracket.

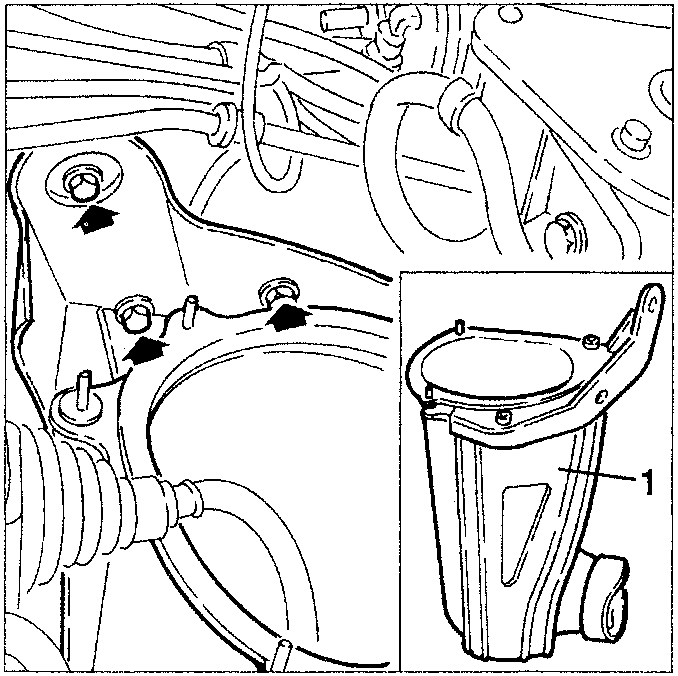

Air cleaner container with support bracket
  1. Air cleaner container
  2. Disconnect the coolant return sleeve from the radiator from the thermostatic cup.

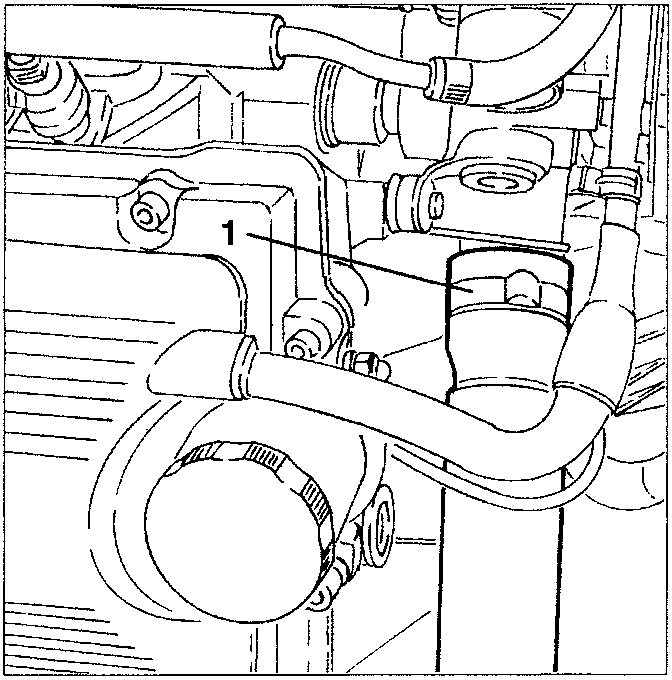

Coolant return sleeve disconnected from radiator
  1. Coolant return sleeve
  2. Disconnect the the coolant delivery sleeve to the radiator from the thermostatic cup.

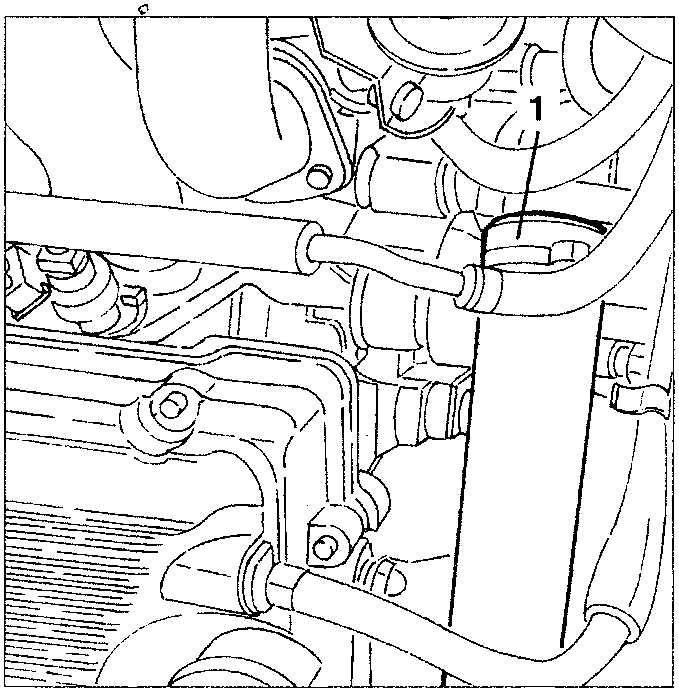

Coolant delivery sleeve disconnected from radiator
  1. Coolant delivery sleeve
  2. Disconnect the throttle barrel coolant outlet pipe from the expansion tank.
    2. Slacken the fastening screws and remove the expansion tank complete with sleeve.
Expansion tank with coolant outlet pipe
  1. Expansion tank
  2. Coolant outlet pipe
