Variants – 3.0 V6 24VDescription · page 9 of 16

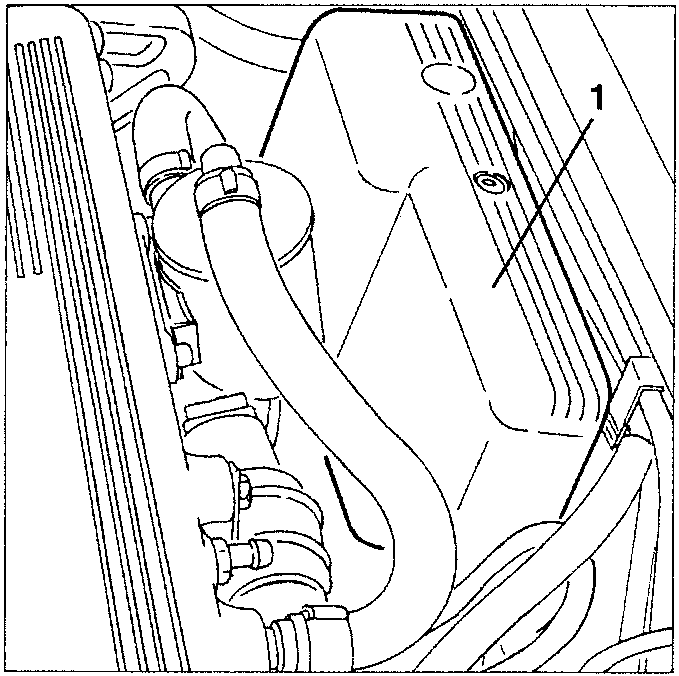

  1. Remove the plastic cover of the relays, fuses and electrical connections.
Engine compartment showing relays, fuses and electrical connections with part 1 indicated

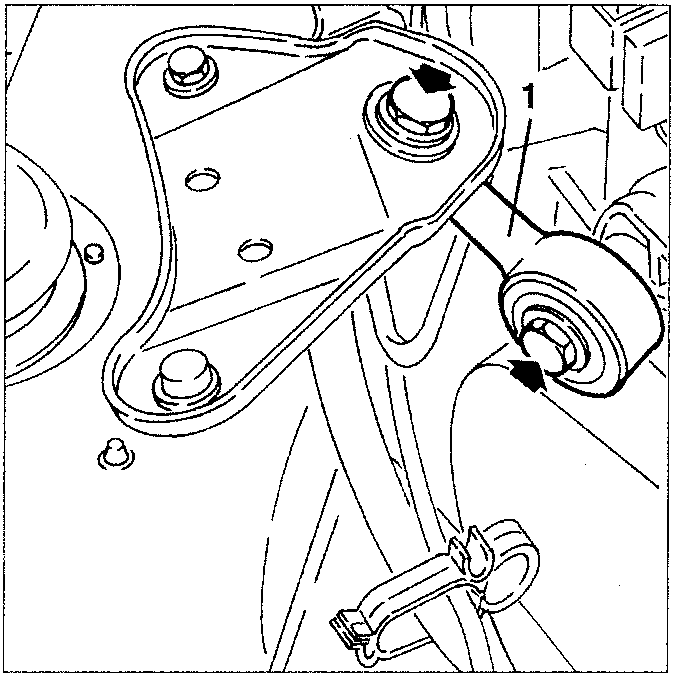

  1. Slacken the fastening screws and remove the engine stay rod.
Engine stay rod with fastening screws and part 1 indicated

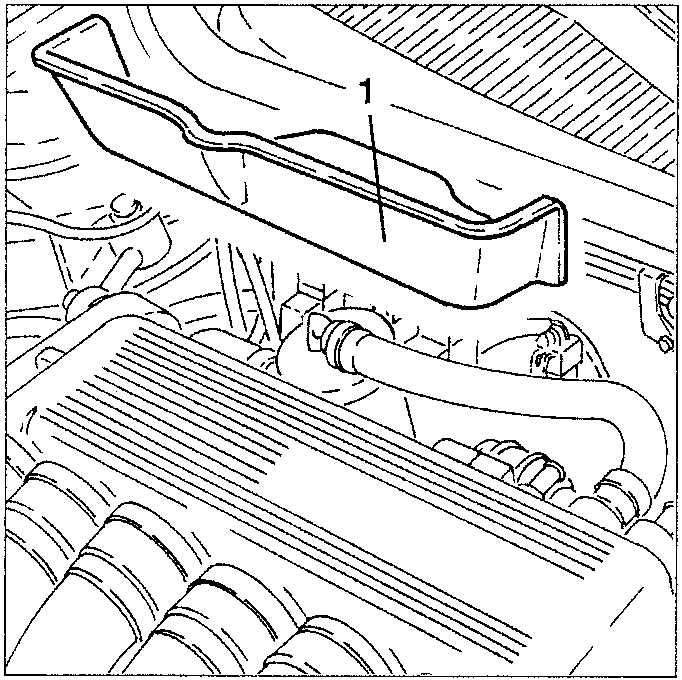

  1. Slacken the fasteners and remove the heat shield.
Heat shield with fasteners and part 1 indicated

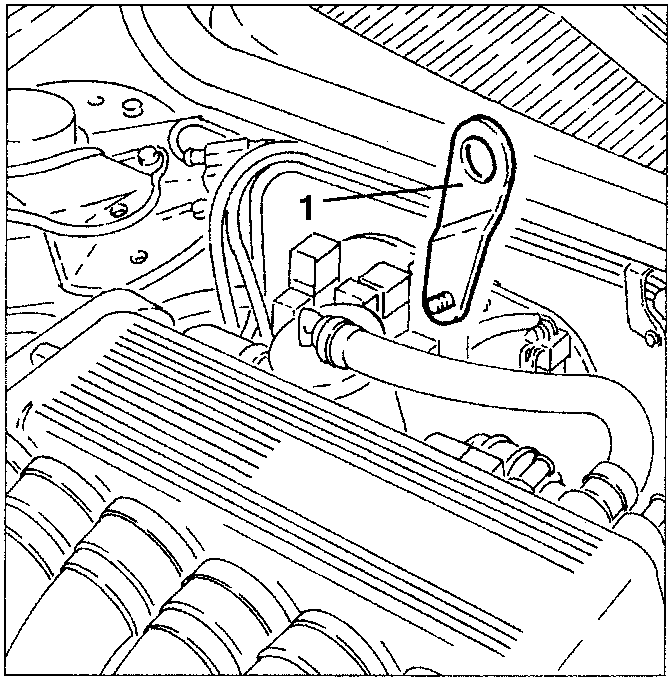

  1. On the right cylinder head assemble a special engine support bracket.
Special engine support bracket on right cylinder head with part 1 indicated
