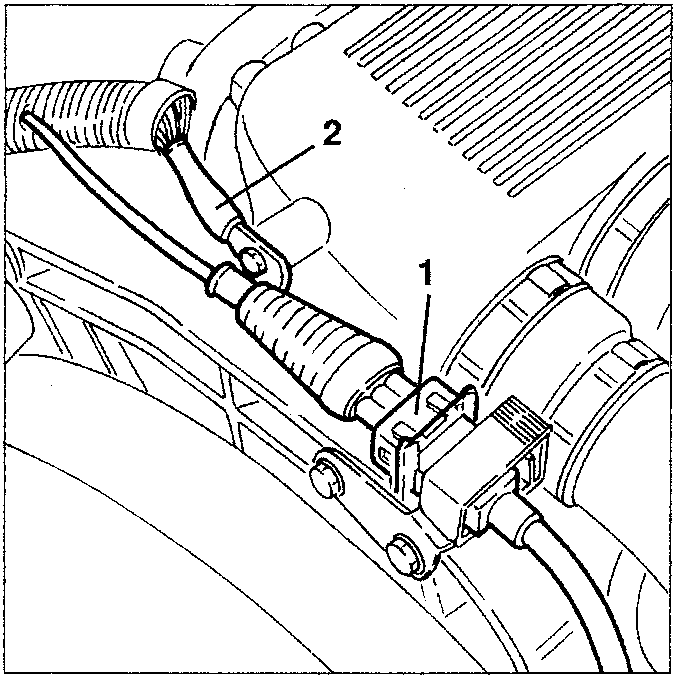

1. Disconnect the electrical connection of the front pinging sensor.
2. Disconnect the earth cable (front) from the intake box.

1. electrical connection
2. earth cable

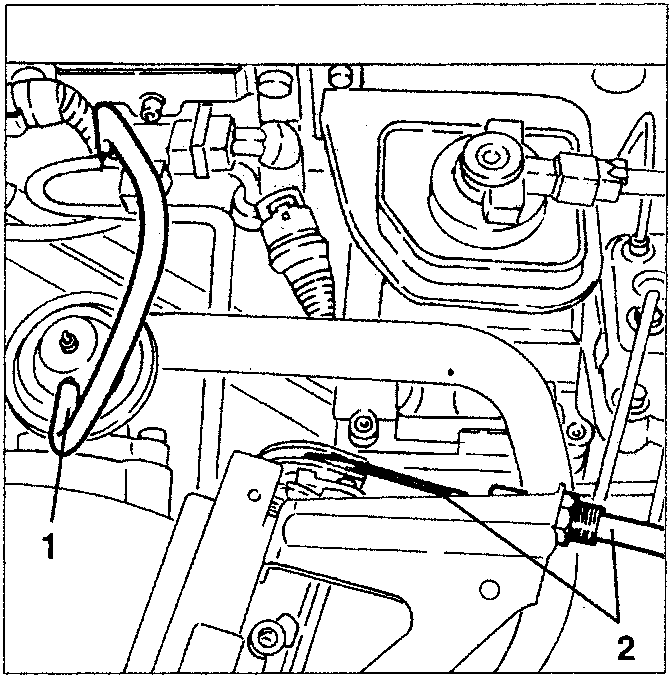

1. Disconnect the pneumatic signal inlet pipe leading from the solenoid valve from the E.G.R. valve.
2. Disconnect the accelerator cable from the throttle.

1. pneumatic signal inlet pipe
2. accelerator cable

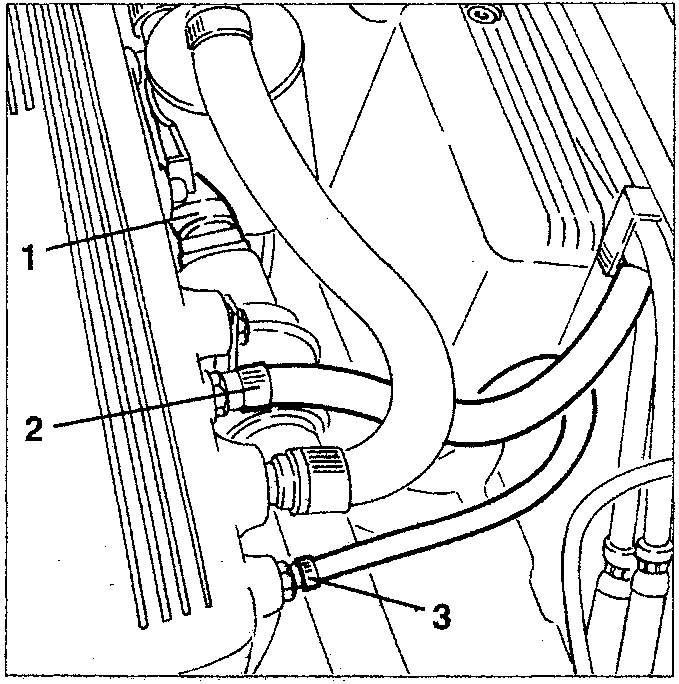

1. Disconnect the electrical connection from the constant idle device actuator.
2. Disconnect the fuel vapour recovery pipe from the intake box.
3. Disconnect the servobrake vacuum takeoff pipe from the intake box.

1. electrical connection
2. fuel vapour recovery pipe
3. servobrake vacuum takeoff pipe

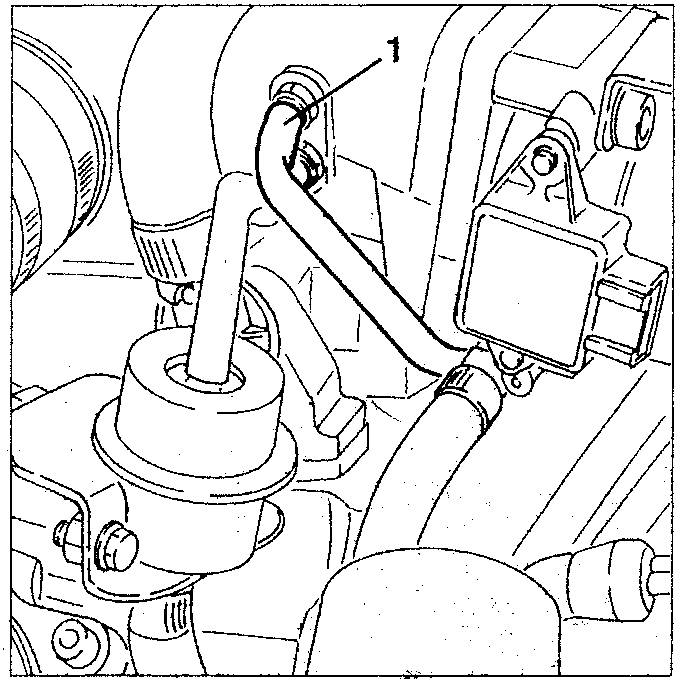

1. Disconnect the vacuum takeoff pipe for the E.G.R. modulation solenoid valve from the intake box.

1. vacuum takeoff pipe
