Description (page 7 of 16)

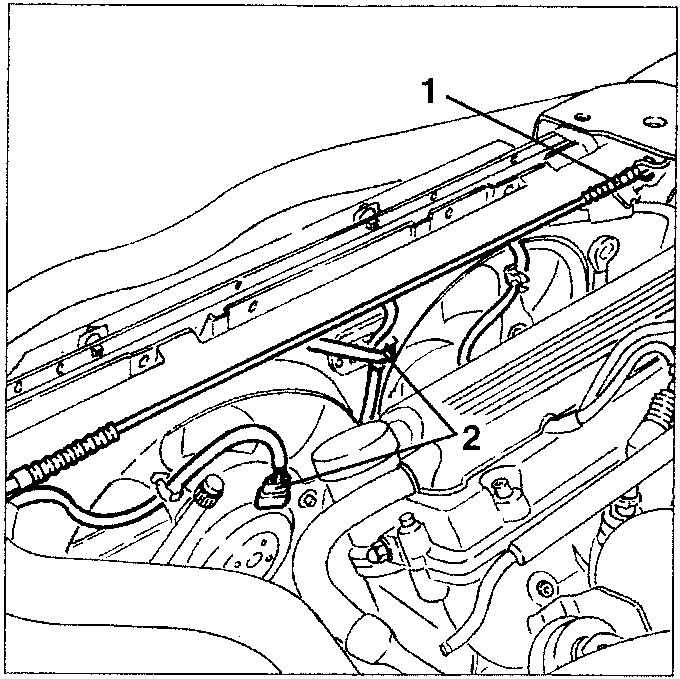

1. Disconnect the bonnet opening cables and move it aside to prevent it from hindering the following operations.

• Disconnect the electrical connection for supplying the electromagnetic joint of the conditioner compressor.

2. Disconnect the electrical connections from the fans and additional resistances, then release the cables from the clamps and groove.

1. Part 1
2. Part 2

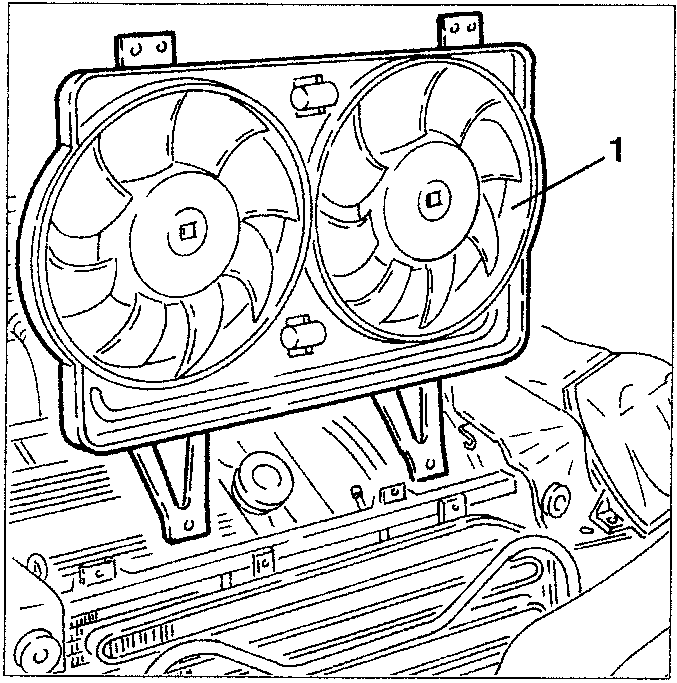

1. Slacken the fastening screws and remove the cooling fans withdrawing them upwards.

1. Part 1

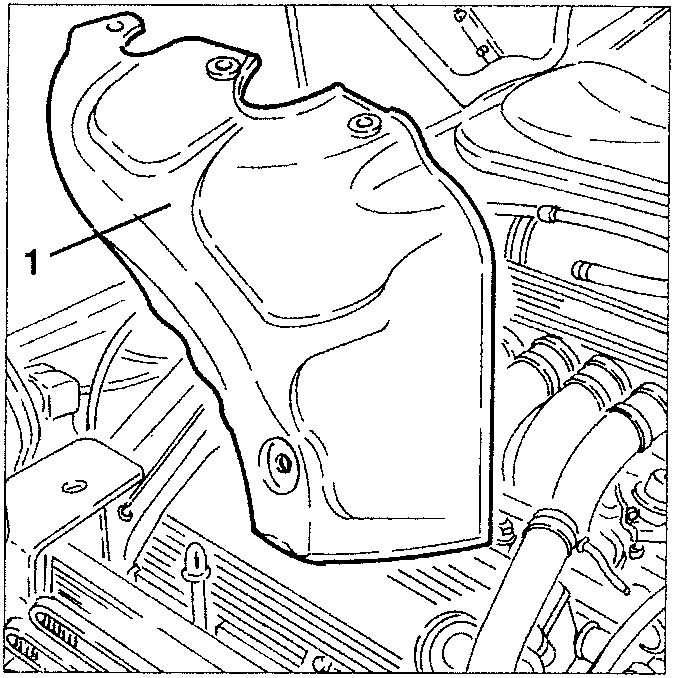

1. Slacken the fasteners and remove the heat shield from the exhaust manifold of the left cylinder head.

1. Part 1

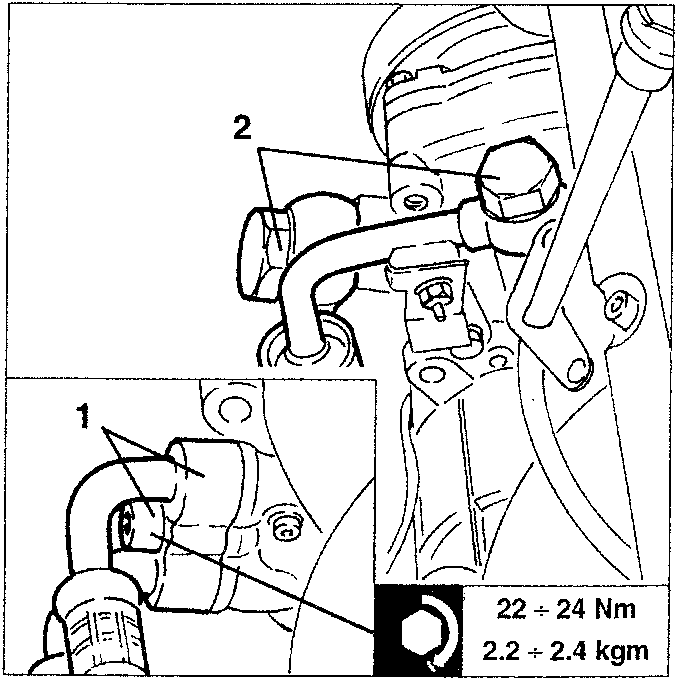

1. Slacken the fastening screw and disconnect the flange of the coolant fluid inlet and outlet pipes from the conditioner compressor (R134a).

• Using a suitable syringe drain the power steering tank oil.

2. Disconnect the unions of the oil intake and delivery pipes from the power steering pump.

22 ÷ 24 Nm
2.2 ÷ 2.4 kgm
