Variants – 3.0 V6 24VDescription · page 6 of 16

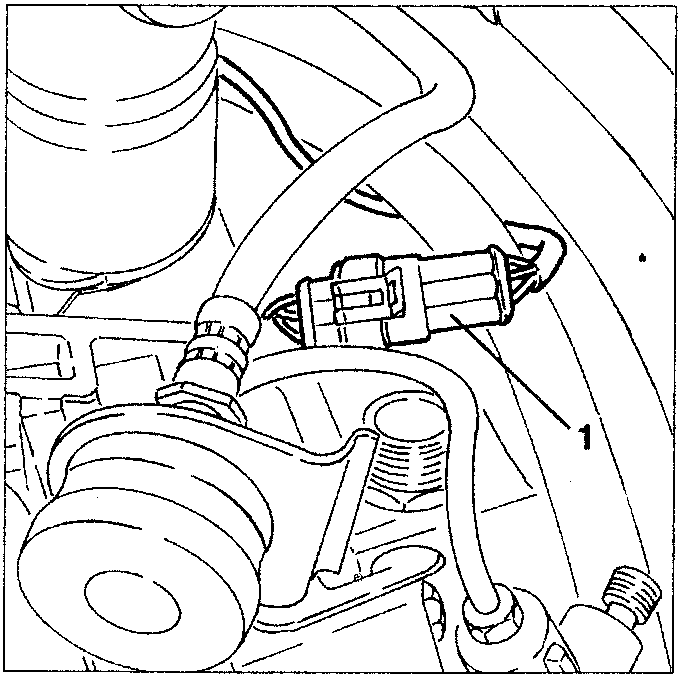

  1. Disconnect the electrical connection of the ta-chometric sensor.
Diagram showing electrical connection of tachometric sensor

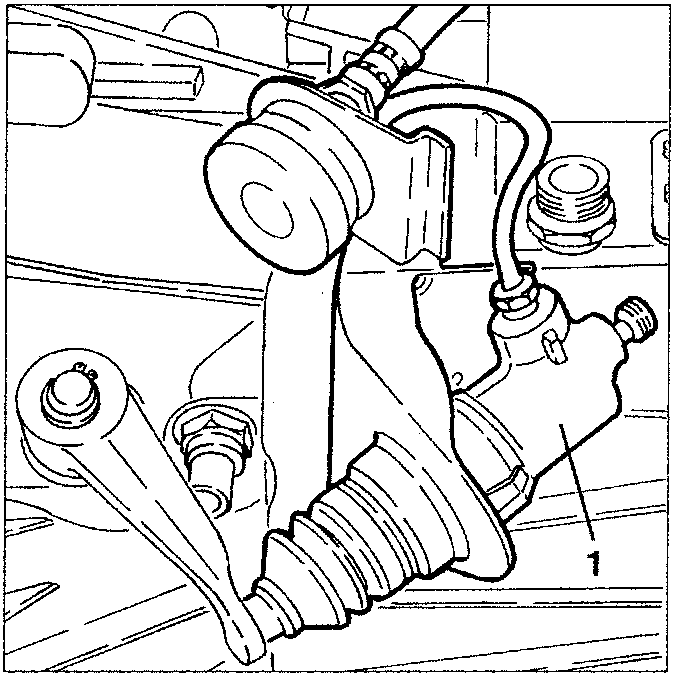

  1. Slacken the screws fastening the clutch control cylinder support, then move everything aside without disconnecting the pipes.
Diagram showing clutch control cylinder support and pipes

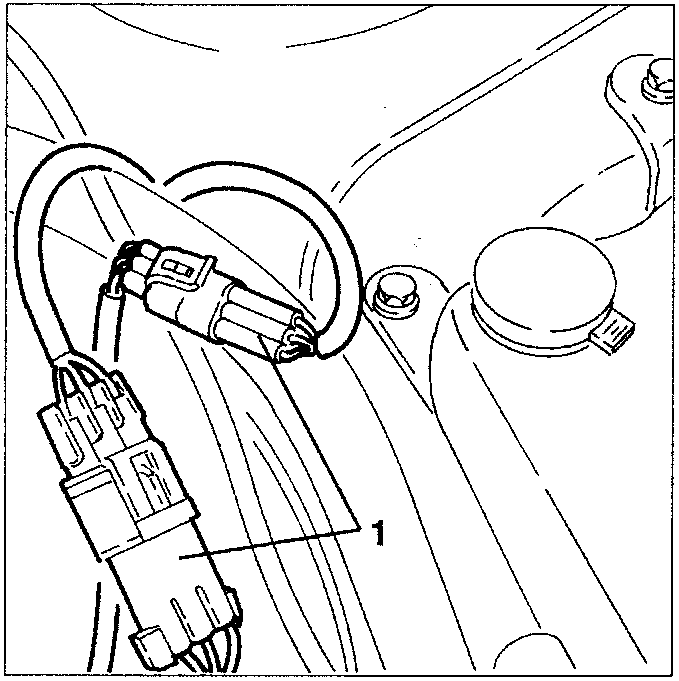

  1. Disconnect the two electrical connections of the front services cable loom.
Diagram showing front services cable loom connections

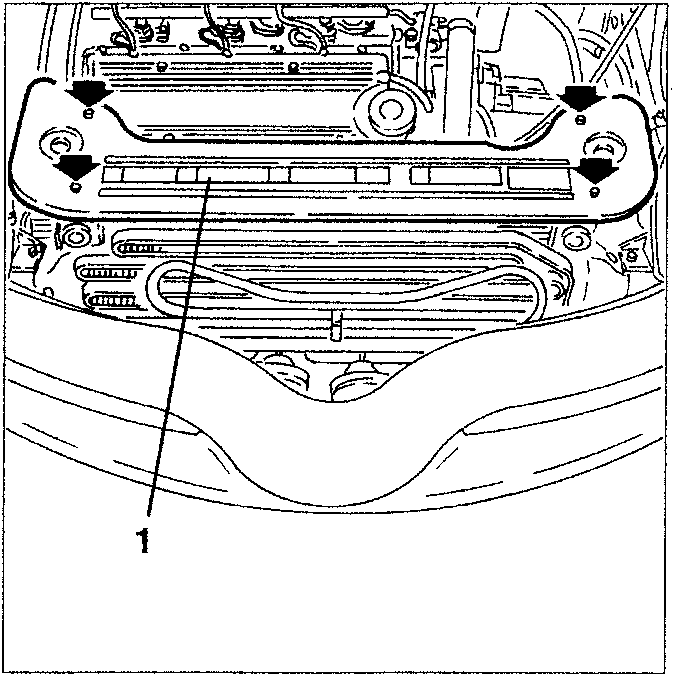

  1. Slacken the fastening screws and remove the upper radiator crossmember.
Diagram showing upper radiator crossmember
