Description (page 12 of 16)

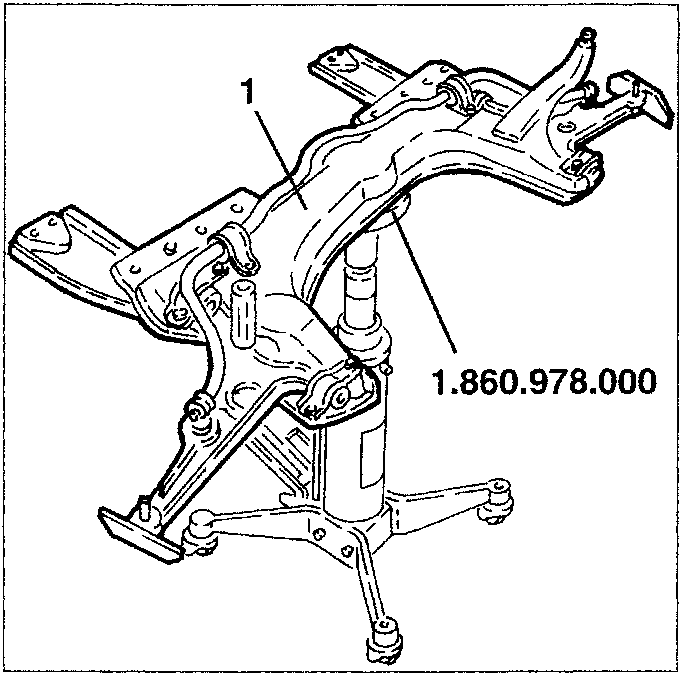

• Using a hydraulic jack support the crossmember using tool no. 1.860.978.000.

1. Slacken the screws and nuts fastening the crossmember, then remove it complete with wishbones, stabiliser bar and reinforcements.

1. 1 Hydraulic jack support tool 1.860.978.000

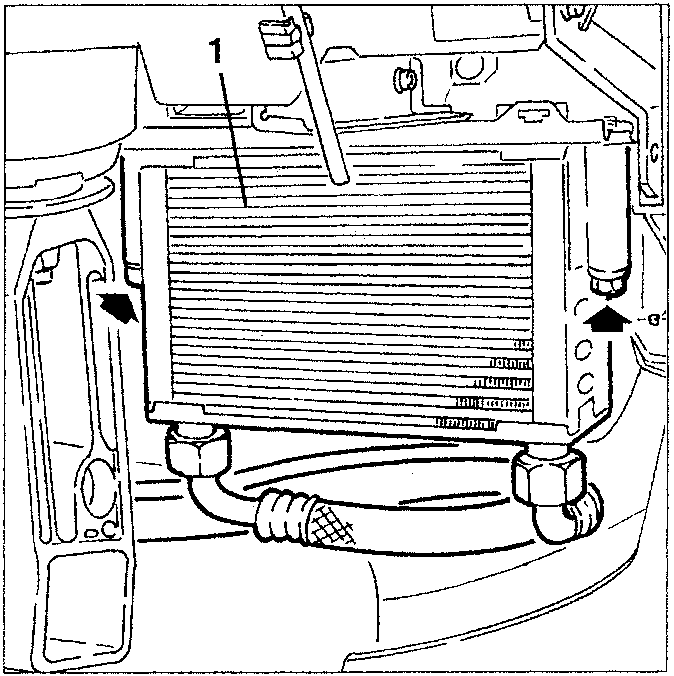

1. Slacken the fastening screws and remove the engine oil radiator from the support bracket, then without disconnecting the pipes, restrain it to the engine to prevent it from hindering the following operations.

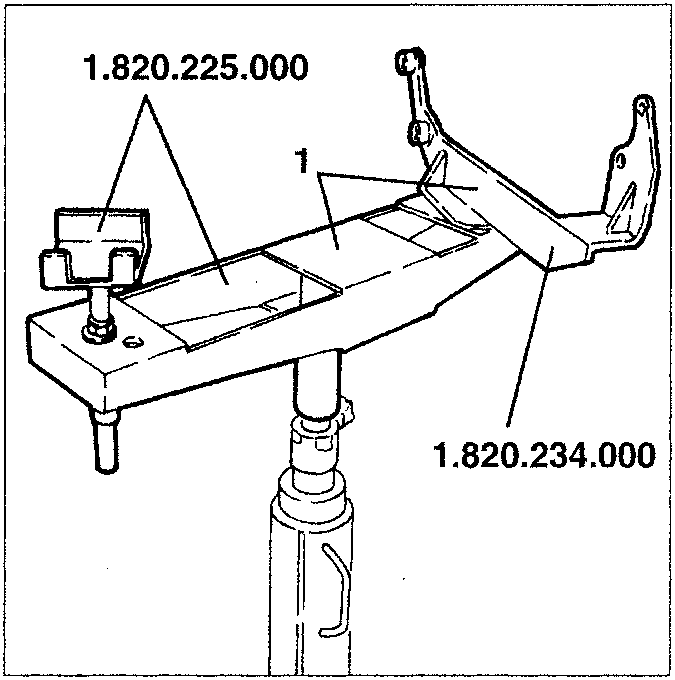

1. Position tool no. 1.820.225.000 complete with tool no. 1.820.234.000 on a hydraulic jack as illustrated.

NOTE: In order to balance the power unit on the support tool the jack should be placed in the centre hole of tool no. 1.820.225.000.

1. 1 Hydraulic jack support tool 1.820.225.000
2. 1 Hydraulic jack support tool 1.820.234.000

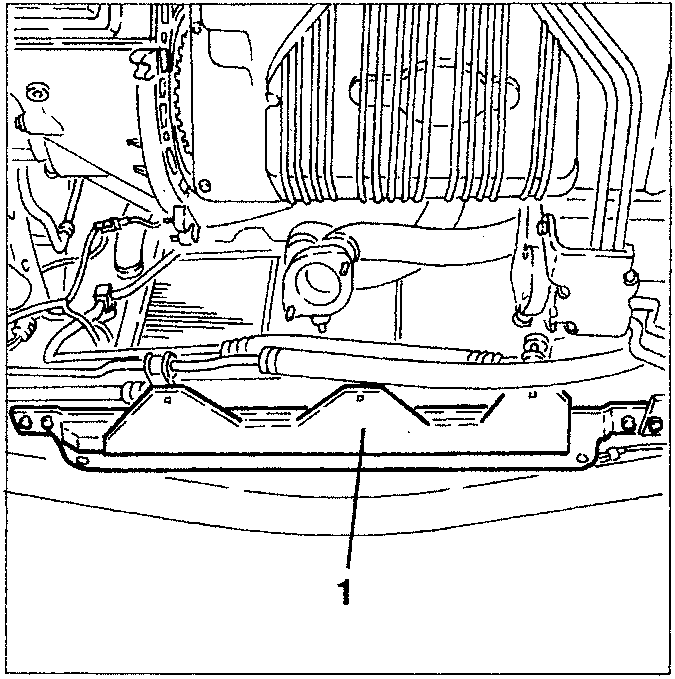

1. Slacken the fastening screws and remove the radiator lower cross rail.

1. 1 Radiator lower cross rail
