Description (page 13 of 16)

Make

Alfa Romeo

Model

GTV / Spider GTV and Spider (916) Factory Service Manual

Year

1995–2000

Section

Removal/Refitting

Variants – 3.0 V6 24VDescription · page 13 of 16

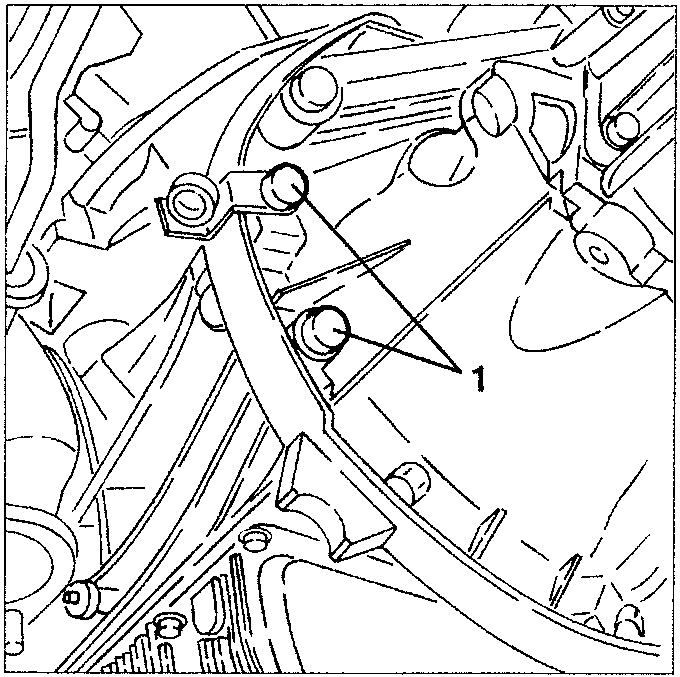

1. Remove the two screws illustrated for fastening the gearbox to the crankcase to be able to fasten the power unit support tool.

1. part name

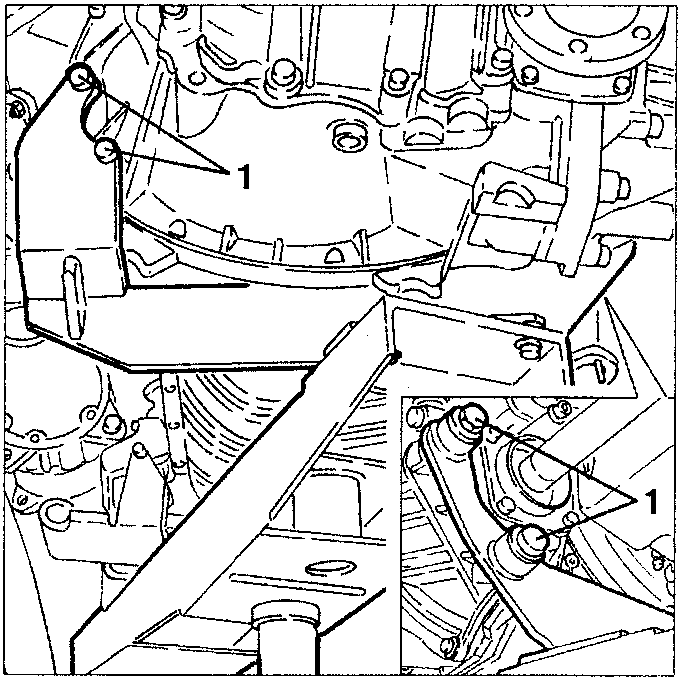

1. Position the hydraulic jack under the power unit and fasten the support tools as illustrated below.

1. part name

• Release the tierod of the safety cross rail of the power unit support installed previously from the support bracket.

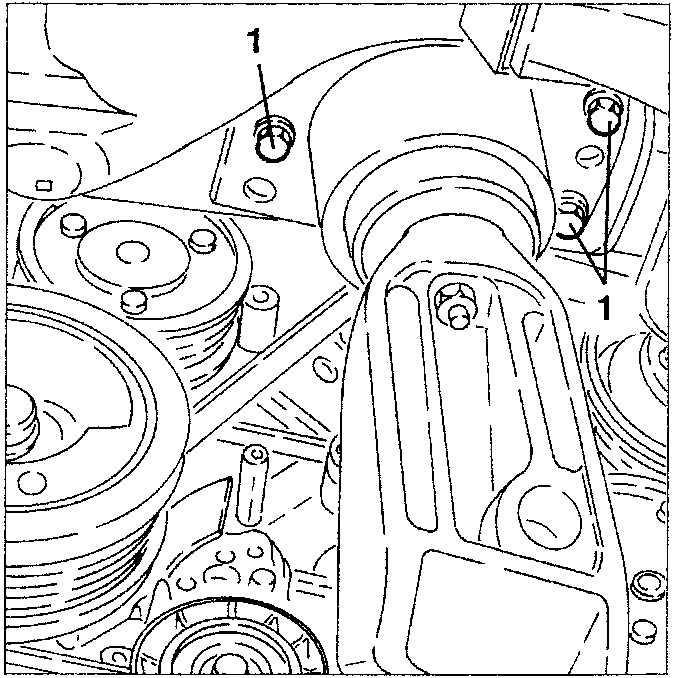

1. Slacken the three screws fastening the power unit support on the camshaft side.

1. part name
