Description (page 5 of 16)

Make

Alfa Romeo

Model

GTV / Spider GTV and Spider (916) Factory Service Manual

Year

1995–2000

Section

Removal/Refitting

Variants – 3.0 V6 24VDescription · page 5 of 16

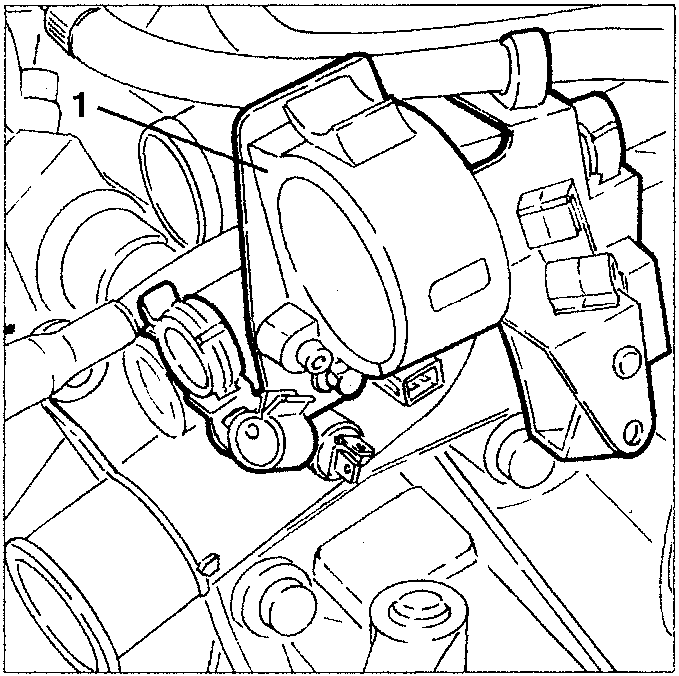

1. Slacken the fasteners and remove the injection wiring connector supports and pipe fasteners.

1. part name

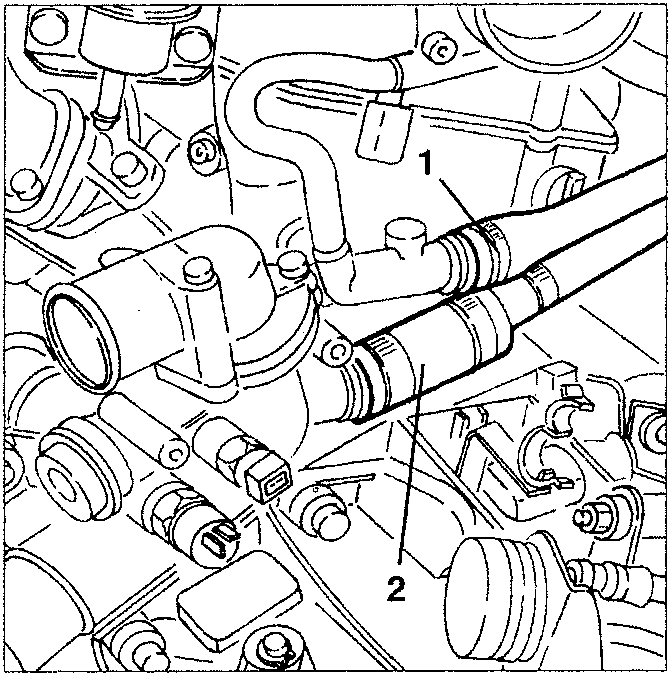

1. Disconnect from the union on the cylinder head the coolant delivery sleeve to the climate control system heater.
2. Disconnect from the thermostatic cup the coolant fluid return sleeve from the climate control system heater.

1. part name
2. part name

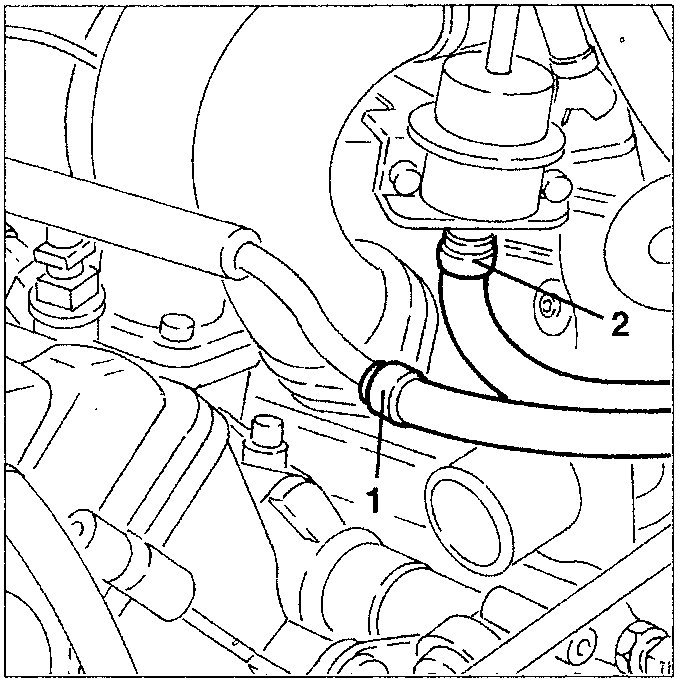

1. Disconnect the fuel delivery pipe from the distributor manifold.
2. Disconnect the excess fuel return pipe to the tank from the pressure regulator.

1. part name
2. part name

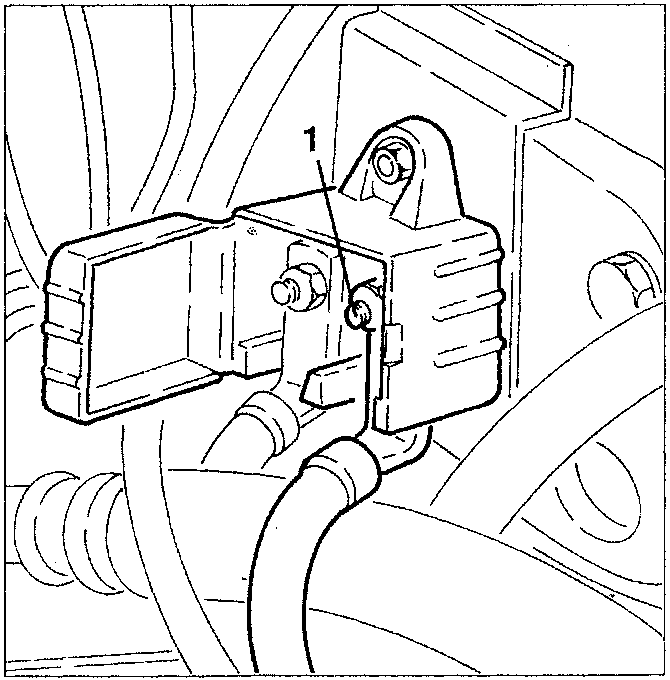

1. Working on the branch box, slacken the fastening nut and disconnect the earth terminal for the starter motor and alternator.

1. part name

12 General
