Description (page 10 of 16)
- Make
- Alfa Romeo
- Model
- GTV / Spider GTV and Spider (916) Factory Service Manual
- Year
- 1995–2000
- Section
- Removal/Refitting
Variants – 3.0 V6 24VDescription · page 10 of 16

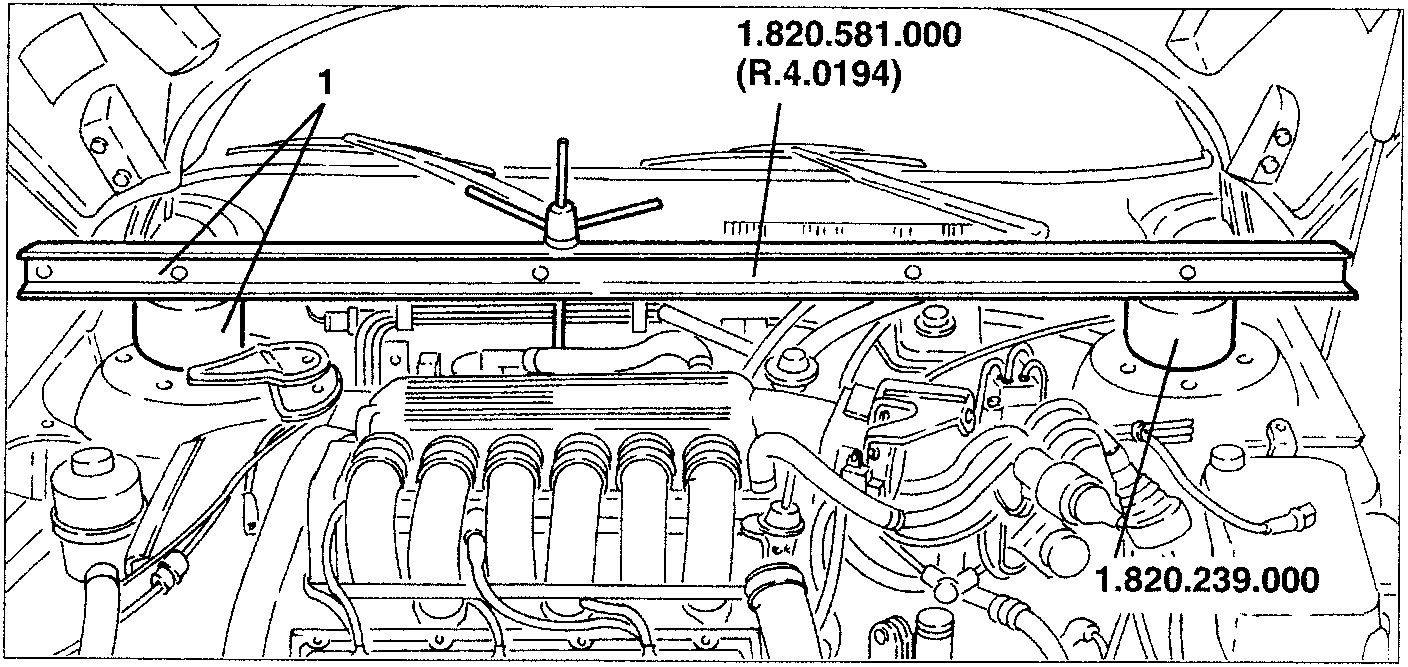

- Install cross rail no. 1.820.581.000 (R.4.0194) complete with supports 1.820.239.000 to support the power unit.

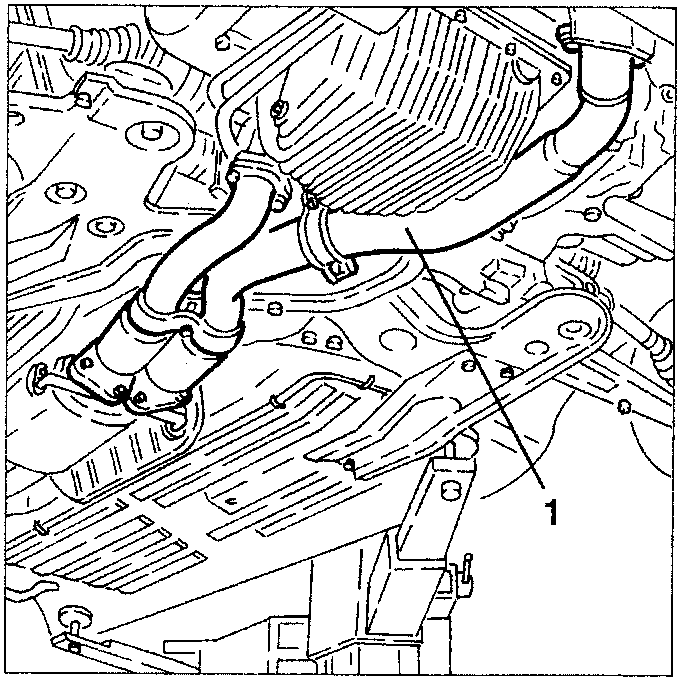

- Raise the car and remove the front section of the exhaust pipe.

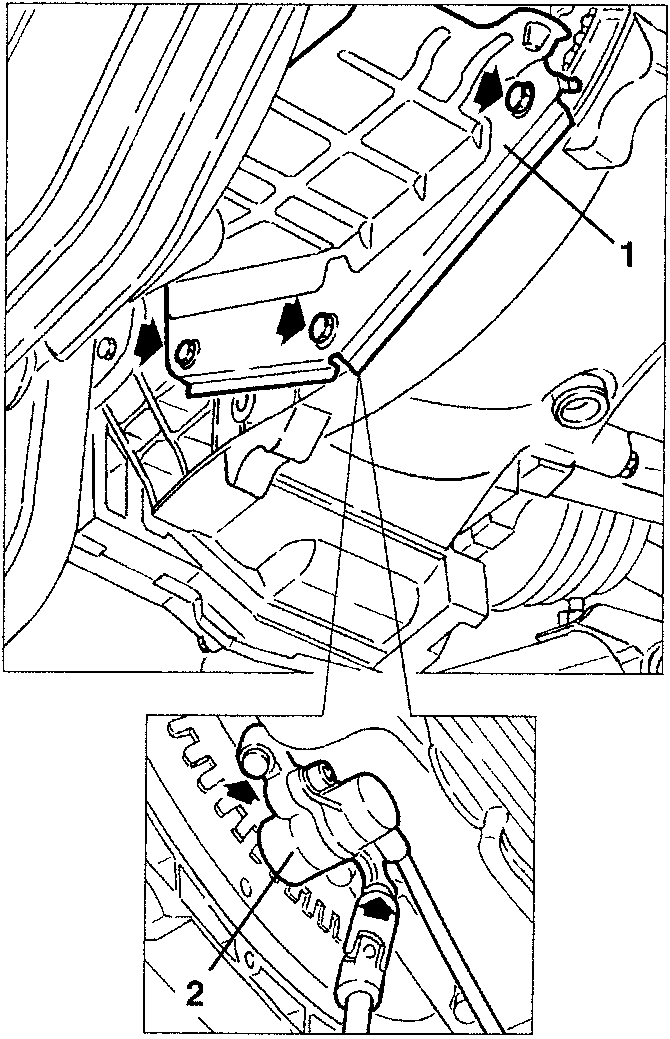

- Slacken the fastening screws and remove the flywheel cover.
2. Slacken the fastening screws and remove the rpm and timing sensor.
