Description (page 2 of 16)

Make

Alfa Romeo

Model

GTV / Spider GTV and Spider (916) Factory Service Manual

Year

1995–2000

Section

Removal/Refitting

Variants – 3.0 V6 24VDescription · page 2 of 16

1. Remove the fastening button of the first section of corrugated sleeve to the resounder.
2. Slacken the two fastening clamps and remove the second section of the corrugated sleeve complete with resonators.

1. part name
2. part name

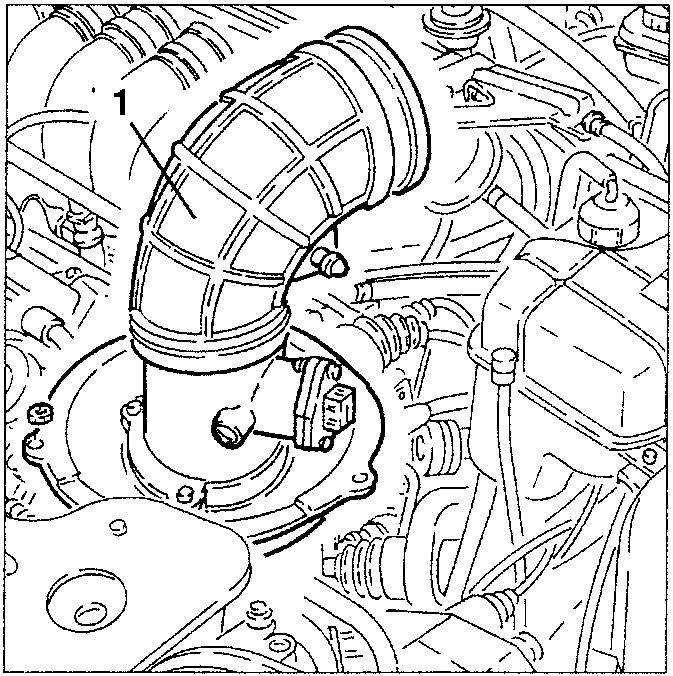

1. Slacken the three fastening nuts and remove the air cleaner cover complete with hot film air flow meter and the first section of the corrugated sleeve.

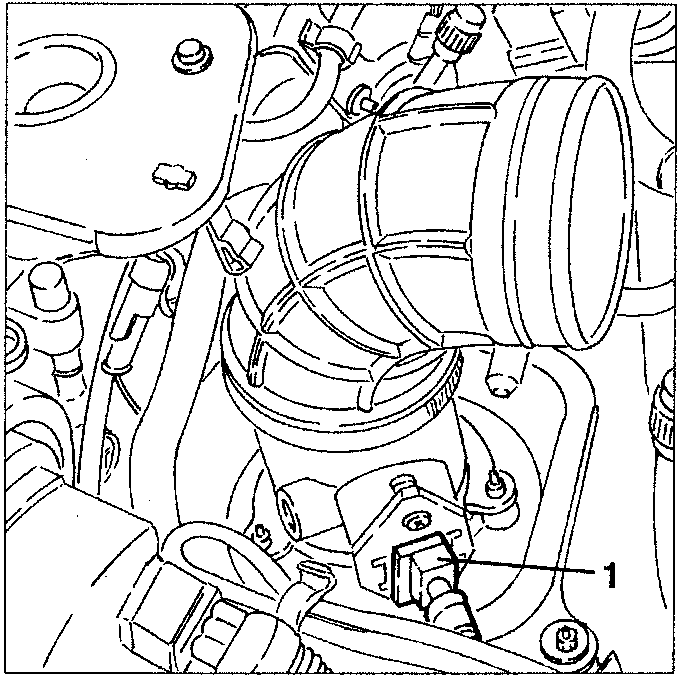

1. Disconnect the electrical connection from the hot film air flow meter.

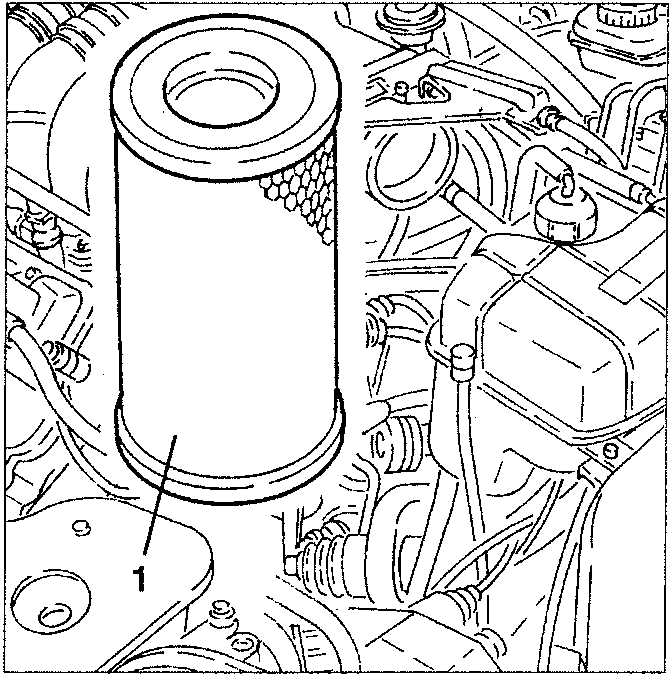

1. Remove the filtering element with its duct.
