WARNING: For handling the power unit use a hydraulic hoist after releasing it from the hydraulic jack.

• Lower the hydraulic lift and position the power unit on a special work bench.

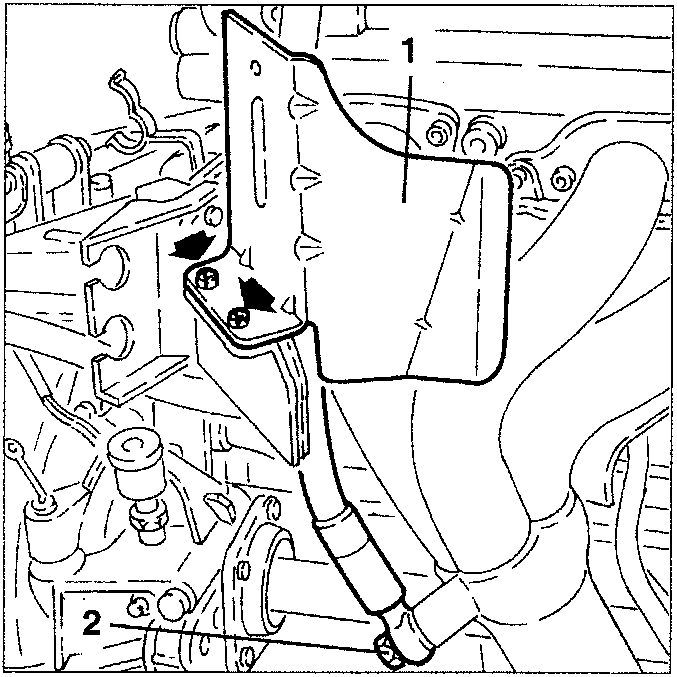

  1. Slacken the fastenings and remove the upper heat shield from the exhaust manifold.
  2. Disconnect the the union of the gas takeoff pipe for the E.G.R. valve from the manifold.

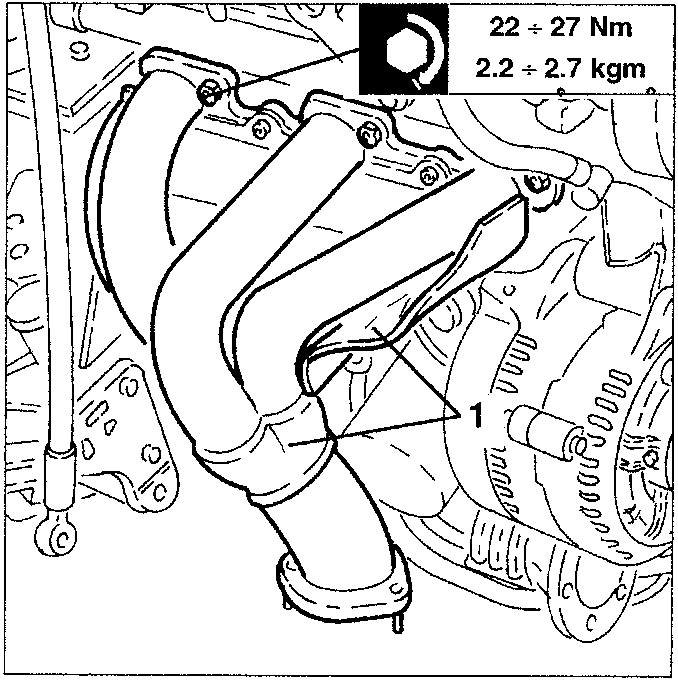

1. Slacken the fasteners and remove the exhaust manifold complete with heat shield for starter motor. - Remove the seals.

22 ÷ 27 Nm
2.2 ÷ 2.7 kgm

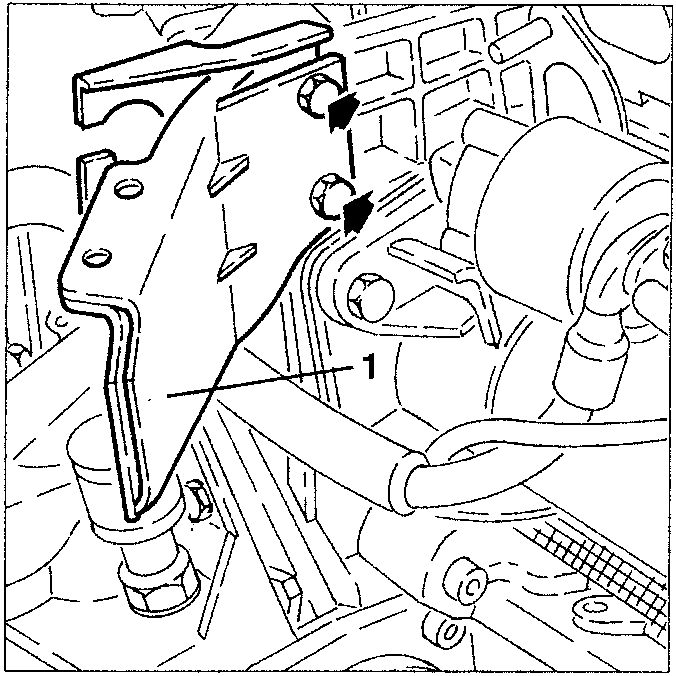

1. Slacken the two fastening screws and remove the gears control cable support bracket complete with lower heat shield.

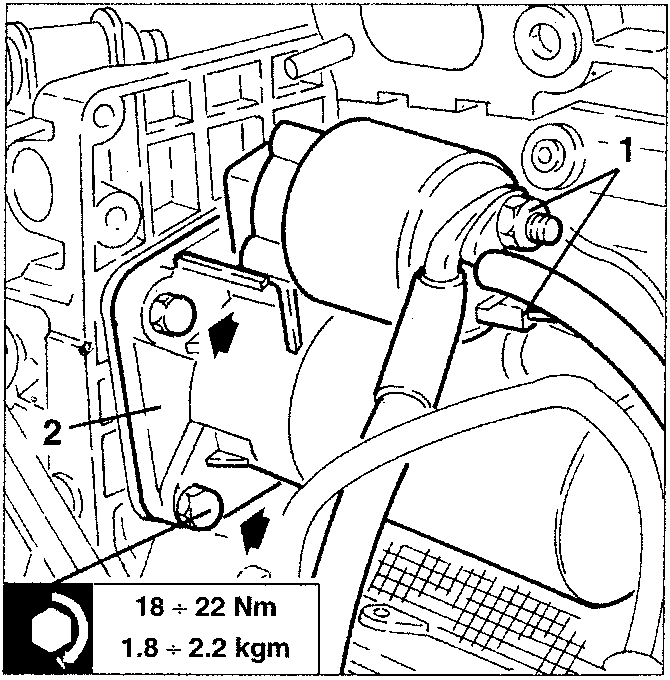

1. Disconnect the electrical connections from the starter motor. 2. Slacken the three fastening screws and remove the starter motor.

18 ÷ 22 Nm
1.8 ÷ 2.2 kgm
