CYLINDER HEADS

NOTE: In the car it is only possible to remove the right cylinder head proceeding as described below. When needing to remove the left cylinder head, it is necessary to remove the power unit (see specific paragraph).

REMOVAL/REFITTING RIGHT CYLINDER HEAD

  • Set the car on a lift.
    - Disconnect the battery (-) terminal.
  1. Remove the right front wheel.
  2. Remove the engine compartment trim.

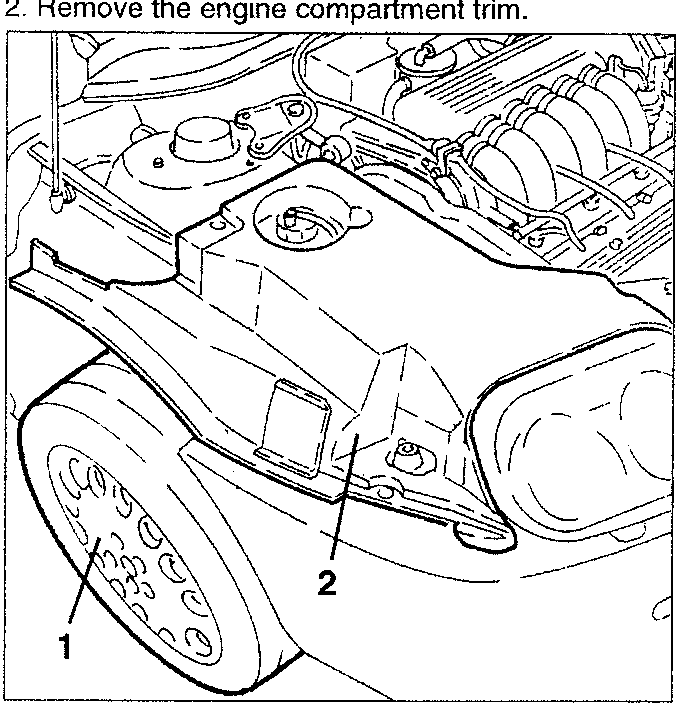

Right front wheel and engine compartment trim
  1. Slacken the two fastening screws, remove the plastic button and remove the right front wheel house and flap.

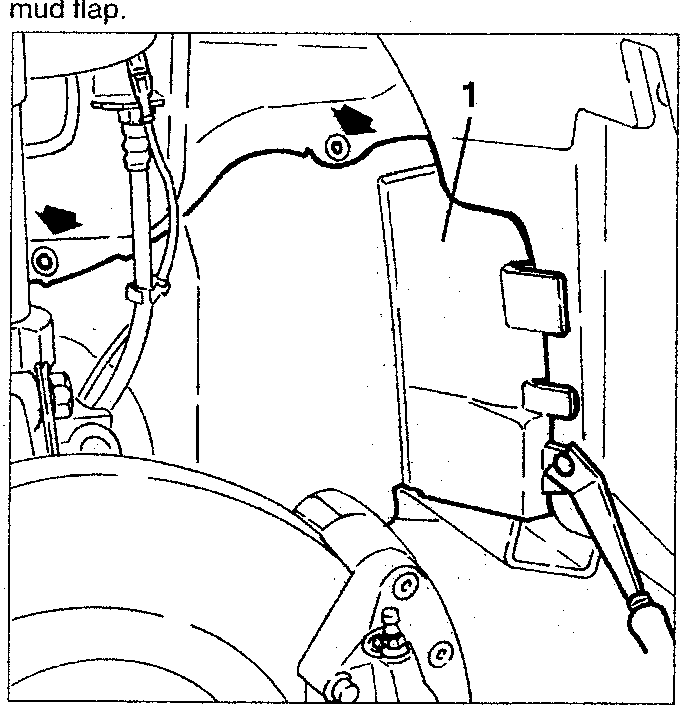

Fastening screws and plastic button for right front wheel house

REMOVAL/REFITTING LEFT CYLINDER HEAD

  1. Slacken the fastenings and remove the right front wheel house.

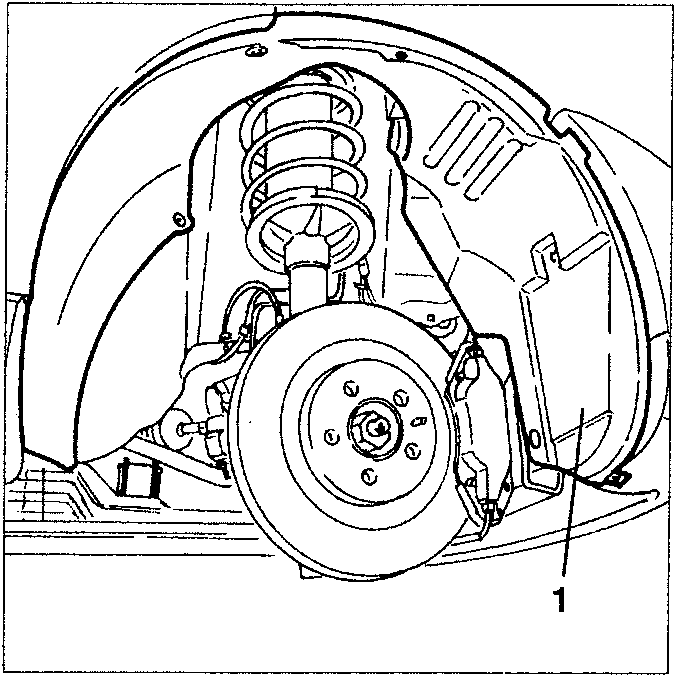

Right front wheel house removal
  1. Raise the car and remove the engine coolant fluid, disconnecting the radiator outlet sleeve and retrieve it in a suitable container.

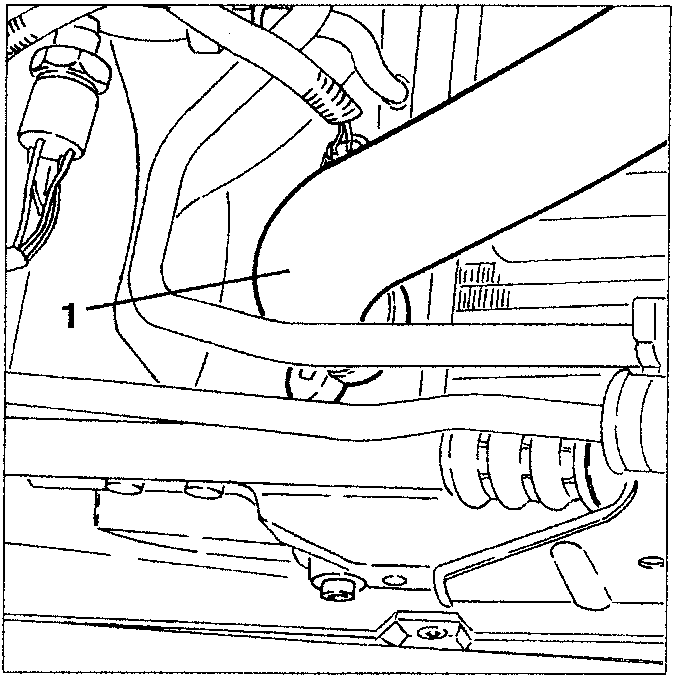

Radiator outlet sleeve disconnection
