OIL PUMP

REMOVING/REFITTING

  • Set the car on a lift.
  • Disconnect the battery(-) terminal.
  • Remove the right front wheel and mud flap.
  • Drain the engine oil (see Group 00).

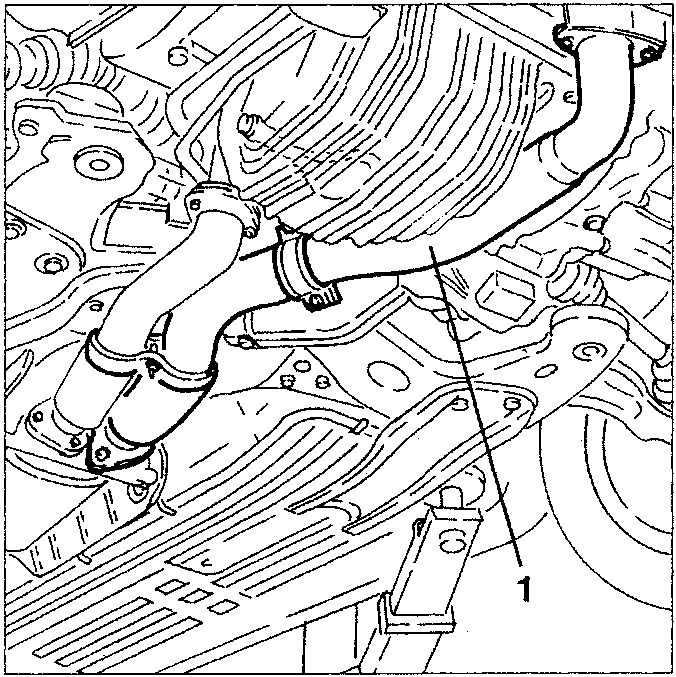

  1. Slacken the fastenings, then remove the front section of the exhaust pipe only from the left cylinder head.
Exhaust pipe section near left cylinder head

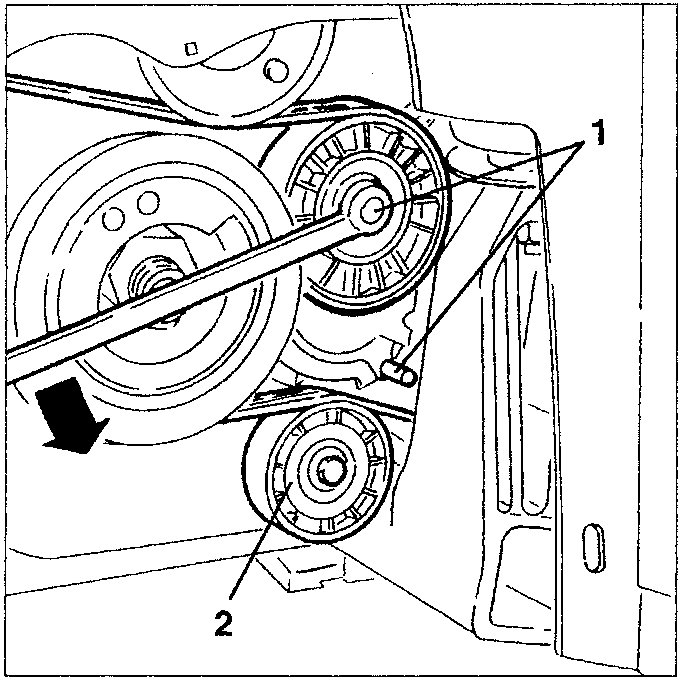

  1. Using a wrench on the screw fastening the belt tensioner pulley, overcome the force of the tensioner and lock it in this position (belt slack) inserting the special peg as illustrated.
  2. Slacken the fastening screw and remove the lower guide pulley of the auxiliary components drive belt.
Belt tensioner pulley with special peg and lower guide pulley

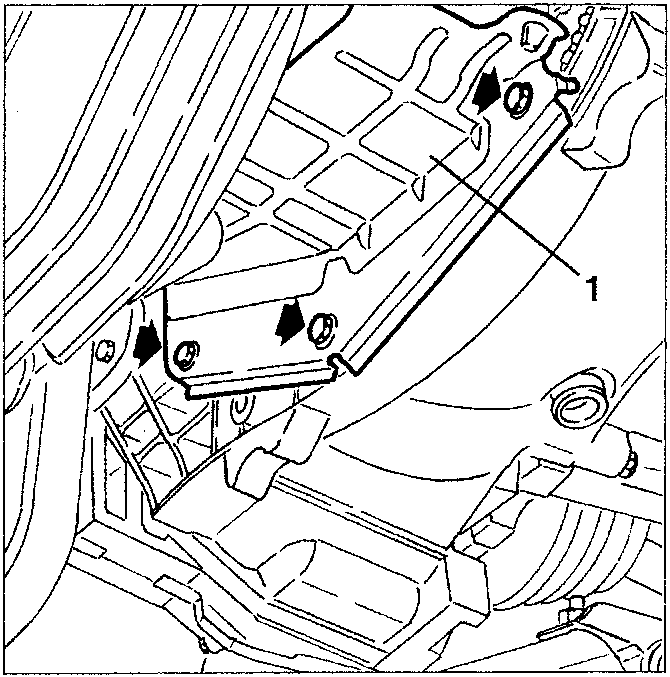

  1. Slacken the fastening screws and remove the flywheel guard.
Flywheel guard with fastening screws

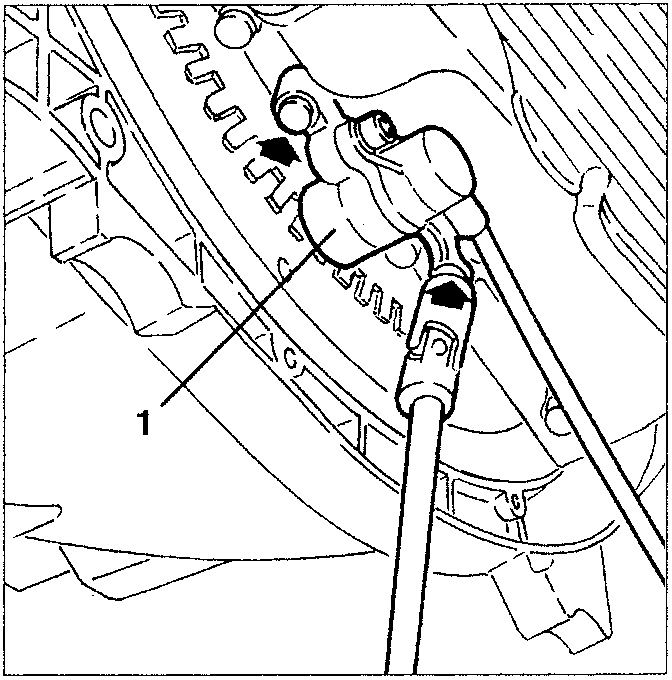

  1. Slacken the fastening screws and remove the rpm and timing sensor.
Rpm and timing sensor with fastening screws
