Oil pump (page 3 of 3)

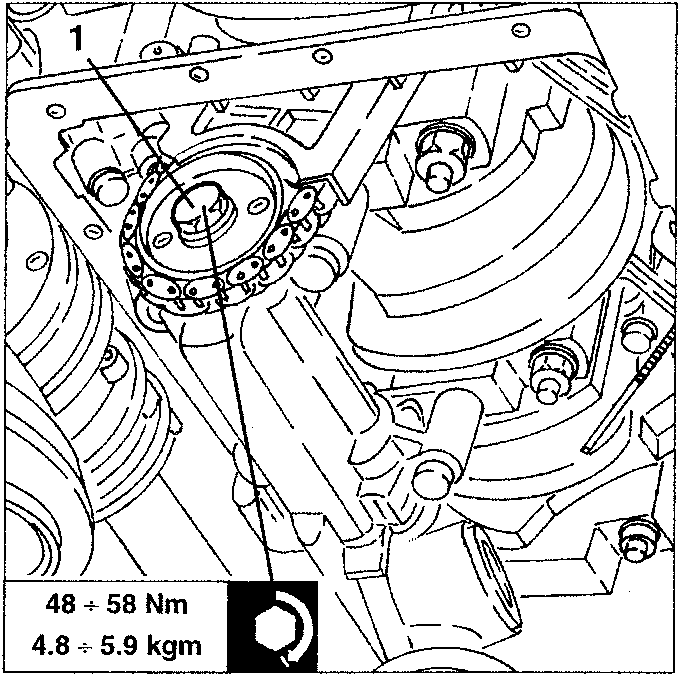

1. Slacken the fastening screw of the oil pump drive gear.

48 ÷ 58 Nm
4.8 ÷ 5.9 kgm

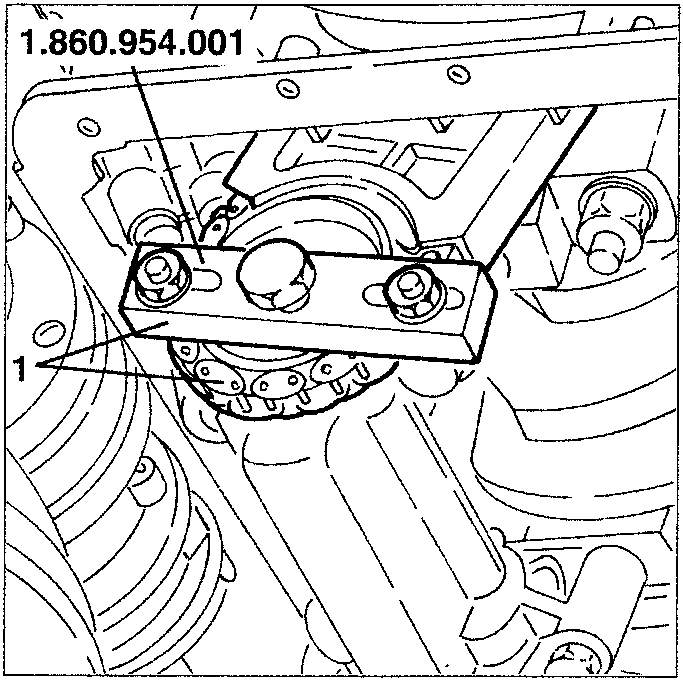

1. Using tool no. 1.860.954.001, remove the drive gear from the oil pump spindle.

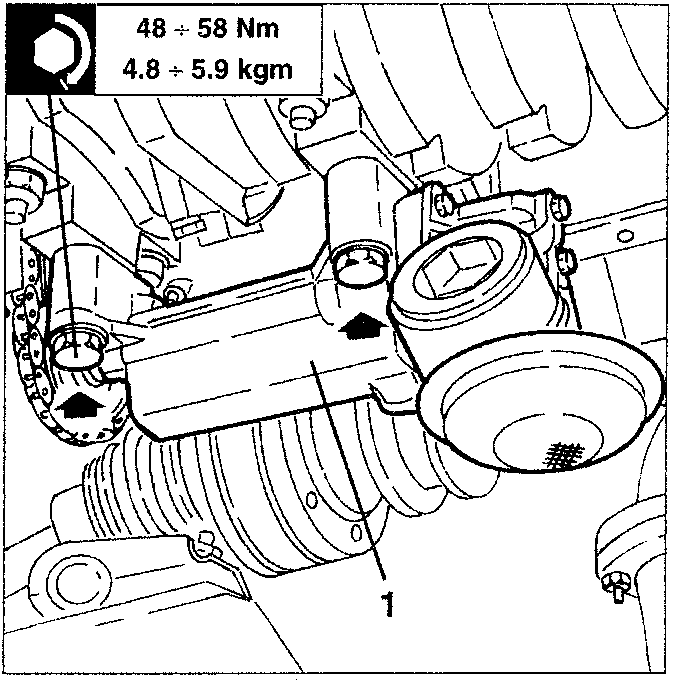

1. Slacken the fastening screws and remove the oil pump complete.

48 ÷ 58 Nm
4.8 ÷ 5.9 kgm

Refit reversing the sequence followed for removal and adhering to the following instructions.

• Remove any traces of sealant on the mating surfaces of the oil sump - crankcase.
• Use a dry cloth to eliminate traces of oil to avoid compromising the sealing.
• Continuously apply (without interruptions) a seam of silicone sealant taking care to join the end with the beginning well.

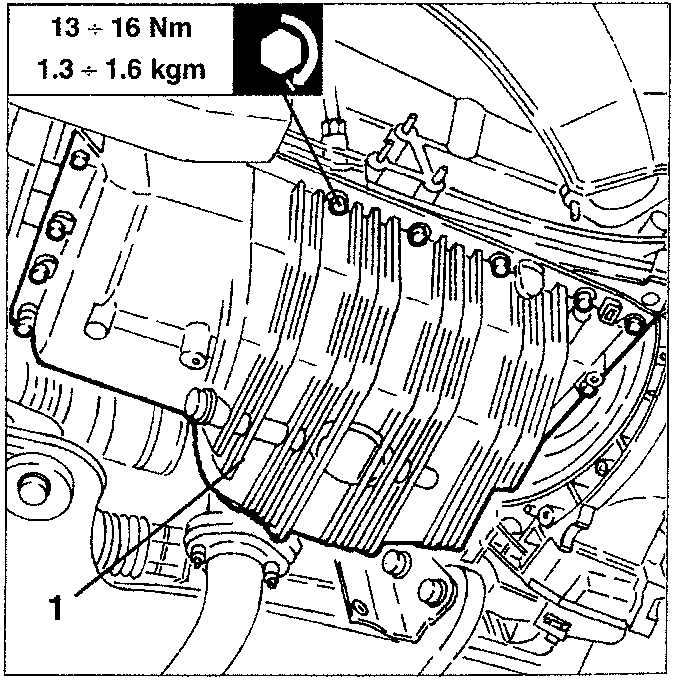

1. Position the oil sump avoiding horizontal movements which could remove the silicone sealant, then tighten the oil sump fastening screws to the specified torque.

13 ÷ 16 Nm
1.3 ÷ 1.6 kgm
