Alfa Romeo GTV and Spider (916) Factory Service Manual (1995-2000)12 · Variants – 3.0 V6 24V
12 · General

Refitting precautions

Make
Alfa Romeo
Model
GTV / Spider GTV and Spider (916) Factory Service Manual
Year
1995–2000
Section
Operations in vehicle (24V) › Refitting precautions
Variants – 3.0 V6 24VRefitting precautions · page 1 of 3

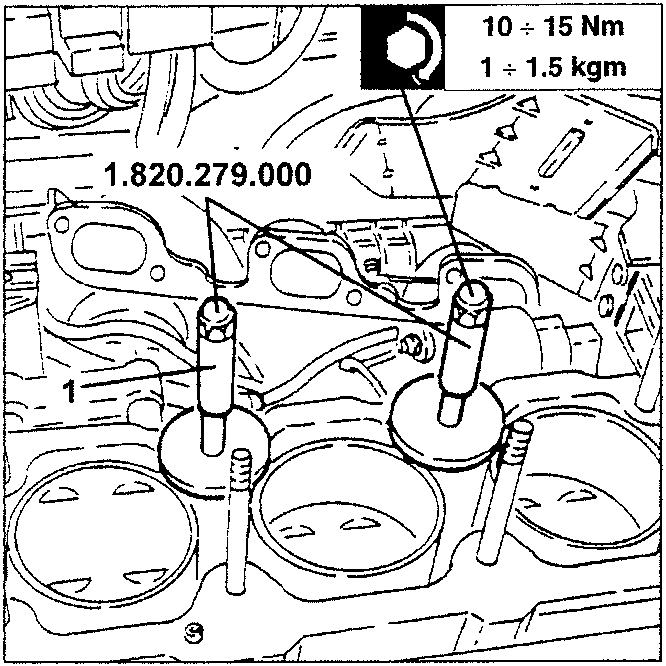

  1. Fit cylinder liner retainer no. 1.820.279.000 as shown in the figure.
Cylinder liner retainer installation with torque specifications

10 ÷ 15 Nm
1 ÷ 1.5 kgm

Engine block with cylinder head and retainer installed
  • Remove the previously fitted cylinder liner retainers no. 1.820.279.000.
  • Refit the right-hand cylinder head to the crankcase.
  • Lubricate threading, nuts and washers with engine oil and torque as shown below in the order shown in the figure.

NOTE: Use the tool and gauge no. 1.860.942.000 for angle torque.

REFITTING PRECAUTIONS

Reverse the removal sequence and attain to the following precautions.

  1. Fit templates no. 1.825.040.000 in the position printed on the templates in the place of camshaft bearings B and G after overhauling the removed cylinder head and before refitting it on the engine.

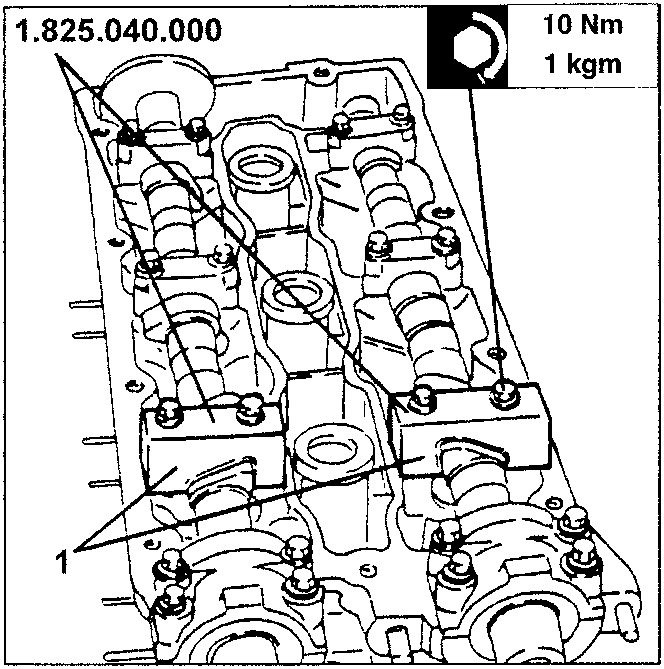

Cylinder head with templates installed

10 Nm
1 kgm

  1. Fit templates no. 1.825.040.000 in the position printed on the templates in the place of camshaft bearings 7 and 4.
Tightening procedure
Tighten all nuts at:24 ÷ 26 Nm
2.5 ÷ 2.7 kgm
Complete torque with additional:240° ± 2°

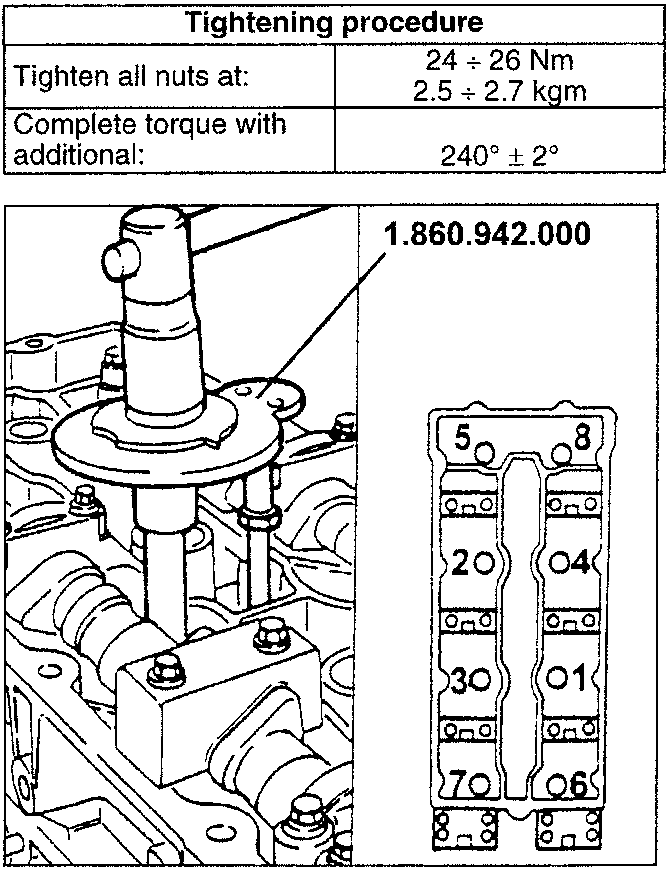

Tightening tool and gauge for angle torque
