Refitting precautions (page 3 of 3)

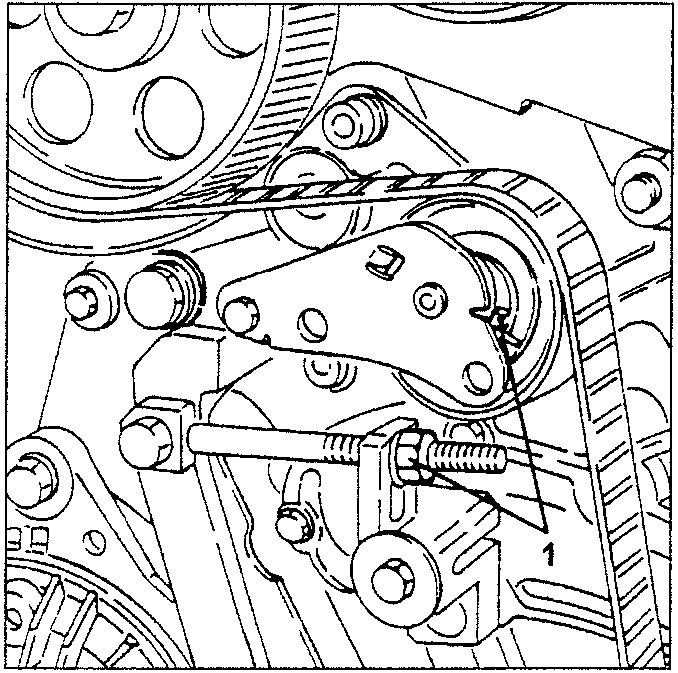

1. Take the mobile notch under the belt take-up fixed notch as shown in the figure.

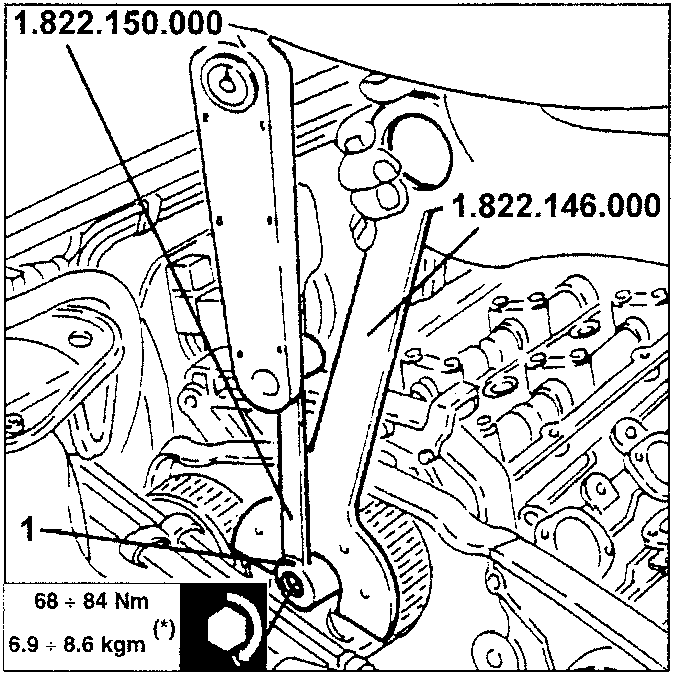

1. Use extension no. 1.822.150.000 and tool no. 1.822.146.000 to contrast torque. Fasten the camshaft drive pulley screws at the prescribed torque.

68 ÷ 84 Nm
6.9 ÷ 8.6 kgm (*)

(*) : Nominal value

• Remove the previously fitted templates no. 1.825.040.000. Fit the previously fitted bearings in their place and fasten the screws at the prescribed torque.
• Turn the crankshaft twice in the direction of revolution to fit the timing belt well.

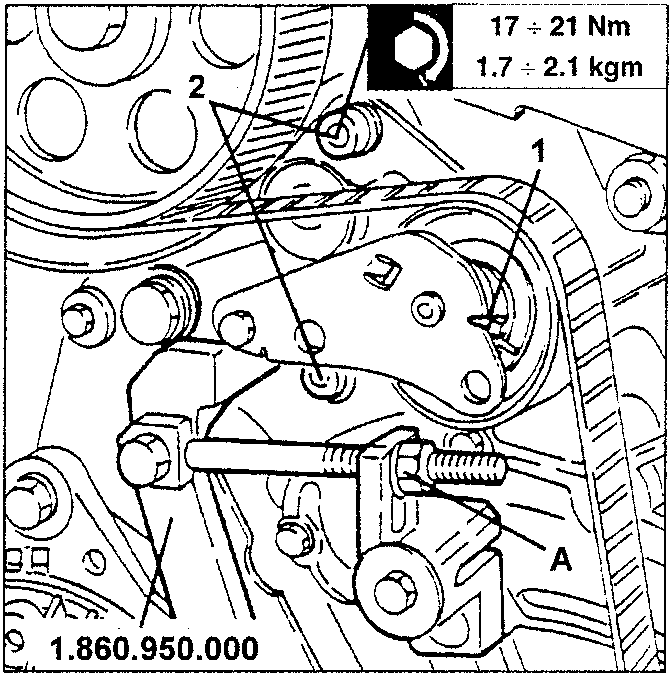

1. Check whether the fixed notch on the belt take-up coincides with the mobile notch. If not, loosen the belt take-up tension by turning nut (A) until the notches meet.
2. Torque the belt take-up fastening nuts as prescribed and remove belt tension tool no. 1.860.950.000.

17 ÷ 21 Nm
1.7 ÷ 2.1 kgm

• Complete refitting by reversing the removal sequence.
