Alfa Romeo GTV and Spider (916) Factory Service Manual (1995-2000)12 · Variants – 3.0 V6 24V
12 · General

Cylinder heads (page 12 of 12)

Make
Alfa Romeo
Model
GTV / Spider GTV and Spider (916) Factory Service Manual
Year
1995–2000
Section
Operations in vehicle (24V)
Variants – 3.0 V6 24VCylinder heads · page 12 of 12

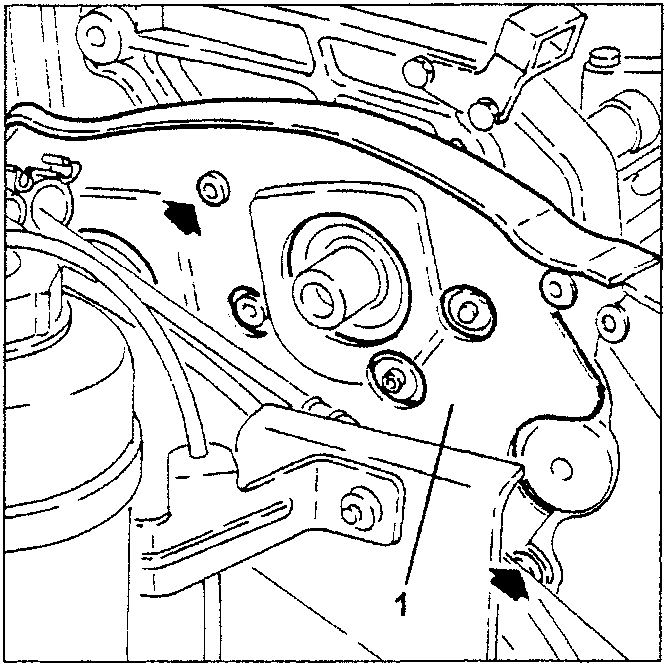

  1. Loosen the fastening screws and remove the right-hand cylinder head from the timing belt internal guard.
Diagram showing loosening screws on right-hand cylinder head near timing belt internal guard

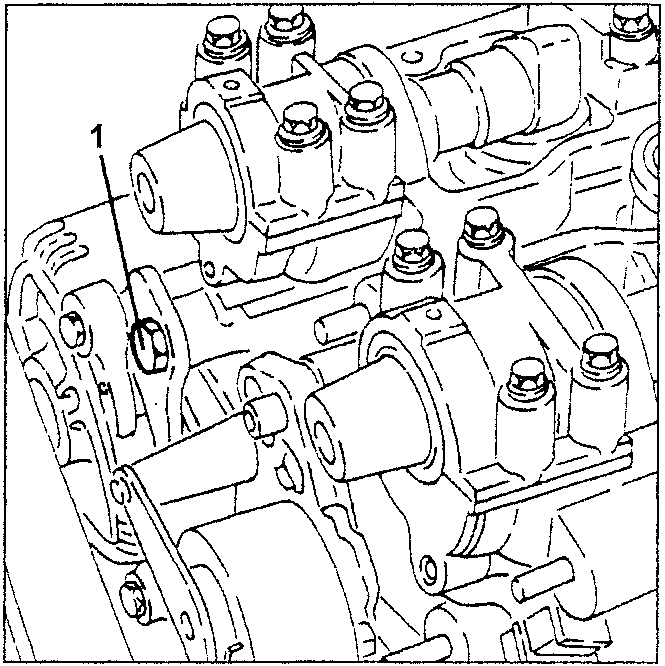

  1. Loosen the upper alternator fastening bracket screw.
Diagram showing upper alternator fastening bracket screw

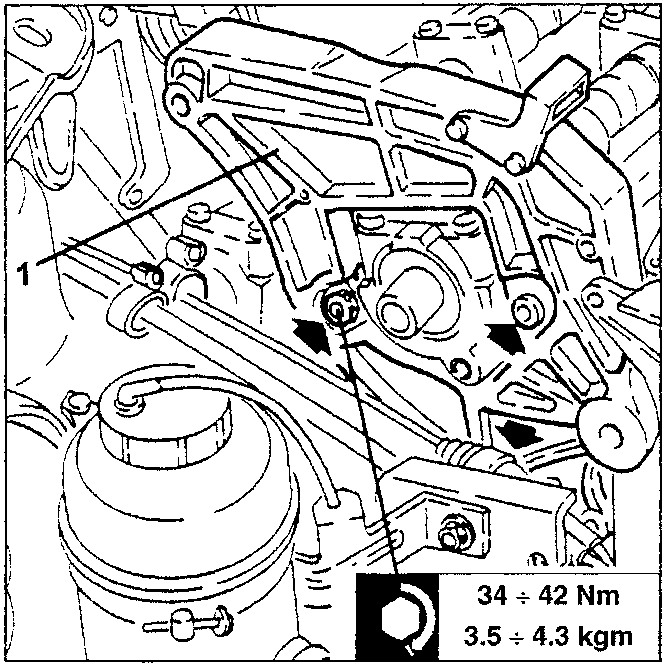

  1. Loosen the fastening nuts and remove the engine shock-proof connecting rod bracket.
Diagram showing loosening nuts on engine shock-proof connecting rod bracket

34 ÷ 42 Nm
3.5 ÷ 4.3 kgm

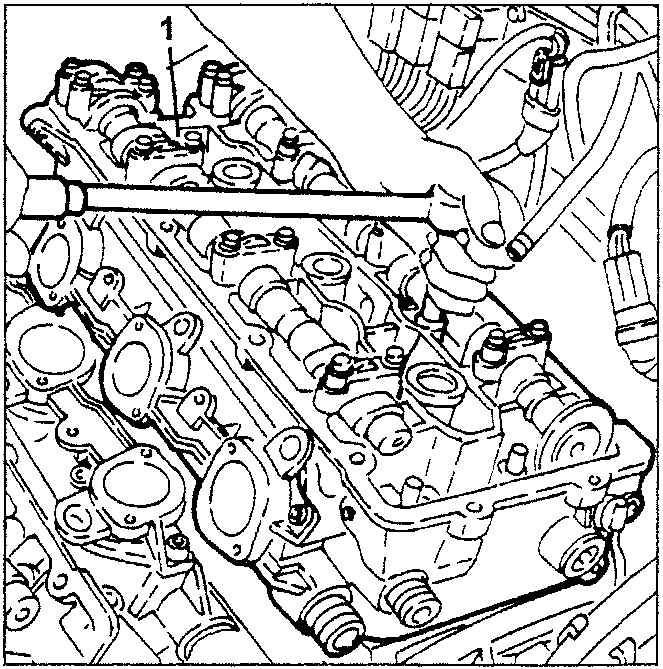

  1. Loosen the fastening nuts and remove the right-hand cylinder head.
    - Remove the respective seal.
Diagram showing loosening nuts on right-hand cylinder head with tool
