Cylinder heads (page 2 of 12)

Make

Alfa Romeo

Model

GTV / Spider GTV and Spider (916) Factory Service Manual

Year

1995–2000

Section

Operations in vehicle (24V)

Variants – 3.0 V6 24VCylinder heads · page 2 of 12

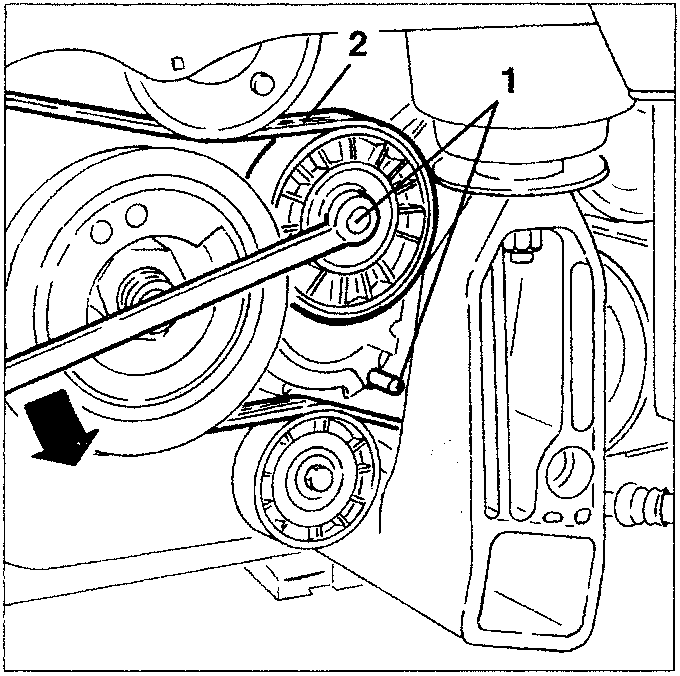

1. Using a wrench on the fastening screw of the belt tensioner pulley, overcome the force of the automatic belt tensioner and lock it in this position (belt slack) inserting the special peg as illustrated.
2. Prise and remove the auxiliary components drive belt.

1. Part 1
2. Part 2

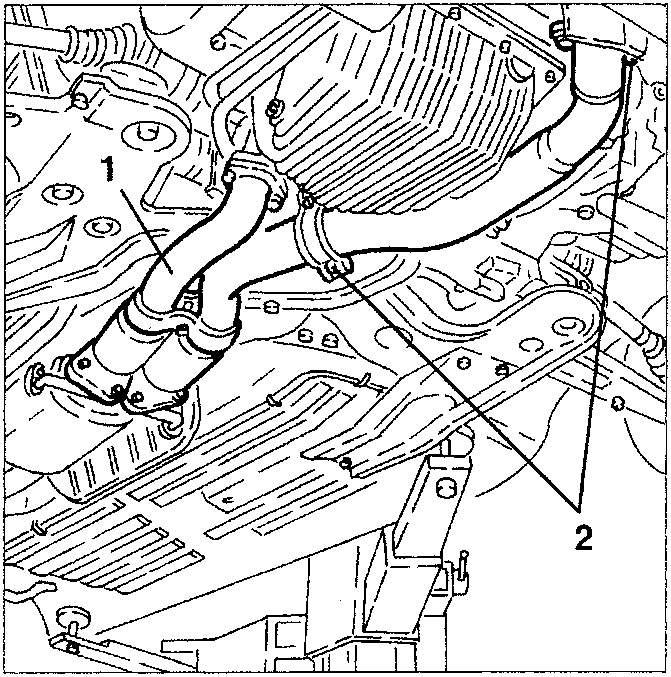

1. Remove the front section of the exhaust pipe only of the right cylinder head.
2. Disconnect the front section of the exhaust pipe from the left cylinder head and from the intermediate support clamp.

1. Part 1
2. Part 2

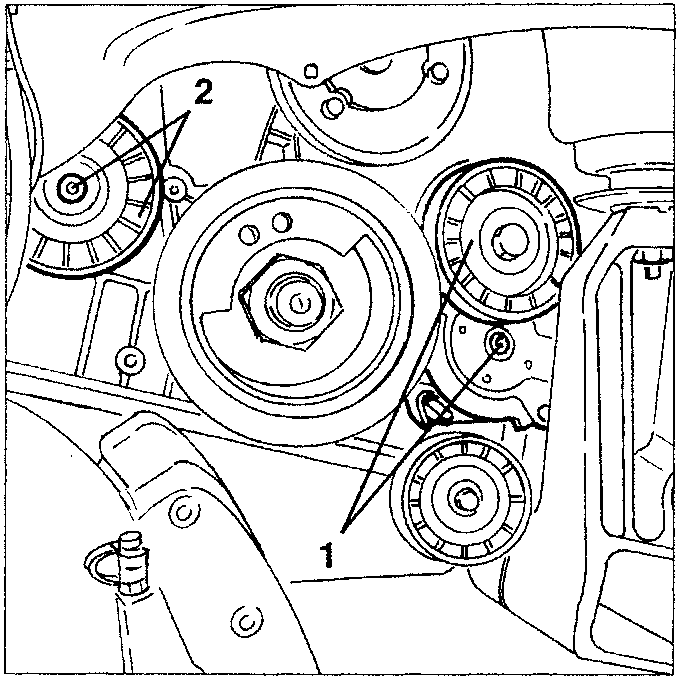

1. Slacken the fastening screw and remove the guide pulley for the auxiliary components drive belt.
2. Slacken the fastening screw and remove the auxiliary components guide pulley.

1. Part 1
2. Part 2

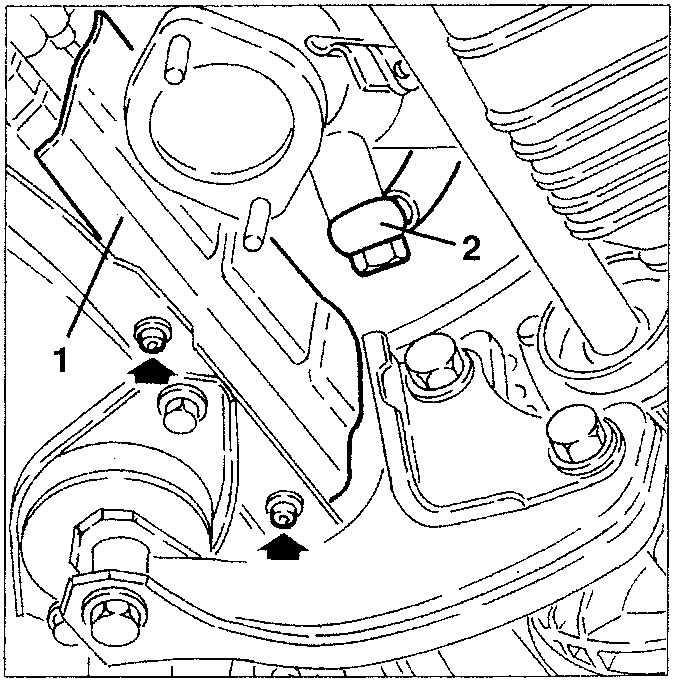

1. Slacken the fastenings and remove the heat guard of the power steering box.
2. Disconnect the fitting of the exhaust gas takeoff pipe for the E.G.R. valve from the right cylinder head exhaust manifold.

1. Part 1
2. Part 2
