Alfa Romeo GTV and Spider (916) Factory Service Manual (1995-2000)12 · Variants – 3.0 V6 24V
12 · General

Cylinder heads (page 7 of 12)

Make
Alfa Romeo
Model
GTV / Spider GTV and Spider (916) Factory Service Manual
Year
1995–2000
Section
Operations in vehicle (24V)
Variants – 3.0 V6 24VCylinder heads · page 7 of 12
  1. Disconnect the coolant fluid inlet pipe from the throttle body.
  2. Disconnect the vacuum takeoff pipe for the E.G.R. modulating solenoid valve from the intake box.
  3. Disconnect the fuel pressure regulator vacuum take off pipe from the intake box.

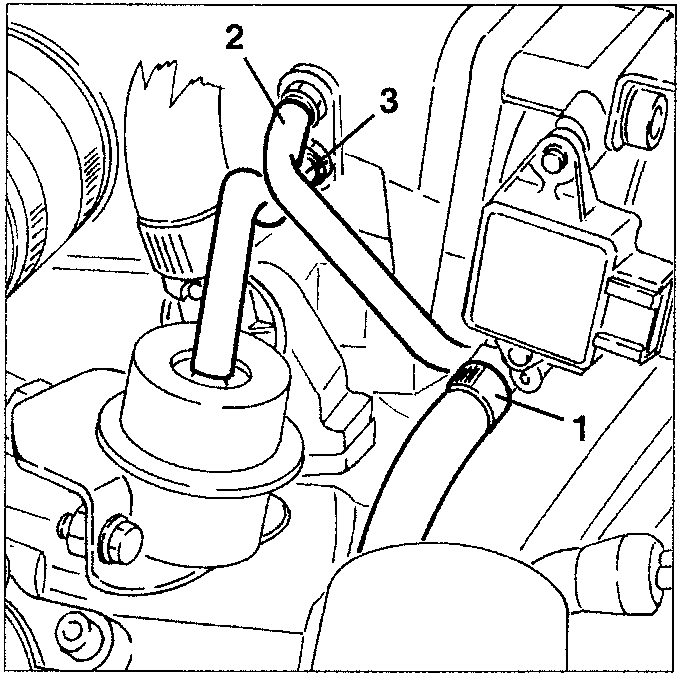

Diagram showing disconnection points: 1 = fuel pressure regulator vacuum takeoff pipe, 2 = E.G.R. modulating solenoid valve vacuum takeoff pipe, 3 = coolant fluid inlet pipe from throttle body.
  1. plastic cover protecting the relays, fuses and electrical connections.

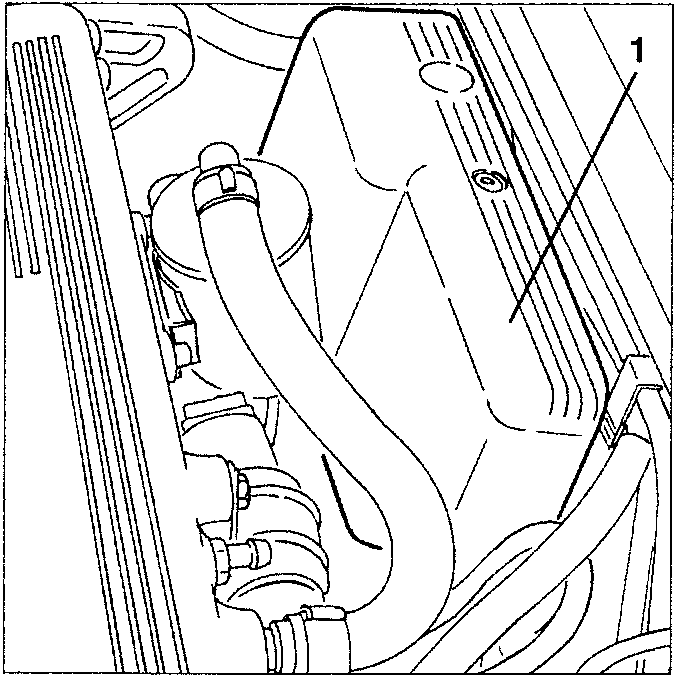

Diagram showing removal of plastic cover protecting relays, fuses and electrical connections.
  1. Slacken the fastenings and remove the heat guard.

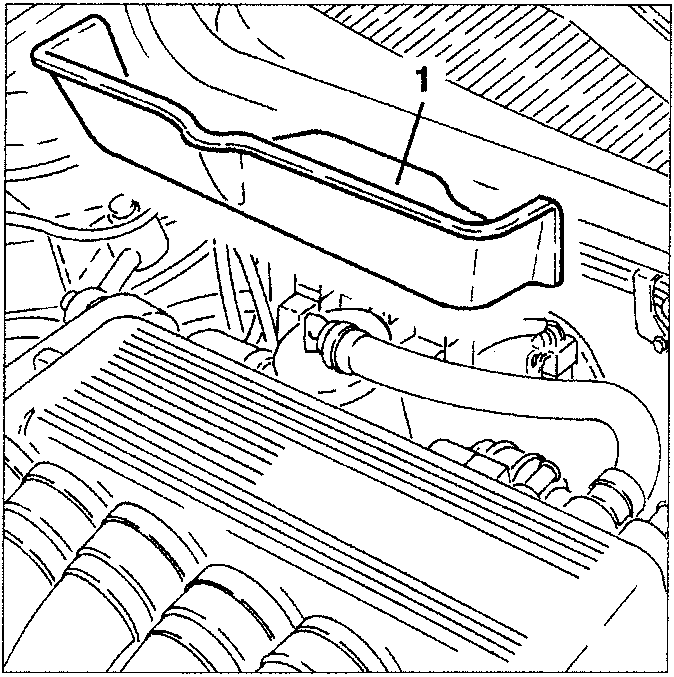

Diagram showing removal of heat guard.

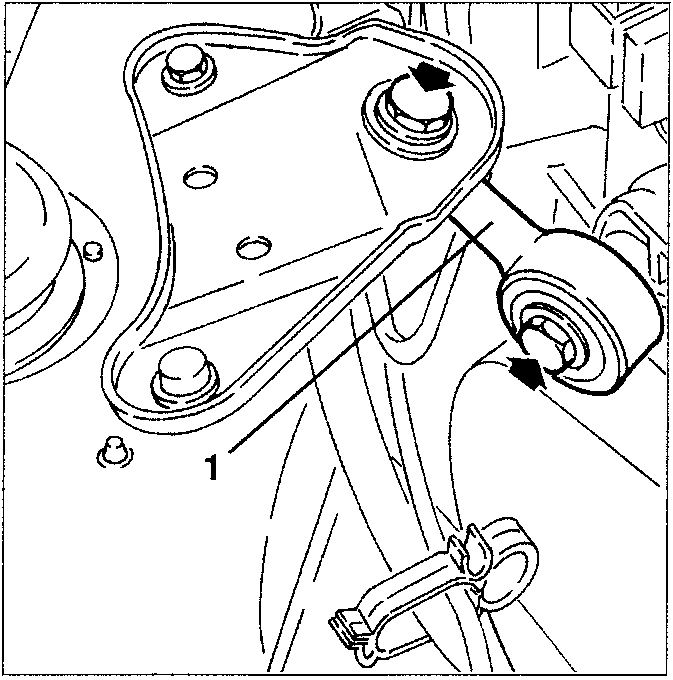

  1. Slacken the fastening screws and remove the engine stay rod.
Diagram showing removal of engine stay rod.
