Alfa Romeo GTV and Spider (916) Factory Service Manual (1995-2000)12 · Variants – 3.0 V6 24V
12 · General

Cylinder heads (page 9 of 12)

Make
Alfa Romeo
Model
GTV / Spider GTV and Spider (916) Factory Service Manual
Year
1995–2000
Section
Operations in vehicle (24V)
Variants – 3.0 V6 24VCylinder heads · page 9 of 12

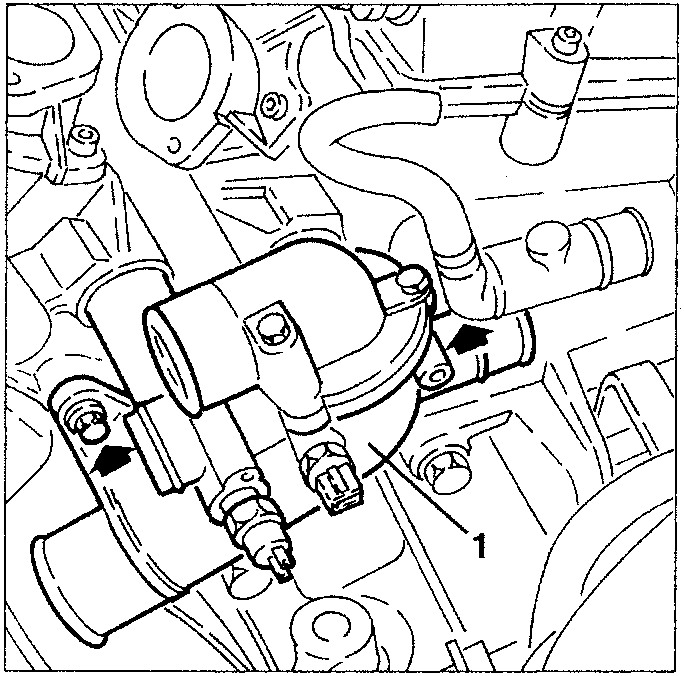

  1. Slacken the fastening screws and remove the thermostatic cup.
Engine diagram showing thermostatic cup with arrows indicating screw locations

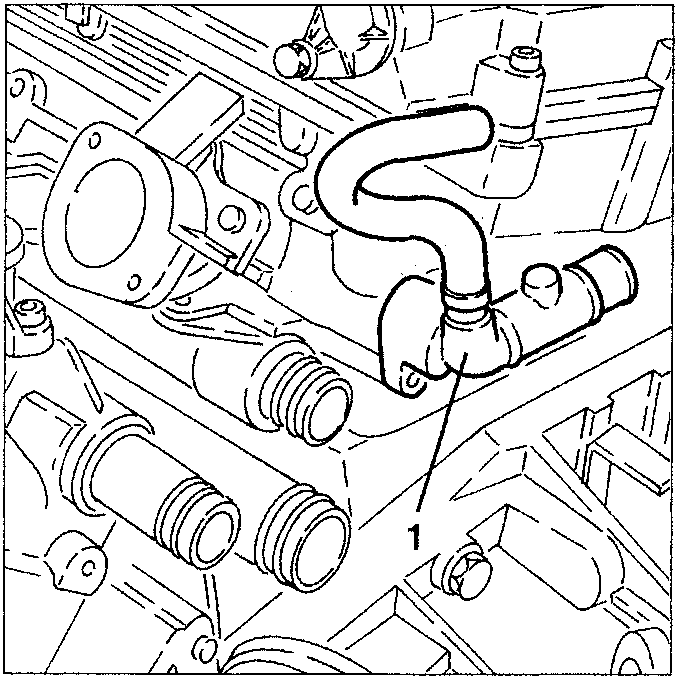

  1. Withdraw and remove the fitting for the coolant fluid delivery pipe to the climate control system heater.
Engine diagram showing coolant delivery pipe fitting

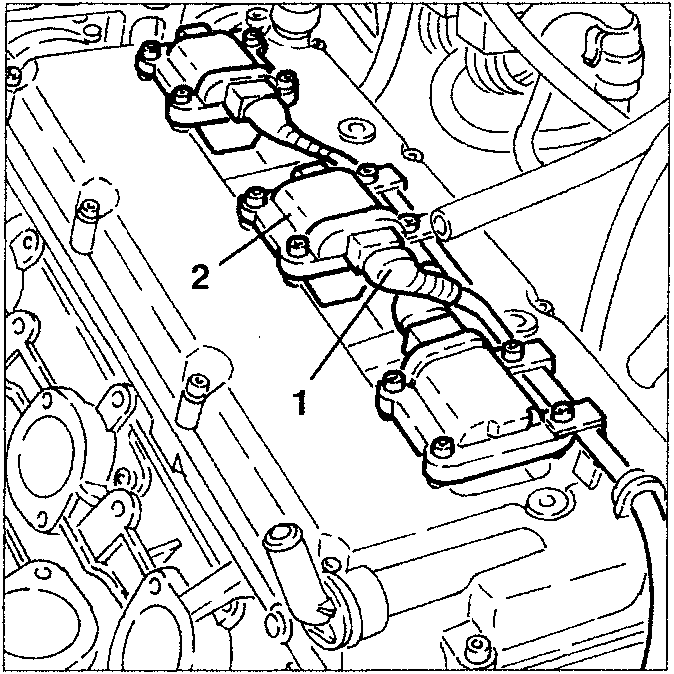

  1. Disconnect the electrical connections from the ignition coils of the right cylinder head, then move the wiring aside.
Engine diagram showing ignition coils on right cylinder head

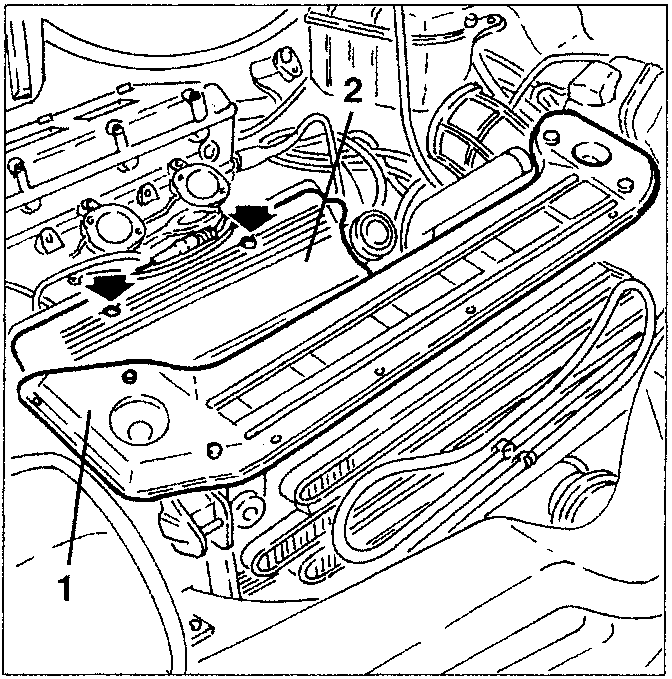

  1. Slacken the fastening screws and remove the upper radiator crossmember.
Engine diagram showing upper radiator crossmember and left cylinder head ignition coil cover
  1. Slacken the fastening screws and remove the right cylinder head ignition coils.
  2. Slacken the fastening screws and remove the left cylinder head ignition coil cover.
