Alfa Romeo GTV and Spider (916) Factory Service Manual (1995-2000)12 · Variants – 3.0 V6 24V
12 · General

Cylinder heads (page 10 of 12)

Make
Alfa Romeo
Model
GTV / Spider GTV and Spider (916) Factory Service Manual
Year
1995–2000
Section
Operations in vehicle (24V)
Variants – 3.0 V6 24VCylinder heads · page 10 of 12

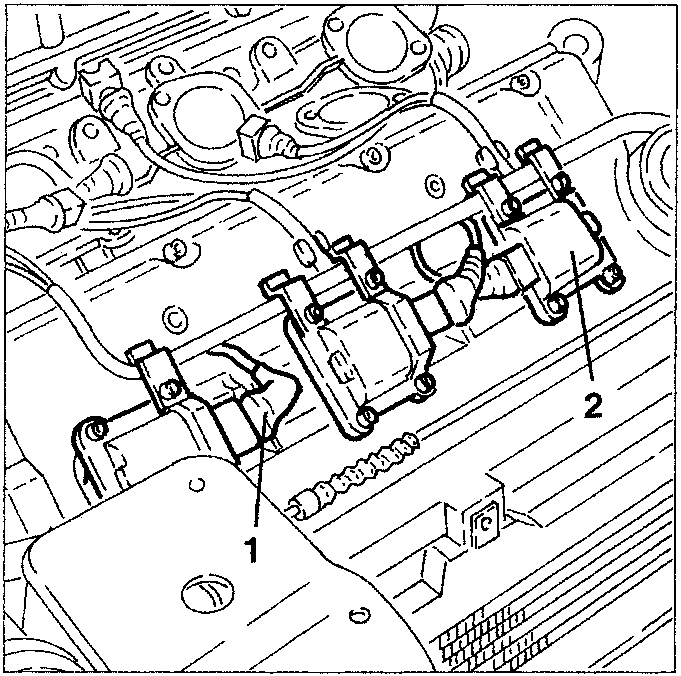

  1. Disconnect the electrical connections from the left cylinder head ignition coils.
  2. Slacken the fastening screws and remove the left cylinder head ignition coils.
Engine diagram showing ignition coils and wiring

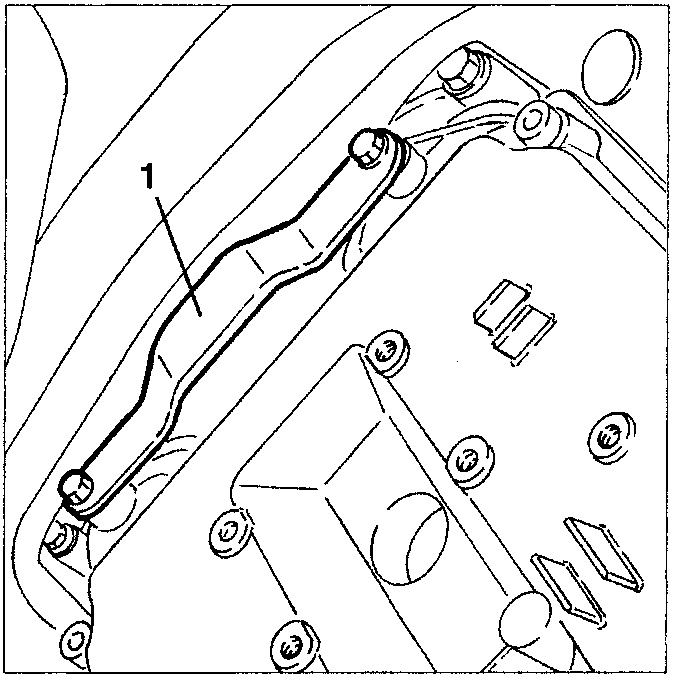

  1. Slacken the fastening screws and remove the, bracket complete with threaded nut for fastening the timing gear belt upper guard from the left cylinder head.
Engine diagram showing timing gear belt upper guard removal

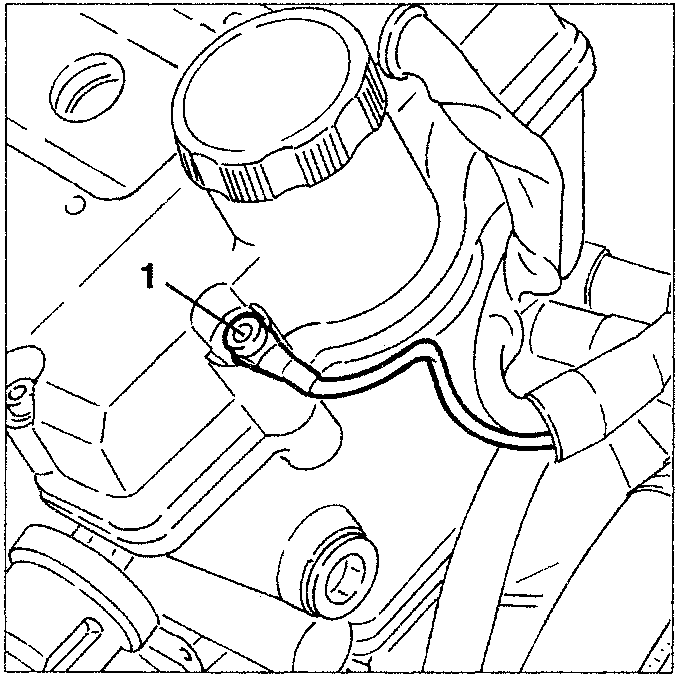

  1. Disconnect the earth cable from the left cylinder head, then move aside the wiring.
Engine diagram showing earth cable disconnection

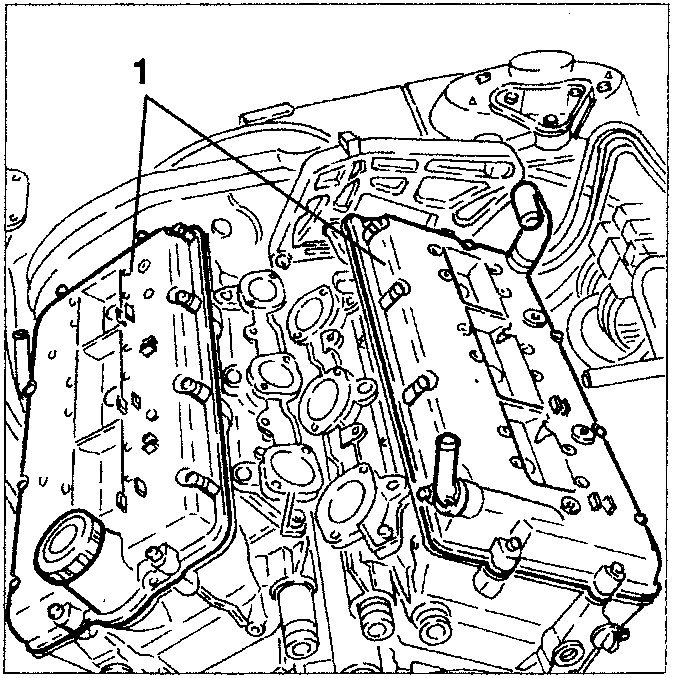

  1. Slacken the fastening screws and remove the cylinder head covers with their seals.
Engine diagram showing cylinder head covers removal
