Cylinder heads (page 8 of 12)

Make

Alfa Romeo

Model

GTV / Spider GTV and Spider (916) Factory Service Manual

Year

1995–2000

Section

Operations in vehicle (24V)

Variants – 3.0 V6 24VCylinder heads · page 8 of 12

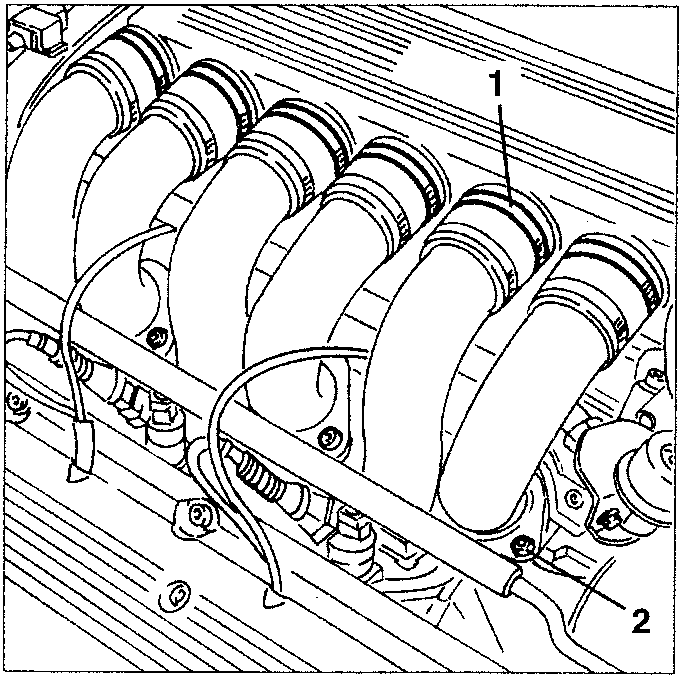

1. Slacken the clamps fastening the air ducts to the intake box.
2. Slacken the screws fastening cylinder head supply ducts.

1. air duct
2. screw

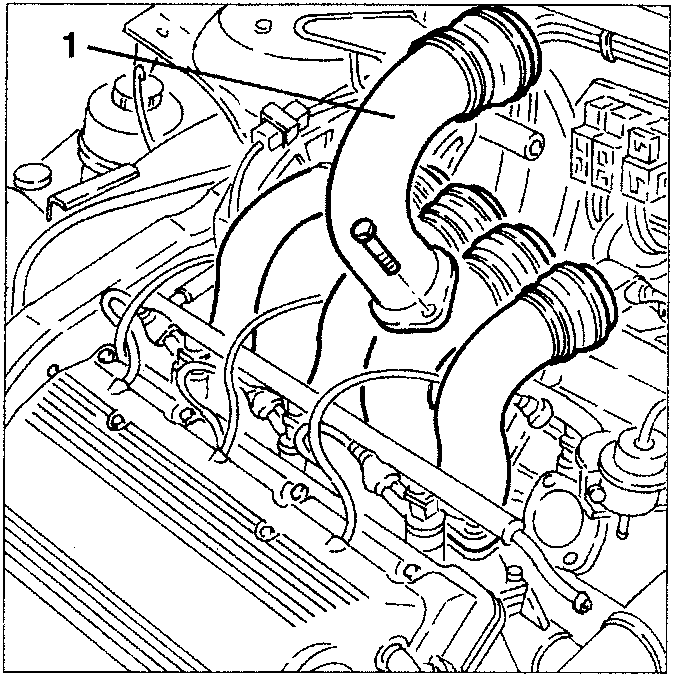

1. Completely slacken the fastening screws loosened previously and remove the intake ducts.

• Remove the corresponding seals.

1. intake duct

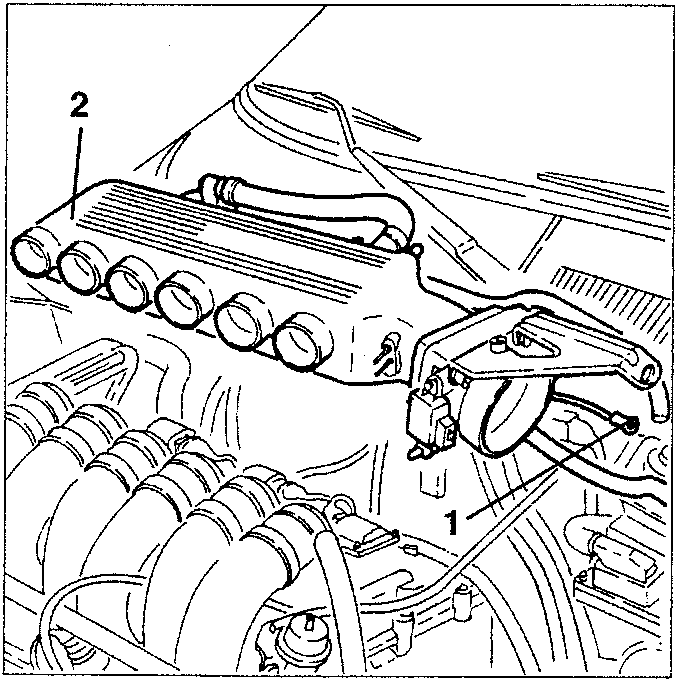

1. Disconnect the earth cable (rear) from the intake box.
2. Slacken the two fastening screws and remove the intake box complete.

1. earth cable
2. intake box

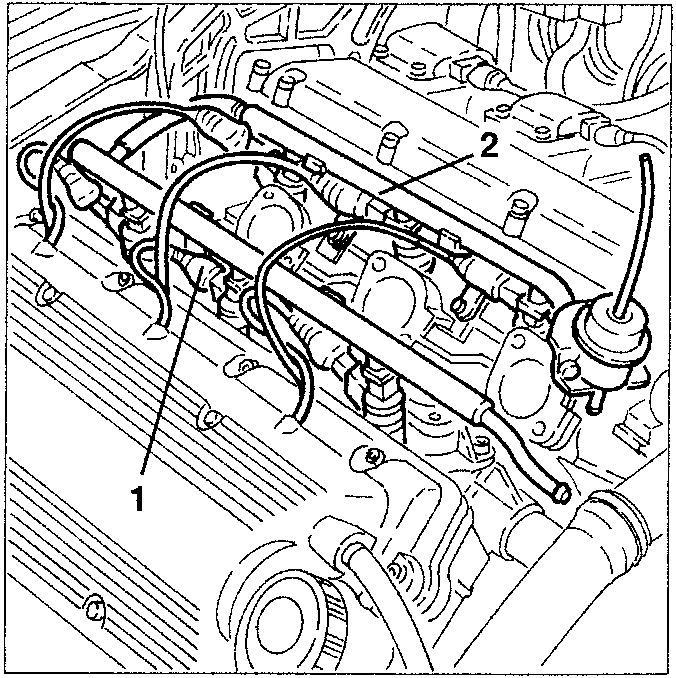

1. Disconnect the injector electrical connections.
2. Slacken the fastening screws and remove the fuel distributor manifold complete.

1. injector electrical connection
2. fuel distributor manifold
